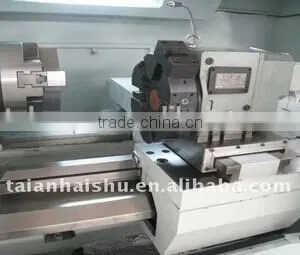

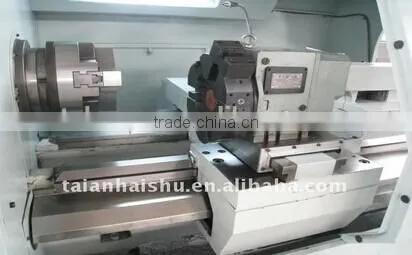

Large Sized Machine Tools, Heavy Duty Cnc Lathe,NEW MODEL

Name: Large Sized Machine Tools, Heavy Duty Cnc Lathe,NEW MODEL
Brand: HAISHU
SKU: 128457585

US$ 27,500 - 28,000 MOQ: 1 Set

Key Specifications

CNC Machining or Not:

CNC Machining

Type:

Drilling, Milling, Rapid Prototyping, Turning, Wire EDM

Material Capabilities:

Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys

Taian Haishu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

CNC Machining or Not CNC Machining

Type Drilling, Milling, Rapid Prototyping, Turning, Wire EDM

Material Capabilities Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys

Micro Machining or Not Not Micro Machining

Place of Origin Shandong, China

Model Number CJK6163B-2

Brand Name HAISHU

CJK6163B-2/CJK6180B-2 CNC LATHE

1.Technical parameters

Item	Project name	Technical paramaters
		CJK6163B-2	CJK6180B-2
technical specifications	Max.swiming over the bed dia. (mm)	Φ630	Φ800
	Max.swiming over pallet(mm)	Φ350	Φ500
	Max.the workpiece length(mm)	1000/1500/3000
Main transmission	Main transmission form	Three handle to speed ; frequency conversion stepless
	Number of spindle speeds	stepless
	Range of spindle speed(r/min)	25~800
	The form of the spindle head	C11
	Spindle taper hole	1:20
	Spindle bore(mm)	Φ100
	Main motor power(kw)	11kw
Feed system	Turret maximum stroke(mm)	X - axis: 500 Z - axis:1200,1650,3100
	Fast-moving feed(mm/min)	X - axis:4000 Z - axis:5000
	Repeat positioning accuracy(mm)	X - axis:0.01 Z - axis:0.015
	Workpiece accuracy	IT6-IT7
	Workpiece surface roughness	Ra1.6
tailstock	Dia. of tailstock quill(mm)	100
	Tailstock quill stroke(mm)	250
	Taper of tailstock quill	MT6
Tool post	Standard accessories	4 station electric tool
	Opinional accessories	Horizontal 6 station electric turret
	Repeat positioning accuracy(mm)	0.01
	Section of turning tool(mm)	30*30
Size and weight	The size of the machine (lengthwidthheight)(mm)	3200/3700/520018201780
	Net weight of the machine(kg)	3400,3700,5200
