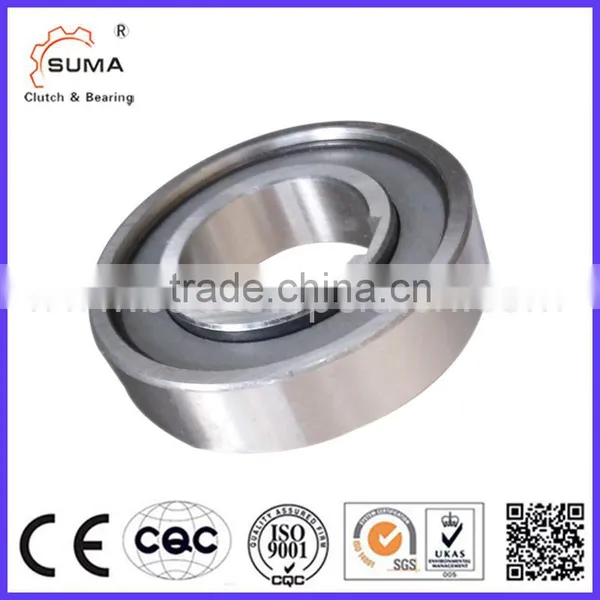

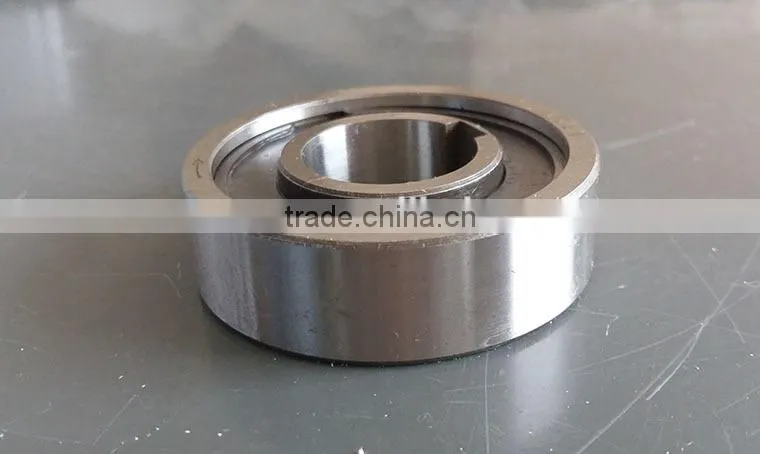

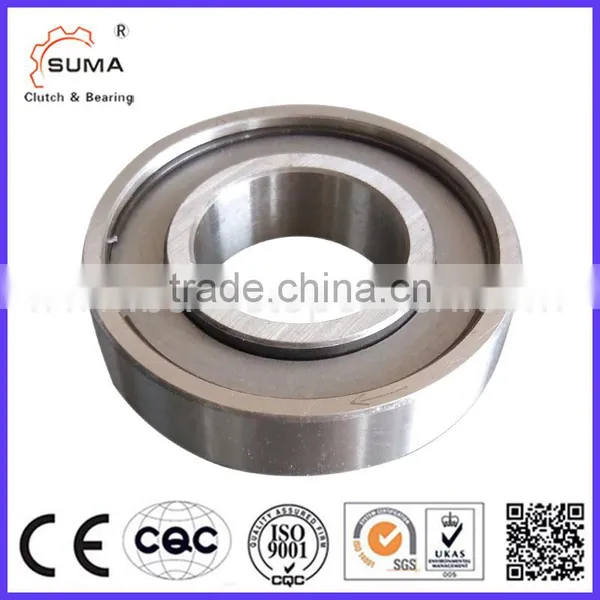

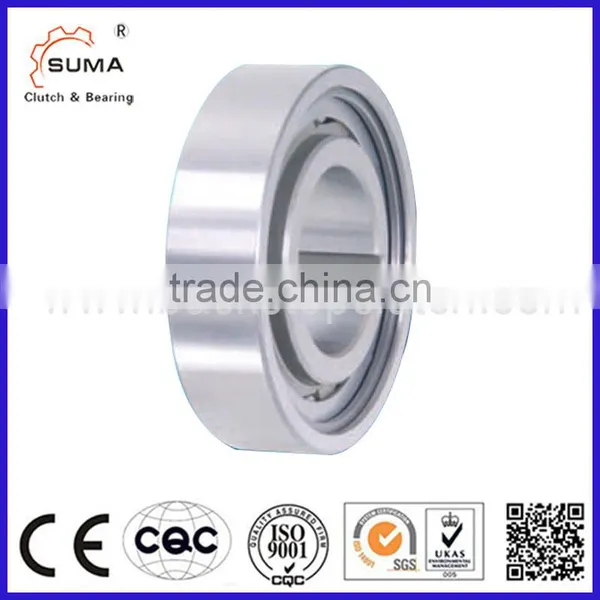

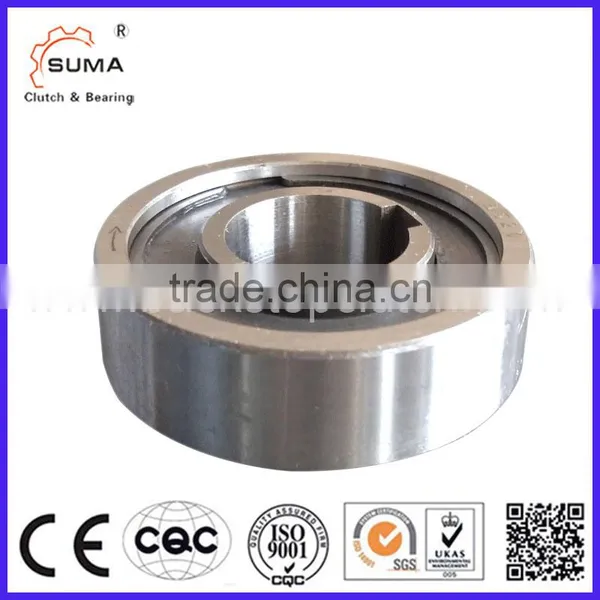

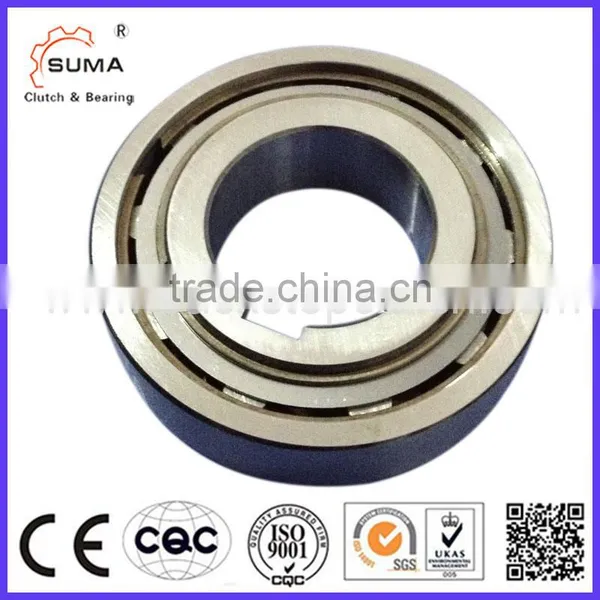

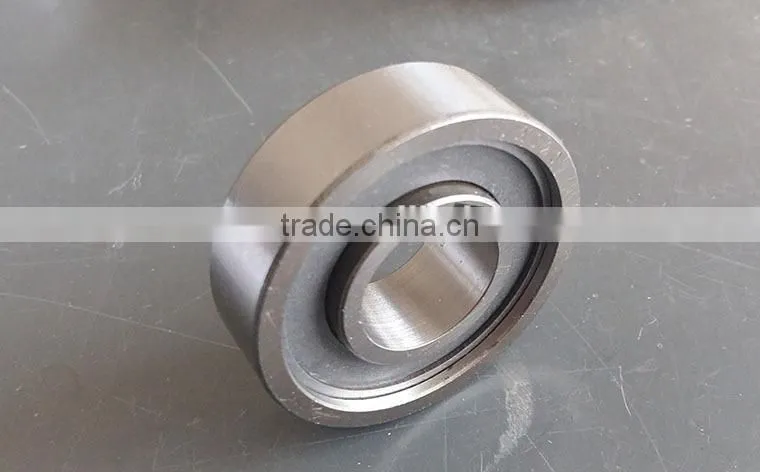

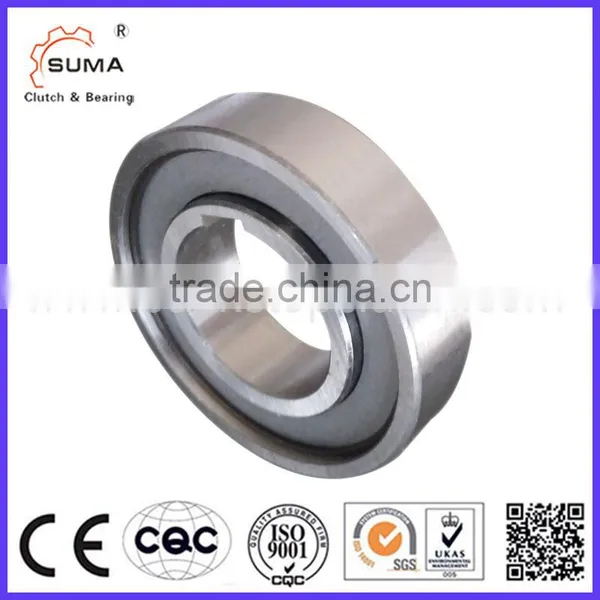

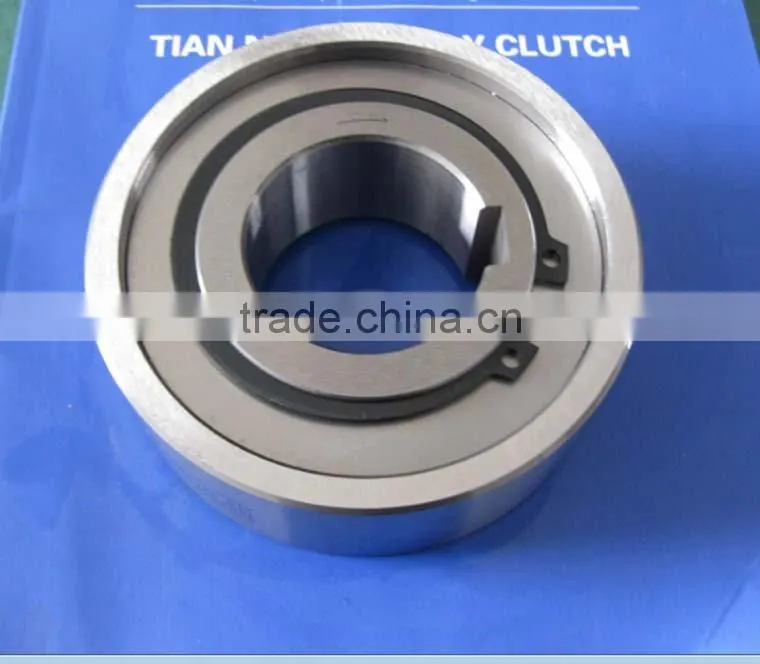

FCN20R single direction roller bearing with high precision
Features of single direction roller bearing
- Internal freewheels FCN...R is a roller type freewheel non-bearing supported.
The outer ring is pressed into the customer housing. This makes compact, space-saving fitting solutions possible.
Product name |
single direction roller bearing |
Model |
FCN20R |
Material |
GCr15 |
Torque capacity |
40Nm |
Inner diameter |
20mm |
Outer diameter |
47mm |
Thickness |
14mm |
Weight |
0.12kg |
Structure |
Roller type |
Application |
roof brush for car washing machine |
Package |
Wooden box, tube, pulley, etc |
Payment terms |
TT. L/C, D/A,D/P,Western Union |
Delivery time |
in stock, can be delivered at any time |
Catalogue of single direction roller bearing for your choice
Tips: The maximum transmissible torque is 2 times the specified nominal torque.

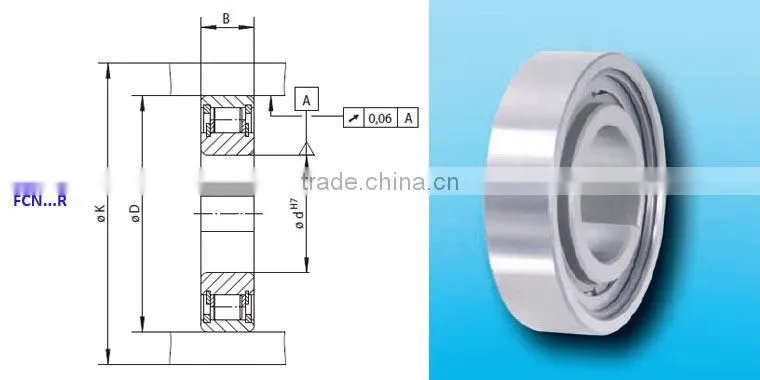

| Freewheel Size | Type | Nominal torque | Max Inner ring freewheels | Max Outer ring freewheels | Bore d | B | D | K | Weight |
| Nm | overruns min-1 | overruns min-1 | mm | mm | mm | mm | kg | ||
| FCN 8 | R | 3.2 | 4300 | 6 700 | 8 | 8 | 24 | 28 | 0,02 |
| FCN 10 | R | 7.3 | 3500 | 5 300 | 10 | 9 | 30 | 35 | 0,03 |
| FCN 12 | R | 11 | 3200 | 5 000 | 12 | 10 | 32 | 37 | 0,05 |
| FCN 15 | R | 12 | 2800 | 4 400 | 15 | 11 | 35 | 40 | 0,08 |
| FCN 20 | R | 40 | 2200 | 3 300 | 20 | 14 | 47 | 54 | 0,12 |
| FCN 25 | R | 50 | 1900 | 2 900 | 25 | 15 | 52 | 60 | 0,15 |
| FCN 30 | R | 90 | 1600 | 2 400 | 30 | 16 | 62 | 70 | 0,24 |
| FCN 35 | R | 135 | 1350 | 2 100 | 35 | 17 | 72 | 80 | 0,32 |
| FCN 40 | R | 170 | 1200 | 1 900 | 40 | 18 | 80 | 90 | 0,40 |
| FCN 45 | R | 200 | 1150 | 1 750 | 45 | 19 | 85 | 96 | 0,45 |
| FCN 50 | R | 220 | 1050 | 1 650 | 50 | 20 | 90 | 100 | 0,50 |
| FCN 60 | R | 420 | 850 | 1 350 | 60 | 22 | 110 | 122 | 0,80 |
| FCN 80 | R | 840 | 690 | 1 070 | 80 | 26 | 140 | 155 | 1,40 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the single direction roller bearing?
A: Usually single direction roller bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of single direction roller bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the single direction roller bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
