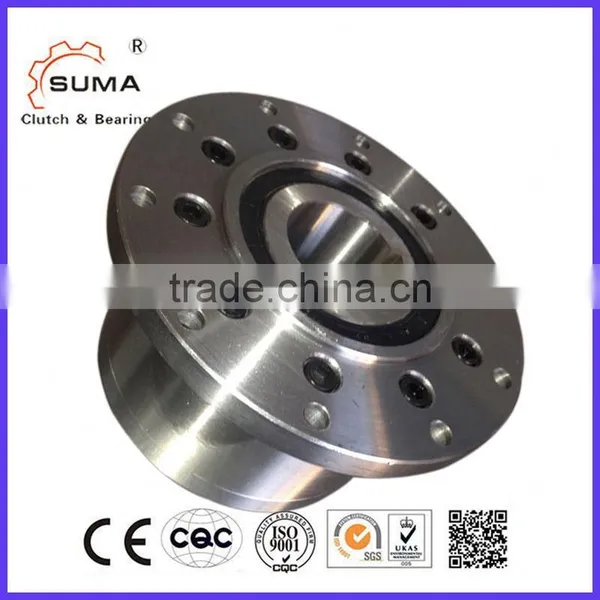

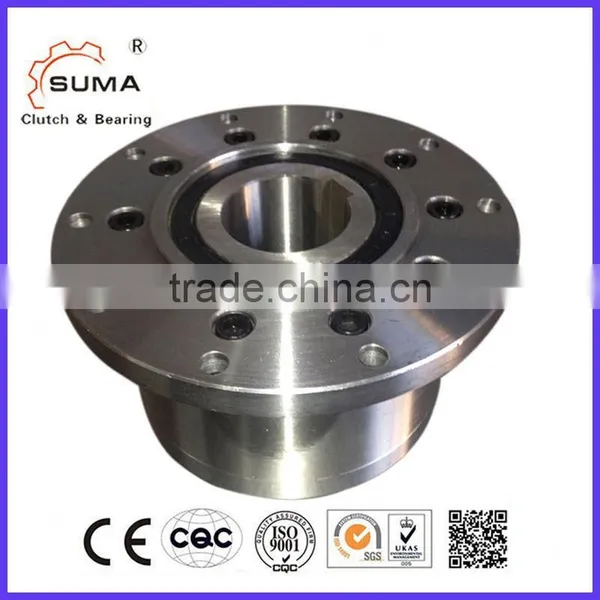

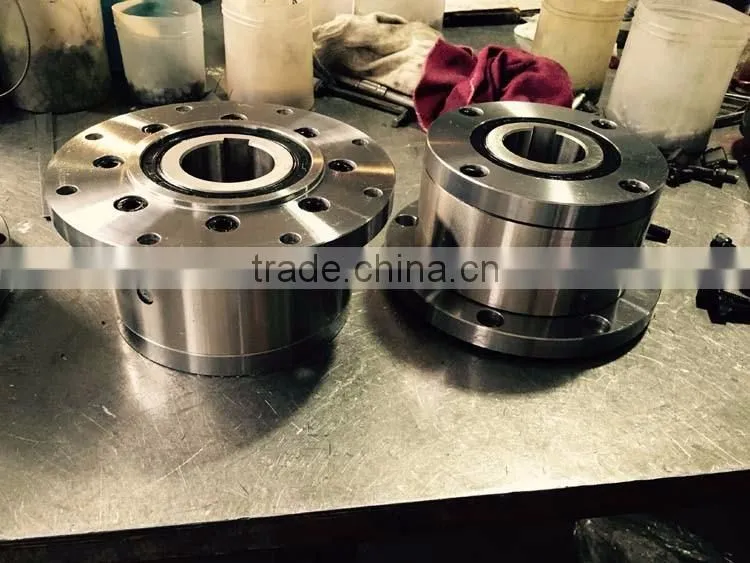

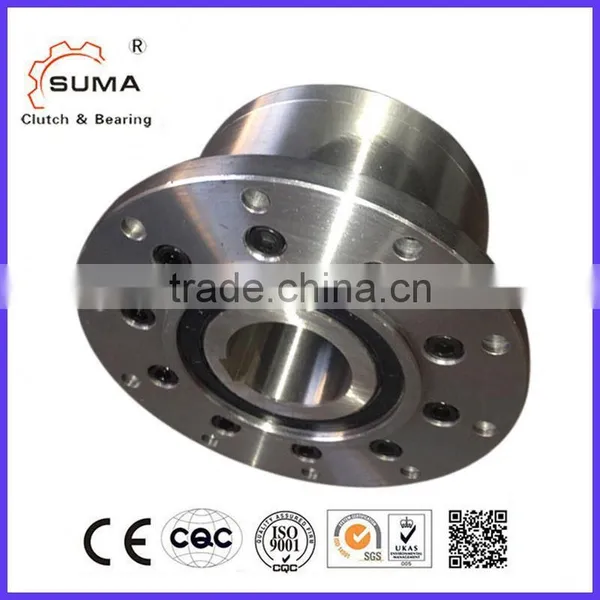

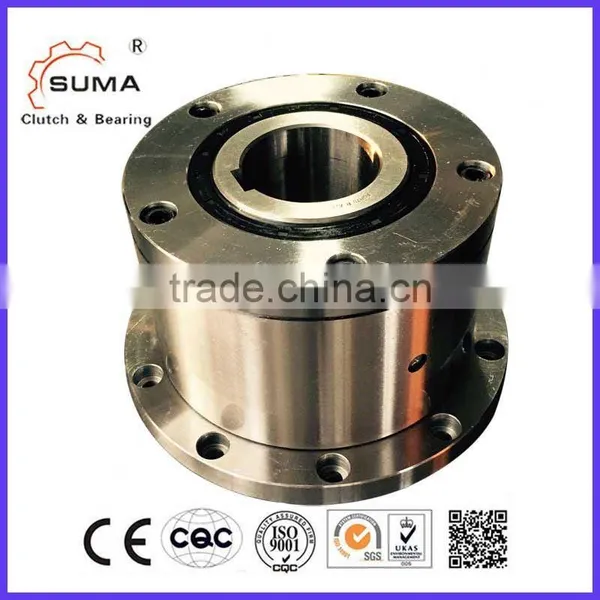

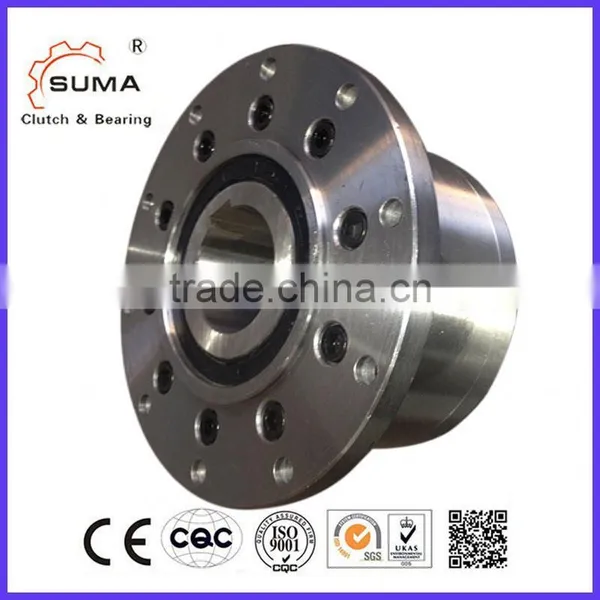

ALM35F2D2 Freewheel Roller Clutch One-Way Bearings

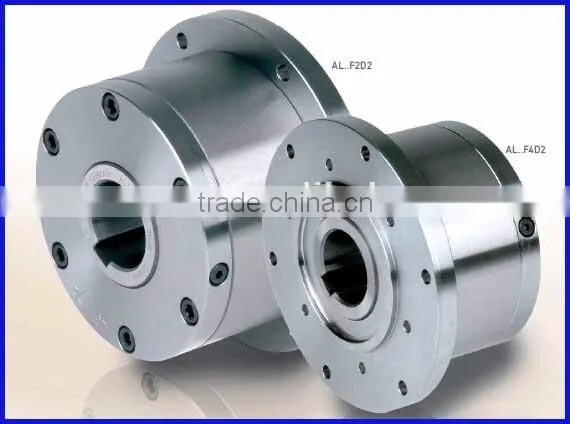

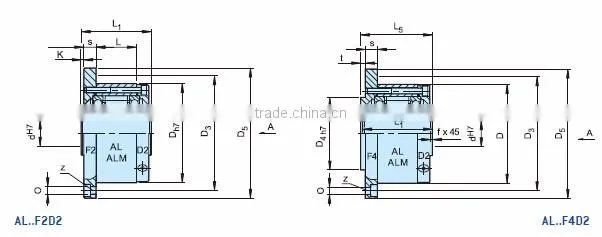

Structure of AL...F2D2 Backstop clutch
Types AL..F2D2/F4D2 are roller type freewheels, self contained, sealed and bearing supported, using two 160.. series bearings. Units are delivered oil lubricated.
Primarily used as overrunning or indexing clutches, the cover combination is chosen according to the type of drive, as shown overleaf. D2 cover is used to close the unit. It is equipped with two screws for oil filling, drain and level. The shaft seal is a V-ring type. Cover and seal have been designed to be oil proof with minimum drag torque.
Available Shaft Diameter: 12-250mm
| Specification |
|
| Model | ALM35F2D2 |
| Materail |
GCr15 |
| Shaft Diameter |
35mm |
| Outer diameter |
110mm |
| Height |
74mm |
| Torque capacity |
838Nm |
| Inner race overrunning speed | 900 r/min |
| Outer race overrunning speed | 2400 r/min |
| Application | Backstop / Overrunning |
| Package | Carton package / Wooden package |
| Delivery time | 5-7 days |
| Payment terms | TT, L/C, D/P, D/A, Western Union, Paypal |
Catalogue of al...F2D2 backstop clutch for your choice
| Type | Size | Overrunning speed | Weight | ||||||||||
|
AL..F2D2 AL...F4D2 |
dH7 | KMS | TKN | nimax1) | namax2) | dKH7 | D | L1 | D7 | L7 | L9 | b | |
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| 12 | 4 | 50 | 2500 | 6000 | 7…35 | 62 | 42 | 78 | 40 | 100 | 18 | 2.1 | |
| 15 | 6.3 | 79 | 1900 | 6000 | 12…40 | 68 | 52 | 90 | 45 | 116 | 20 | 2.7 | |
| 20 | 10 | 125 | 1600 | 5600 | 10…45 | 75 | 57 | 117 | 48 | 123.5 | 17 | 3.8 | |
| 25 | 10 | 125 | 1400 | 4500 | 10…45 | 90 | 60 | 117 | 48 | 126.5 | 17 | 4.4 | |
| 30 | 16 | 200 | 1300 | 4100 | 10…55 | 100 | 68 | 129 | 52 | 140 | 19 | 5.9 | |
| 35 | 25 | 313 | 1100 | 3800 | 15…55 | 110 | 74 | 134 | 57 | 155 | 22 | 8.1 | |
| 40 | 40 | 500 | 950 | 3400 | 20…60 | 125 | 86 | 155 | 61 | 173 | 26 | 11.4 | |
| 45 | 63 | 788 | 900 | 3200 | 20…70 | 130 | 86 | 175 | 67 | 186 | 30 | 13.3 | |
| 50 | 100 | 1250 | 850 | 2800 | 25…75 | 150 | 92 | 196 | 75 | 208.5 | 35 | 19.1 | |
| 55 | 100 | 1250 | 720 | 2650 | 25…75 | 160 | 104 | 196 | 75 | 216.5 | 35 | 20.4 | |
| 60 | 160 | 2000 | 680 | 2450 | 30…80 | 170 | 114 | 223 | 82 | 243 | 41 | 27.1 | |
| 70 | 250 | 3125 | 580 | 2150 | 35…90 | 190 | 134 | 252 | 89 | 277.5 | 47 | 40.4 | |
| 80 | 400 | 5000 | 480 | 1900 | 45…100 | 210 | 144 | 290 | 97 | 305 | 56 | 57 | |
| 90 | 630 | 7875 | 380 | 1700 | 60…120 | 230 | 158 | 330 | 116 | 346.5 | 64 | 87 | |
| 100 | 1000 | 12500 | 350 | 1450 | 75…140 | 270 | 182 | 378 | 140 | 386 | 75 | 131 | |
| 120 | 1600 | 20000 | 250 | 1250 | 90…160 | 310 | 202 | 432 | 160 | 430 | 85 | 196 | |
| 150 | on request | ||||||||||||
| 200 | |||||||||||||
| 250 | |||||||||||||
|
ALM..F2D2 ALM...F4D2 |
25 | 16 | 200 | 1100 | 2800 | 12…50 | 90 | 60 | 117 | 52 | 132.5 | 19 | 4.4 |
| 30 | 25 | 313 | 1000 | 2500 | 15…55 | 100 | 68 | 129 | 57 | 150 | 22 | 5.9 | |
| 35 | 40 | 500 | 900 | 2400 | 18…60 | 110 | 74 | 134 | 61 | 163 | 26 | 8.1 | |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the AL backstop clutch ?
A: Usually al backstop clutch are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of al backstop clutch from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the al backstop clutch in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
