MZEU80 One Way Roller Clutch Lathe Machine Clutch

MZEU80 One Way Roller Clutch Lathe Machine Clutch thumbnail-1
MZEU80 One Way Roller Clutch Lathe Machine Clutch photo-1
US$ 130 - 157 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Suma
Bore Size:
80,
Outside Diameter:
210,
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Suma
Bore Size 80,
Outside Diameter 210,
Model Number MZEU80 E3+E4

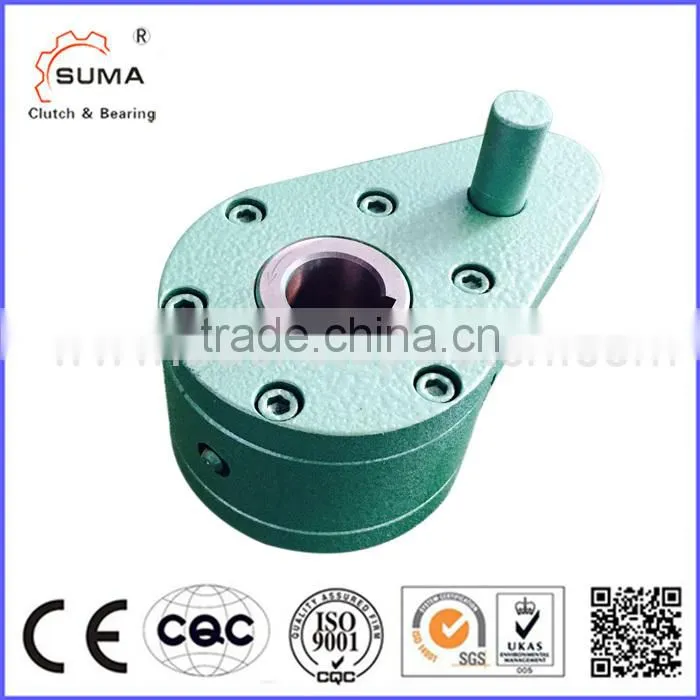

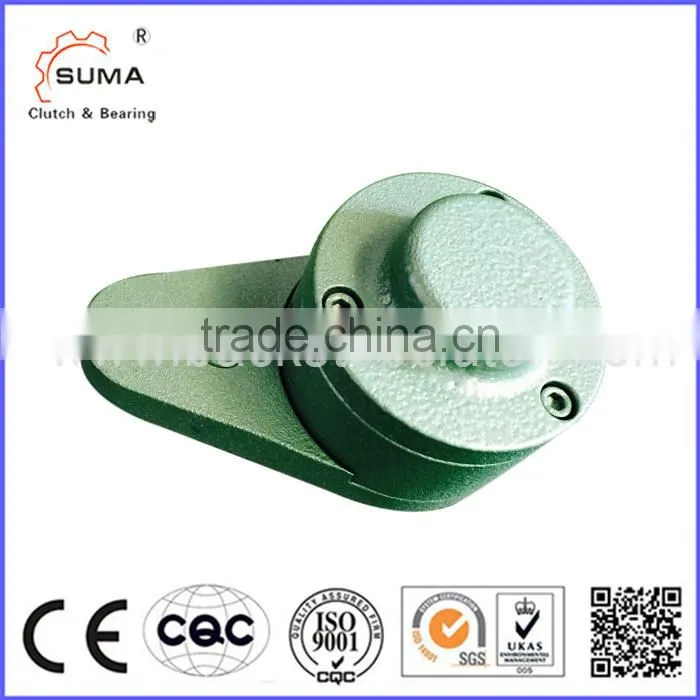

 MZEU80 one way roller clutch lathe machine clutch



Product Description

     MZEU80 one way roller clutch lathe machine clutch    MZEU80 one way roller clutch lathe machine clutch



      MZEU80 one way roller clutch lathe machine clutch
Details
Model MZEU80 E3+E4
Material GCr15
Type CAM
Inner Diameter 80mm
Outer Diameter 210mm
Weight 33.6kg
Lubricant grease(MZEU12-MZEU80),oil(MZEU90-MZEU150)
Width 144mm
Key Way 22x5.4mm
Application reducer,gearbox,other industry machine





Main Technical Specifications

MZEU80 one way roller clutch lathe machine clutch

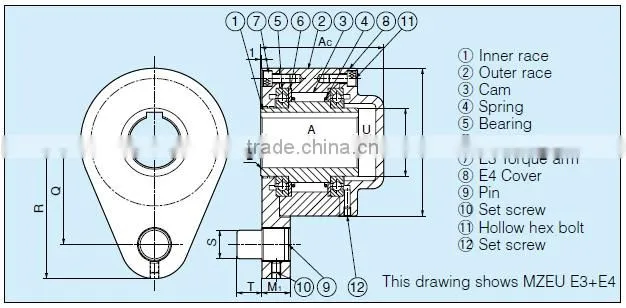

Dimensions(Dimensions in mm)



Model Torque Max. Overrunning Drag Bore Size Keyway A AC B F L M1 Q R S T U Weight
Capacity      Inner Race Outer Race Torque
N·m r/min r/min N·m H7 Inner Race     h7   C             (kg)
MZEU 12 (K) E3+E4 60 2,000 1,000 0.2 12 4X1.8 42 53 62 20 0.8 13.5 44 59 10 10 6 1
MZEU 15 (K) E3+E4 100 1,800 900 0.2 15 5X2.3 52 68 68 25 0.8 13.5 47 62 10 10 10 1.5
MZEU 20 (K) E3+E4 245 1,600 700 0.29 20 6X2.8 57 73 75 30 0.8 15 54 72 12 11 10 2
MZEU 25 (K) E3+E4 425 1,600 600 0.33 25 8X3.3 60 76 90 40 0.8 19 62 84 16 14 10 2.9
MZEU 30 (K) E3+E4 735 1,500 500 0.39 30 8X3.3 68 84 100 45 1 19 68 92 16 14 10 4.3
MZEU 35 (K) E3+E4 1,015 1,400 300 0.49 35 10X3.3 74 92 110 50 1 22 76 102 20 18 12 5.3
MZEU 40 (K) E3+E4 1,350 1,400 300 0.59 40 12X3.3 86 105 125 55 1.3 22 85 112 20 18 12 7.8
MZEU 45 (K) E3+E4 1,620 1,400 300 0.69 45 14X3.8 86 108 130 60 1.3 25 90 120 25 22 15 9.6
MZEU 50 (K) E3+E4 2,070 1,300 250 0.79 50 14X3.8 94 113 150 70 1.3 25 102 135 25 22 12 12.1
MZEU 55 (K) E3+E4 2,400 1,300 250 0.88 55 16X4.3 104 126 160 75 1.5 30 108 142 32 25 15 15.2
MZEU 60 (K) E3+E4 2,950 1,200 250 0.98 60 18X 4.4 114 137 170 80 1.5 30 112 145 32 25 15 17.7
MZEU 70 (K) E3+E4 4,210 1,100 250 1.27 70 20X 4.9 134 164.5 190 90 1.8 35 135 175 38 30 22.5 26.5
MZEU 80 (K) E3+E4 5,170 800 200 1.38 80 22X5.4 144 168 210 105 1.8 35 145 185 38 30 16 33.6
MZEU 90 (K) E3+E4 12,000 550 150 3.76 90 25X5.4 158 192 230 120 2 45 155 205 50 40 27 39
MZEU100 (K) E3+E4 17,600 500 130 4.31 100 28X6.4 182 217 270 140 2 45 180 230 50 40 28 67.4
MZEU130 (K) E3+E4 24,500 400 110 5.39 130 32X7.4 212 250 310 160 2.5 60 205 268 68 55 30 100.2
MZEU150 (K) E3+E4 33,800 300 80 6.47 150 36X8.4 246 286 400 200 2.5 60 255 325 68 55 32 194.8



Installation and Usage

1. Model No's. MZEU12 to MZEU80 are pre-greased and require no lubrication. The operational temperature range is -40°C to +40°C. Model No's. MZEU90 to MZEU150 require oil lubrication.
2. We recommend a Shaft tolerance of h7, and the DIN 6885.1 keyway is standard.
3. The clutch is delivered with a Basic type Cam Clutch, E3 torque arm and E4 cover as separate parts.
4. Clean the surface of both ends of the outer race and the contact surface of E3 torque arm and E4 cover.
5. For Model No's. MZEU90 to MZEU150, apply seal adhesive to the surface of the outer race at both ends.
6. Check the direction of rotation and attach the E3 torque arm to the clutch.
7. By installing both the flange and sprocket on the opposite side, the direction of rotation can be changed.
8. When mounting the clutch onto the shaft, apply pressure to inner race but never to the outer race.
9. For Model No's. MZEU12 to MZEU80, before mounting the E4 cover to the clutch attach the end plate with bolts.
10. For Model No's. MZEU90 to MZEU150, before mounting the cover attach the packing and end plate using sealing washers and bolts.



Company Information



Changzhou Suma Precsion Machinery Co.,Ltd

Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology

 MZEU80 one way roller clutch lathe machine clutch





 MZEU80 one way roller clutch lathe machine clutch

Package

 MZEU80 one way roller clutch lathe machine clutch

Application

 MZEU80 one way roller clutch lathe machine clutch

Certifications

MZEU80 one way roller clutch lathe machine clutch

FAQ

Q: Why do we choose your company?

A: We always insist quality firstl. We have our bearing factory, therefore we have advantage in quality control and price.



Q:What is the delivery time?

A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.



Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.



Q: Can you send bearing samples first?

A: Yes, we can send bearing samples to check quality first.
