3 in 1 washing filling capping fruit juice filling machine
We rachel machinery can produce the 3 in 1 fruit juice filling machine/bottling machine according to customer special bottle sample, such as 1.5L, 2L, 2.5L, 3L big bottle, the juice container with handle or not.
Rachel juice filling machine/bottling machine is made of high quality SS304/SS316 stainless steel.Main components are processed precisely by CNC machine tool.The machine adopts advanced photoelectriaity to detect running status.No bottle no filling.
Rachel fruit juice filling machine 3 in 1 is possible to realize manmachine conversation because of applying touch screen for operatio
Main performance:
1) Bottle is entered by air conveyor,the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way.
2) Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw muth,adopting clamping bottleneck way in the whole conveying process.When bottle
type changes,you need to change the board related with bottle diameter .

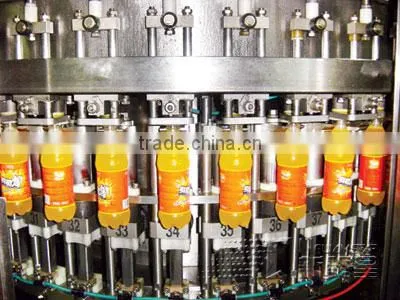

3) Filling adopts cylinder feeding structure,filling vale adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
4) The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head.
5) The PLC and transducer are chosen from international famous brand,such as OMRON,MITSUBISHI and so on.
Technical parameters for water bottling machine:
Model |
CGF16126 |
CGF18186 |
CGF24248 |
CGF323210 |
Heads of washing,filling,sealing |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-10 |
Production capacity |
3000-4000BPH |
5000-7000 |
8000-12000 |
12000-15000 |
Suitable bottle diameter |
φ=50-100mm, H=170mm, 330-2500ml |
φ=50-100mm, H=170mm, 330-2500ml |
φ=50-100mm, H=170mm, 330-2500ml |
φ=50-100mm, H=170mm, 330-2500ml |
Spraying pressure |
0.2-0.25Mpa |
0.2-0.25Mpa |
0.2-0.25Mpa ³ |
0.2-0.25Mpa |
Motor power |
2.2kw |
2.5kw |
3kw |
5.5kw |
Stainless steel |
SS304 |
SS304 |
SS304 |
SS304 |
Electric voltage |
380V50Hz |
380V50Hz |
380V50Hz |
380V50Hz |
PLC |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Frequency converters |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Touch screen |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Circuit contactor |
Siemens |
Siemens |
Siemens |
Siemens |
overall dimension |
2400*1600*2500 |
2500*1800*2500 |
3100*2300*2800 |
3800*2800*2900 |
Weight |
2500kg |
3500kg |
4500kg |
6500kg |
