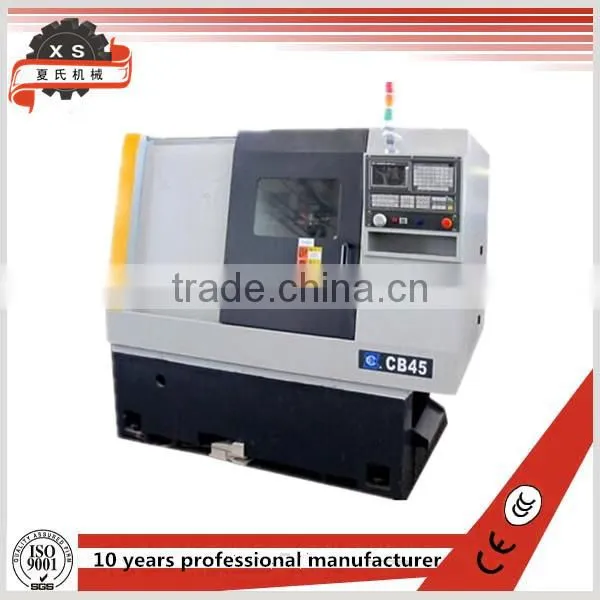

CB45 China CNC lathe machine price
Features
This efficient CNC lathe is capable of cylindrical, tapered and stepped turning, end facing, hole drilling, gooving, circular surface cutting, cylindrical and tapered Metric and Inch thread cutting. It features with linear ways and series collet chuck, and is used widely in instrument and light industries, electronic and medical appliance industries, film appliance industry for single work batch production. It is ideal for non-ferrous metal workpieces, small sized workpieces and complex-shaped shaft type and chucked type workpieces machining as well as teaching aid in college.
Specification
description |
Unit |
Data |
|
Capacity |
Max. swing over bed |
mm |
320 |
Max. swing over slide |
mm |
120 |
|
Max. turning diameter |
mm |
120 |
|
Max. turning length |
mm |
150 |
|
Slant angle of bed |
45° |
||
Spindle |
Spindle bore |
mm |
56 |
Spindle nose |
A2-5 |
||
Bar diameter to be held |
mm |
45 |
|
Spindle speeds |
r/min |
4000 |
|
Drive of two axes |
X-axis motor |
kW |
1.5 |
X-axis rapid traverse |
m/min |
30 |
|
Z-axis motor |
kW |
1.5 |
|
Z-axis rapid traverse |
m/min |
30 |
|
X-axis travel |
mm |
350 |
|
Z-axis travel |
mm |
250 |
|
Tool rest |
Turret type |
Comb type |
|
Section of turning tool |
mm |
20X20 |
|
Diameter of boring bar |
mm |
25 |
|
Others |
Power supply |
kVA |
10 |
Gross weight of machine |
kG |
2500 |
|
Overall dimension of machien |
mm |
2020×1385×1760 |
|

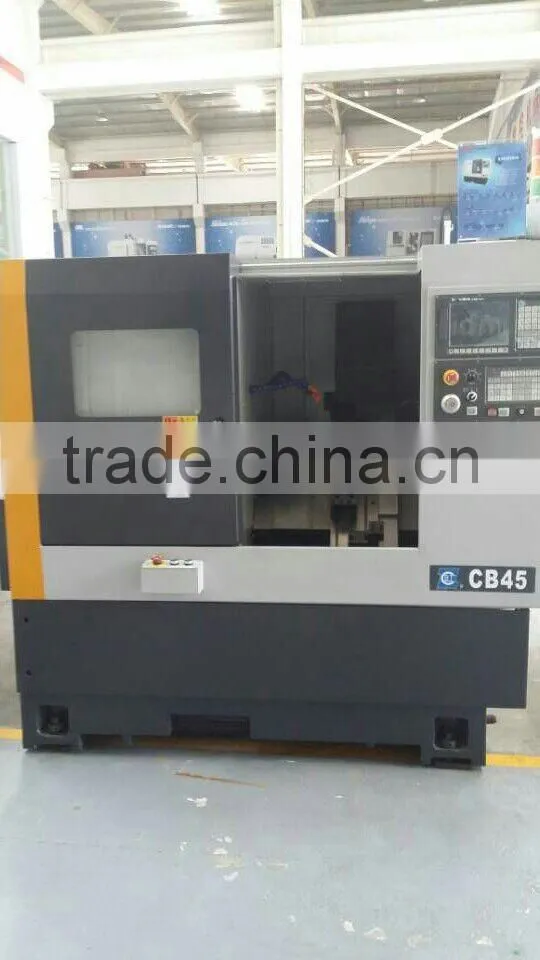

Picture for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
