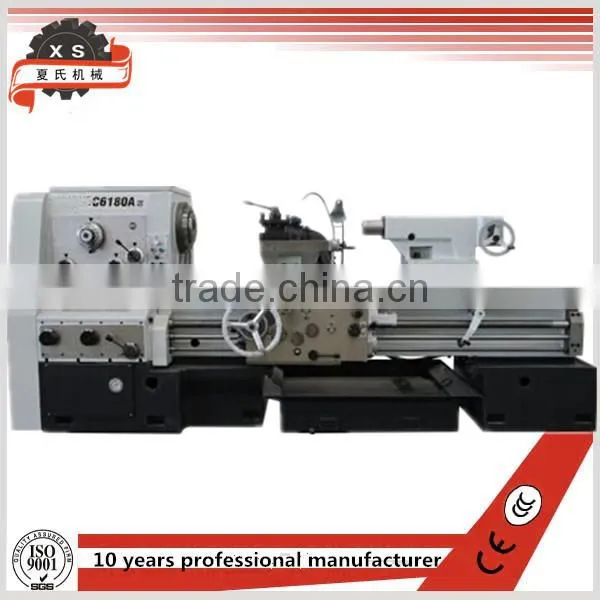

C6180A universal conventional horizontal lathe machine in a low price
Features
C6180A universal lathe can perform internal and external turning, taper turning, end facing, and other rotary parts turning; Threading Inch, Metric, Module and D.P.; Perform drilling, boring and groove broaching; These series lathes operate on power supply of different voltages ( 220V,380V,420V) and different frequencies (50Hz,60Hz).
Specification
ITEMS |
UNIT |
PARAMETERS |
||
Capacity |
Max. swing dia. over bed |
mm |
φ830 |
|
Max. swing dia. over cross slide |
mm |
φ540 |
||
Distance between centers |
mm |
1500 |
3000 |
|
Span of bed way |
mm |
560 |
||
Spindle |
Spindle thru-hole |
mm |
φ105 |
|
Taper of spindle hole |
1:20 |
|||
Type of spindle nose |
A1-11 |
|||
Spindle speed |
r/min |
14 steps 12.5-1120 |
||
Feeds and threads |
Max. travel of upper slide |
mm |
200 |
|
Max. travel of cross slide |
mm |
515 |
||
Tool section |
mm |
32×32 |
||
X-axis feed range |
mm/r |
56 kinds 0.031-3.5 |
||
Z-axis feed range |
mm/r |
56 kinds 0.062-7.0 |
||
Metric threads |
mm |
31 kinds 0.5-28 |
||
Inch threads |
t.p.i |
38 kinds 56-1 |
||
Module threads |
πmm |
21 kinds 0.25-7 |
||
Diametric pitch threads |
DP |
27 kinds 56-4 |
||
Tailstock |
Diameter of quill |
mm |
φ100 |
|
Max. travel of quill |
mm |
250 |
||
Taper of quill (Morse) |
Morse No.5 |
|||
Motor |
Main motor power |
kW |
11 |
|
Coolant pump motor power |
kW |
1.1 |
||
Others |
Machine length |
mm |
3500 |
5000 |
Machine width |
mm |
1370 |
||
Machine height |
mm |
1470 |
||
Total weight |
kg |
4500 |
5300 |
|

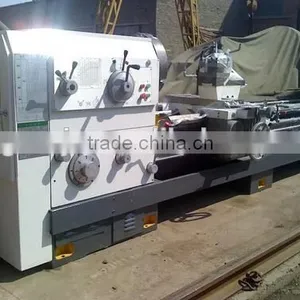

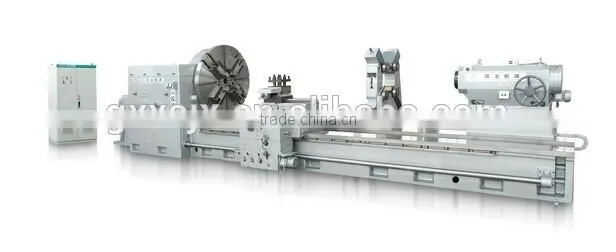

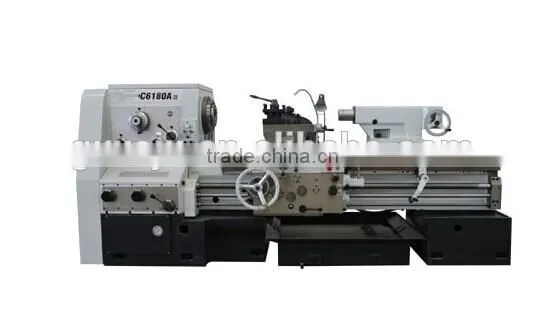

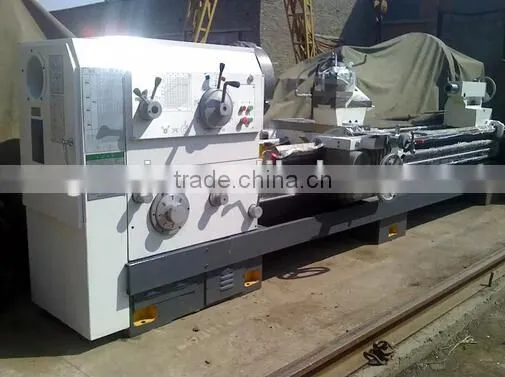

Picture for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
