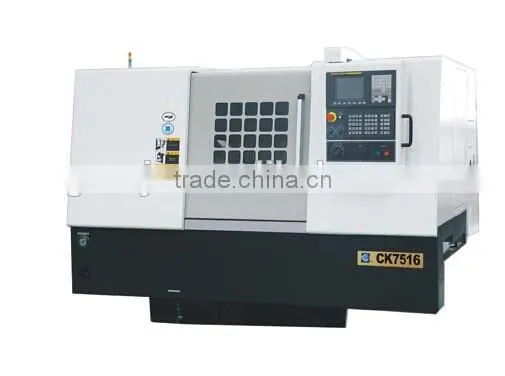

Help CenterSpecial Discount for Lathe and Machine Center Etc.CK7516 Series CNC Lathe Machine for Sale
Related Products
-
C61100 Series Horizontal Lathe Machine for SaleNegotiableMOQ: 1 Set -
Universal Lathe Machine CN6250BNegotiableMOQ: 1 Set
-
Lathe Bench CZ1340A Mini Bench Lathe For SaleUS$ 1,500 - 2,000MOQ: 1 Set
-
CZ1440G/1 Conventional Mini Lathe Bench Lathe for SaleUS$ 1,500 - 2,000MOQ: 1 Set
-
CK7516GS CNC Lathe Machine Price for Sale With High AccuracyUS$ 5,000 - 20,000MOQ: 1 Set
Feature
CK7516 series CNC lathes,its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design. This series lathe, designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor. Key parts like bearings of main spindle and of feeding screw are all famous foreign products. The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately. The lathe can be equipped with FANUC 0i-TD, FANUC 0i Mate-TD, Siemens 810D, 802D, DASEN 3i and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.
Specification
ITEMS |
UNIT |
CK7516 |
CK7516A |
CK7516C |
|
Capacity |
Max.swing diameter over bed |
mm |
φ400 |
φ400 |
φ400 |
Max.swing dia. over slide |
mm |
φ260 |
φ260 |
φ180 |
|
Max.turning diameter |
mm |
φ285 |
φ285 |
φ285 |
|
Max.turning length |
mm |
400 |
400 |
400 |
|
Max.bar diameter |
mm |
φ42 |
φ42 |
φ42 |
|
Spindle |
Type of spindle nose |
A2-5 |
A2-5 |
A2-5 |
|
Spindle bore diameter |
mm |
φ57 |
φ57 |
φ57 |
|
Chuck diameter |
mm |
φ165 |
φ165 |
φ165 |
|
Spindle speeds |
r/min |
55-5500 |
80-3500 |
55-5500 |
|
Spindle motor power (continuous/30min) |
kW |
11/15(β) |
7.5/11 |
11/15(α) |
|
Tailstock |
Quill diameter |
mm |
φ70 |
φ70 |
φ70 |
Quill travel |
mm |
80 |
80 |
80 |
|
Taper of center(standard/alive spindle) |
Morse No.4/2 |
Morse No.4/2 |
Morse No.4/2 |
||
Feeds |
Travel X/Z |
mm |
165/410 |
165/410 |
165/410 |
Rapid traverse rate X/Z |
m/min |
12/16 |
12/16 |
30/24 |
|
FANUC servo motor torque X/Z |
N•m |
8/12 |
11/20 |
8/12 |
|
Turret |
Number of turret station |
12/8 |
12/8 |
12/8 |
|
Tool size(turning/boring) |
mm |
20×20/φ32 |
20×20/φ32 |
20×20/φ32 |
|
Others |
Slant degree of bed |
45° |
45° |
45° |
|
Power supply |
kVA |
35 |
35 |
35 |
|
Dimensions (L×W×H) |
mm |
2540×1670×1710 |
2540×1670×1710 |
2370×1670×1710 |
|
Weight |
kg |
3000 |
3000 |
3000 |
|

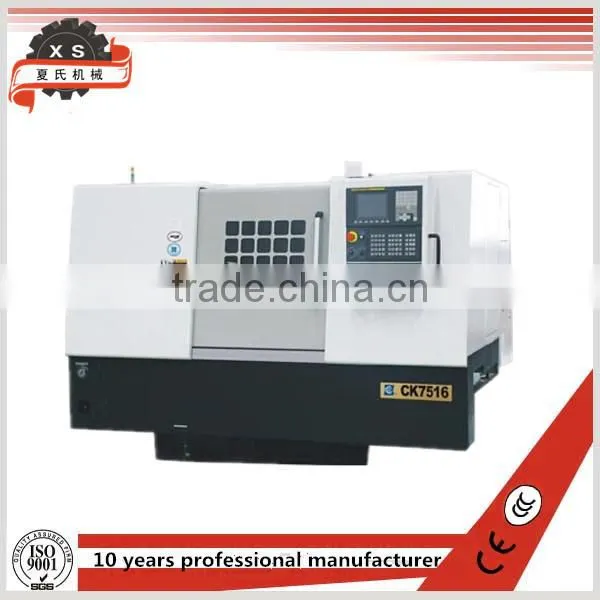

Picture for your reference
