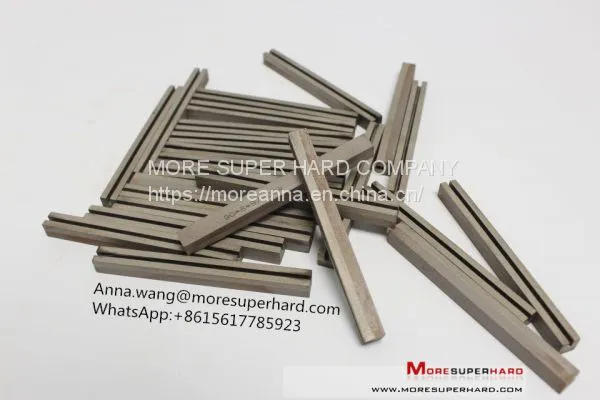

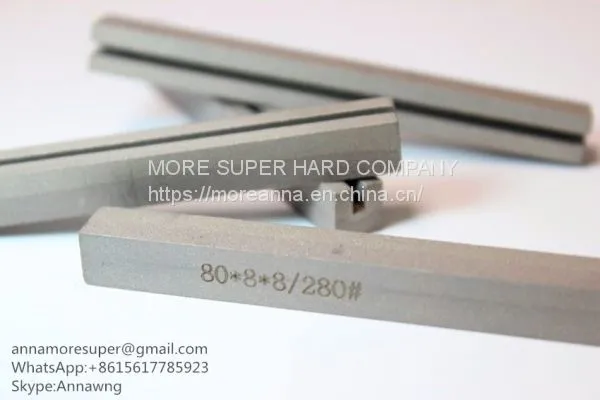

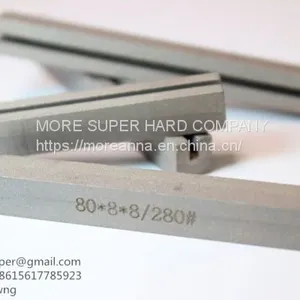

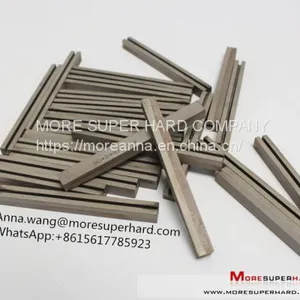

Premium Type CBN Honing Sticks Stones For Honing Machine,Honing stones for Sunnen honing machines, honing mandrels
We offer a full range of diamond honing stones, CBN honing stones, honing tools, mandrels, honing head, adapters, wedges, retainers and centering sets.
At the moment, honing stones we produced can be equipped to most of home and abroad honing machines. Our Superabrasive honing stones are designed for America SUNNEN; Germany GEHRING, NAGEL; Japan CHISHIMA, TOYO, NISSIN and some other honing machines. We can develop Superabrasive honing stones for the special purpose as per the customer’s requirements.
Diamond sharpening stone equipped to automobile or compressor industry, this sharpening stones can be equipped with certain honing head, like Nagel, Gerhing machine. As a hot-sale diamond sharpening stone in 2017 years, it is widely used in the field of automobile, motor,compressor, etc.
Application and performance
| CBN honing stones | Diamond honing stones | ||||||||
| Application | Rigid steel, alloy,etc. | Glass, quartz, rigid alloy, cast iron, ceramic materials, etc. | |||||||
| Performance | High strength and hardness, suitable for all hard materials | High strength and hardness, suitable for all non-carbide hard materials | |||||||
Grain size and roughness
| Material | Honing stone type | Abrasive grain sizes | ||||||||||
| 80 | 100 | 150 | 220 | 280 | 320 | 400 | 500 | 600 | 1200 | |||
| Rigid steel | CBN | — | 1.40 2.00 | 1.15 | 1.00 | 0.70 | — | 0.50 | — | 0.18 | 0.05 | |
| Mild steel | CBN | — | 1.60 2.50 | — 2.00 | 1.25 | — | — | 0.65 | — | 0.40 | 0.12 | |
| Cast iron | Diamond | — | — | — | 2.00 | — | — | 1.27 | — | 0.50 | 0.30 | |
| Hard alloy | Diamond | — | — | 0.75 | 0.50 | — | — | 0.18 | — | 0.08 | 0.03 | |
| Ceramic | Diamond | — | — | 1.27 | 1.00 | — | — | 0.50 | — | 0.40 | 0.25 | |
| Glass | Diamond | — | — | 2.40 | 1.80 | — | — | 0.75 | — | 0.40 | 0.20 | |
Honing Diamond & CBN Tools Include
Application Cases Of Diamond And CBN Honing Stones
CBN honing stones (90* 8* 8) have sent to Latvian clients and got a good feedback
|
CBN honing stone size | 90* 8* 8 |
| workpiece | cast iron cylinder honing | |
| applicable honing machine | Rottler H85ax honing machine |
