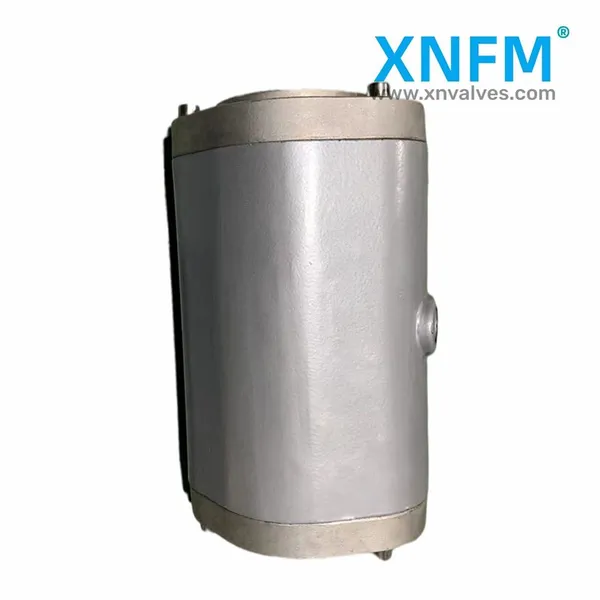

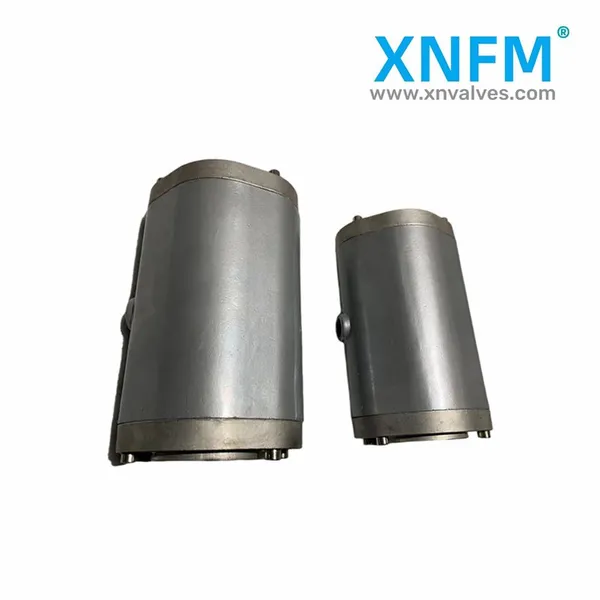

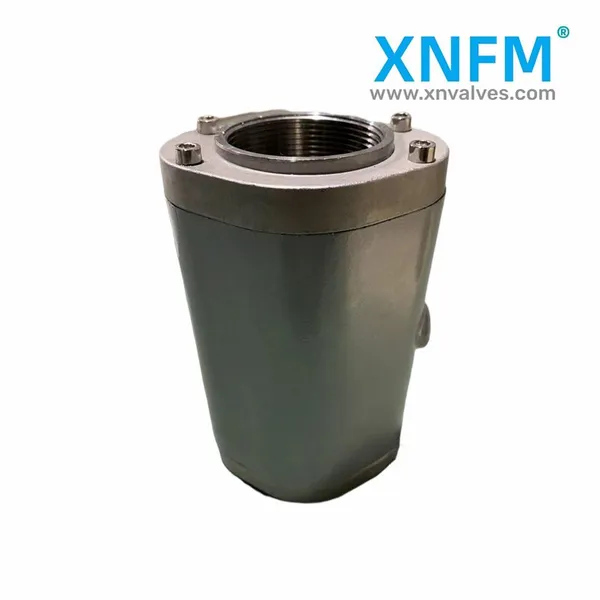

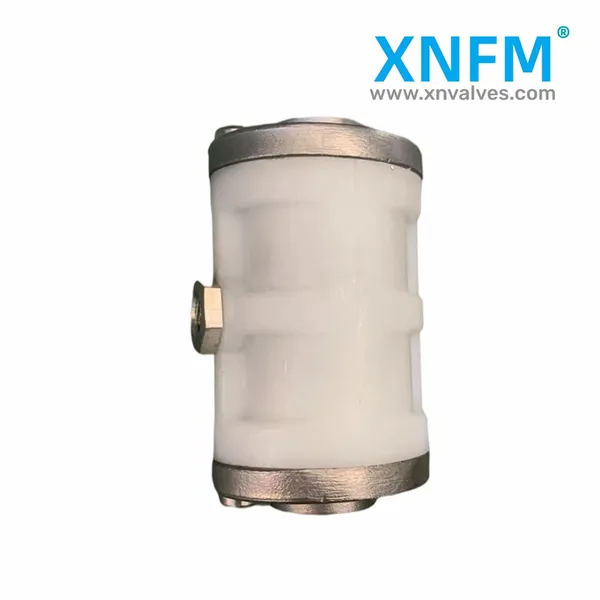

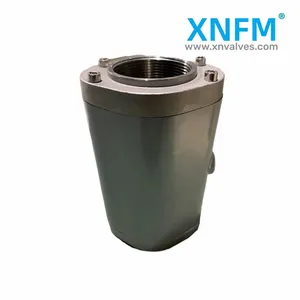

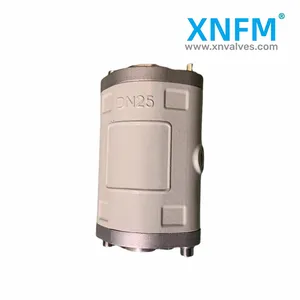

Help CenterPinch Valve VMC Series Internal Thread
Related Products
Product specification: 10-50
Packing instructions: carton, wooden case
Stats:
Applicable media: all kinds of gas, liquid, particle, viscous or powdered media
Pressure range: 0~4.0bar
Applicable temperature: -20℃~120℃
Structure: sac type
Seal form: soft seal type

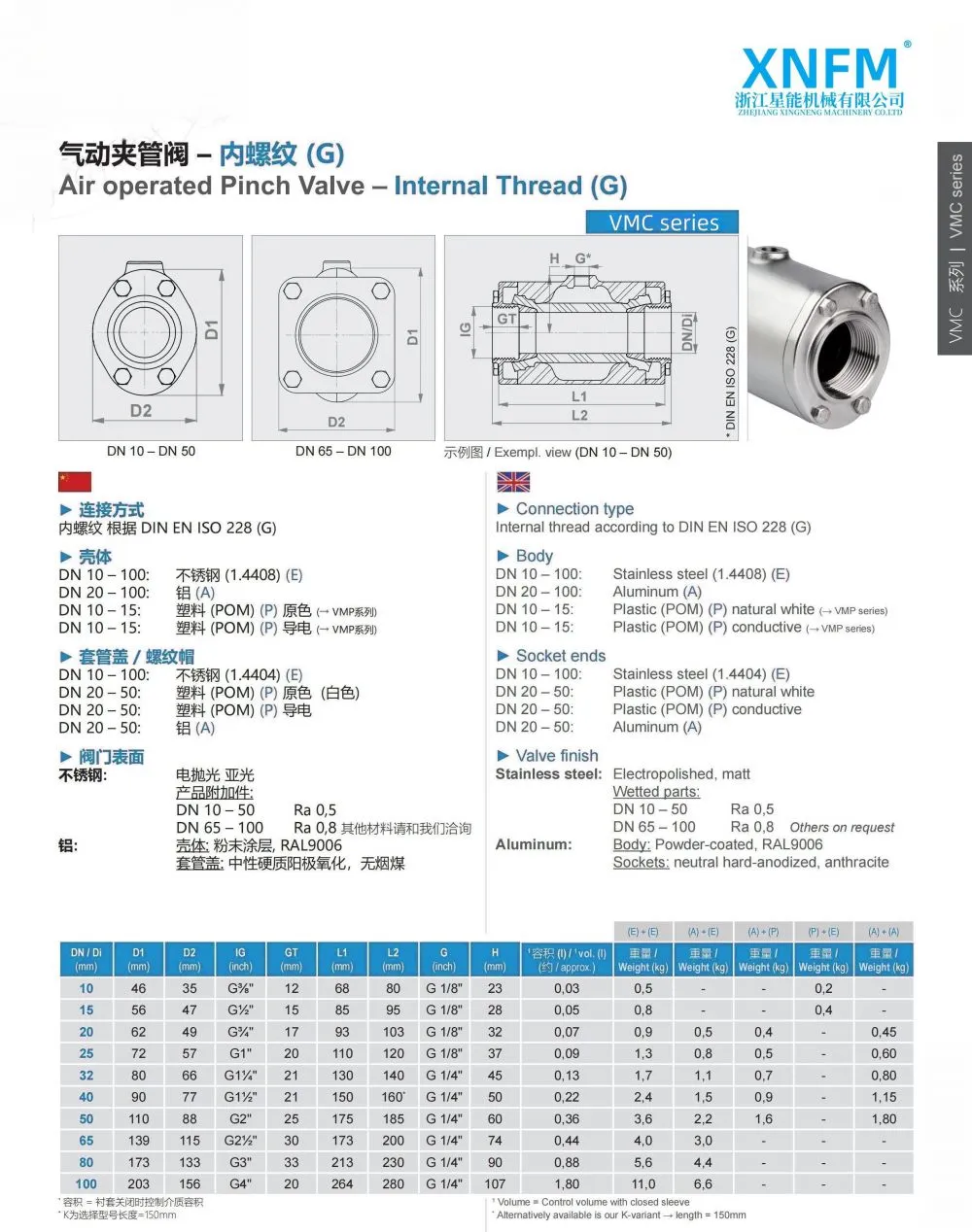

Connection mode: internal thread connection
Lining sleeve: natural rubber, food grade natural rubber, EPDM, etc
Material: Plastic steel, stainless steel, aluminum alloy
Application scope: powder, particle, plastic industry, medicine, food, ingredients system, etc.
Brand: XNFM
Model: VMC
Origin: Zhejiang Wenzhou
Processing customization: Yes
Product Description:
Double-layer reinforcement, sufficient flexibility, can be replaced separately, for different media have different materials to choose.
Suitable for pulp treatment, pneumatic conveying system, fine pigment, powder, suspension, sewage, dust particle conveying, ceramic industry, glass manufacturing, plastic industry, medicine, food industry, dosing system measurement, lifting, filling and weighing, exhaust and ventilation system.
