Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > Flap Diverter Valve VAB

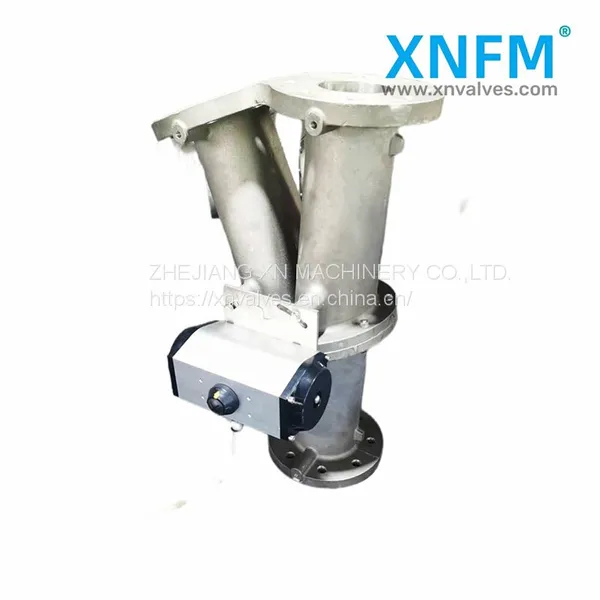

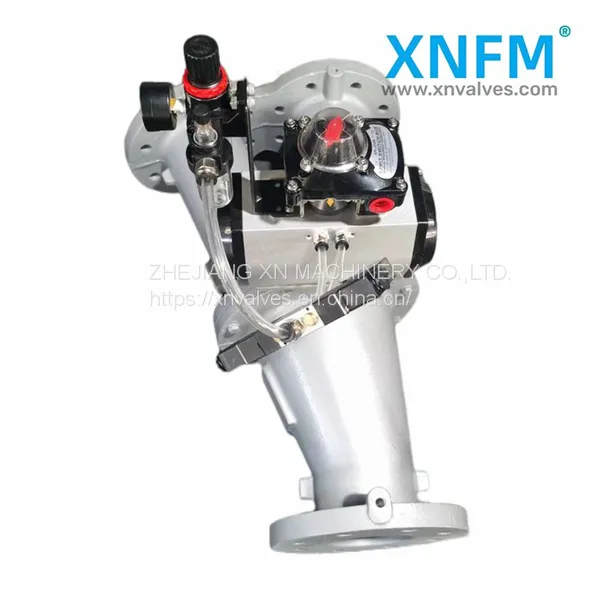

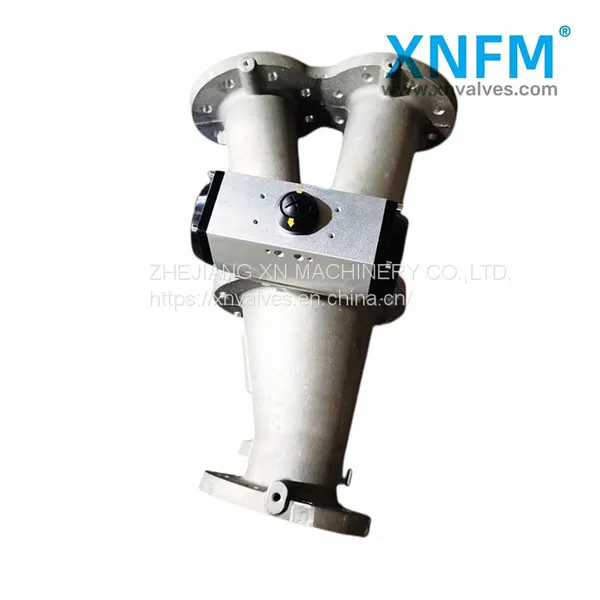

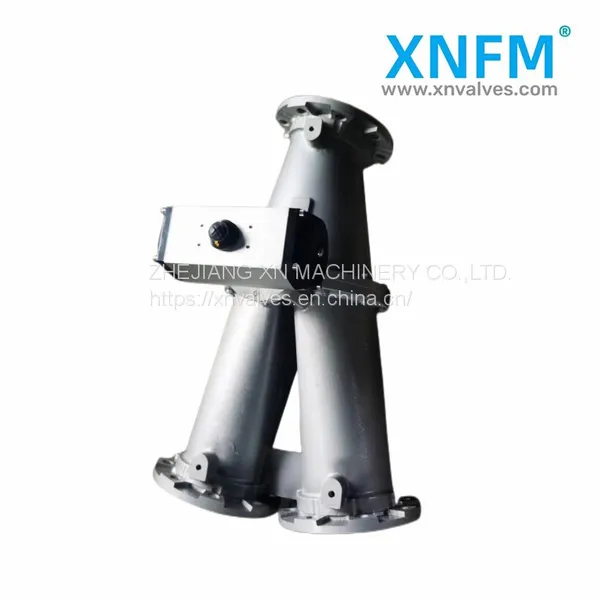

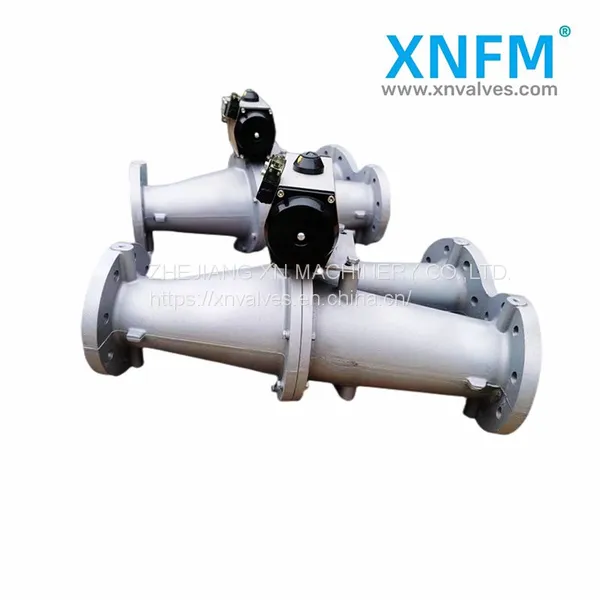

Flap Diverter Valve VAB

Name: Flap Diverter Valve VAB
Brand: XNFM
SKU: 172173703

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

XNFM

Place of Origin:

China

Model Number:

VAB

Contact Supplier Request Quote Chat Now

Zhejiang Xn Machinery Co.,ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

hangzhou

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name XNFM

Place of Origin China

Model Number VAB

After-sales Service Provided No overseas service provided

Condition New

Diameter range: 50 mm-65 mm-80 mm-100 mm-125 mm-150 mm-200 mm

Shell material: cast aluminum alloy

Plate seal: EPDM rubber (white, food grade certification, antistatic)

Moving metal plate:304 stainless steel

Operating temperature: -20℃-80℃.

Working pressure: -0.3~2bar

Pipe Angle :22.5°

Connection mode: Flange connection

Flange connection standard:DIN1092-1 PN10 or designed by client

Actuator:

Pneumatic actuators (HZ63 - HZ105 for KAB 50 to KAB125)(+ NPL210 suitable for all sizes of KAB 150-KAB 200）

- Power supply: 24 V AC, 24 V DC, 110 V AC, 230 V AC;

Electric actuator (HM10 type for KAB50 to KAB125 and HM20 type for KAB150-KAB200)

- Power supply: 24 VAC, 50/60 Hz

Manual actuator (VM4 for all sizes)

- Manual operation

Brand: XNFM

Model: VAB

Origin: Zhejiang Wenzhou

Processing customization: YES

Product Description:

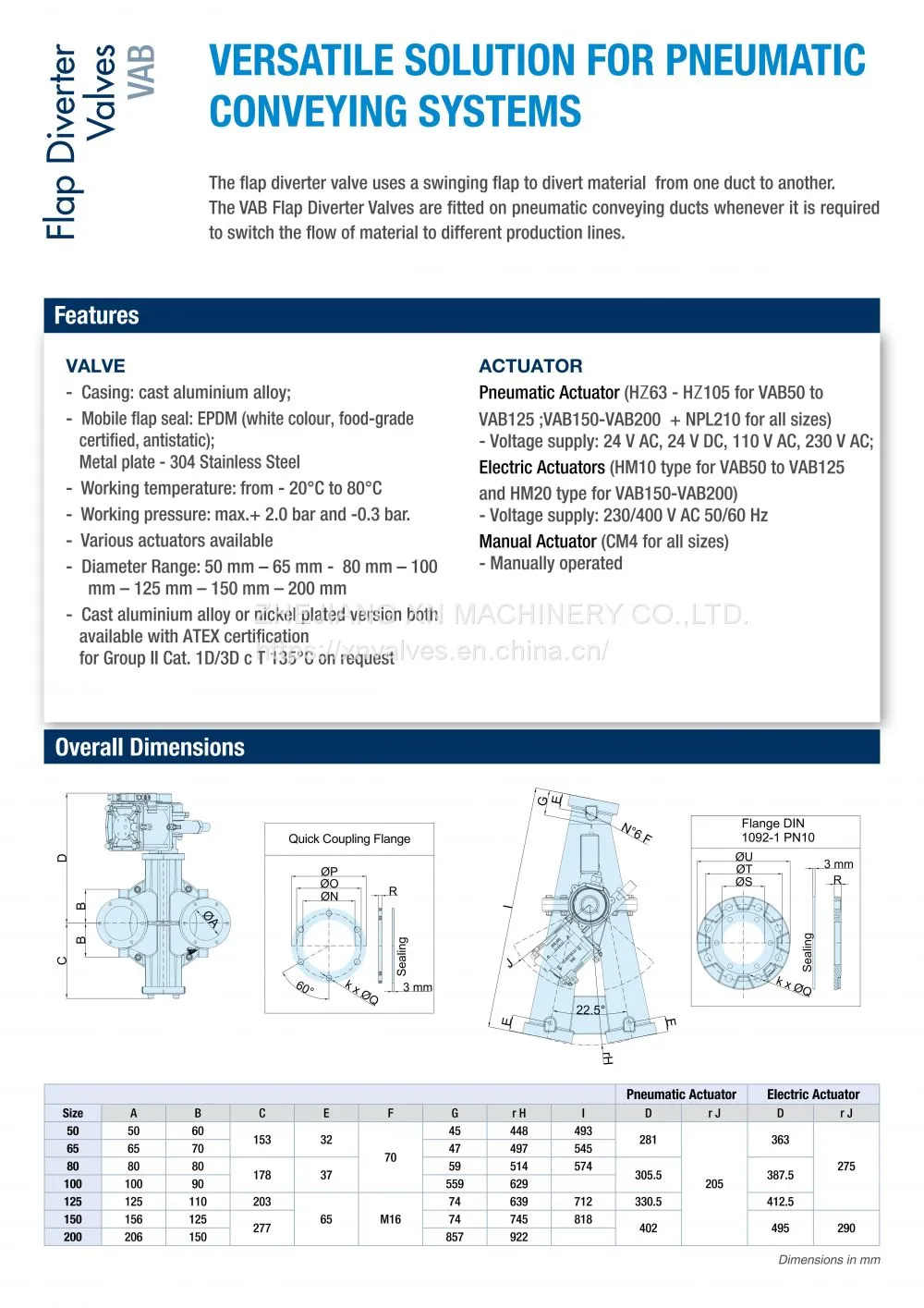

The Two-Way Flap Type Diverter Valve can be used as a shunt or rectifier. It is designed to meet the requirement of pneumatic conveying plants in re-routing powders. The Flap Type Diverter Valve use swinging flaps to transfer material from one catheter to another. When it is necessary to change the material flow to different production lines, the Flap diverter valves is installed on the pneumatic conveying line.
