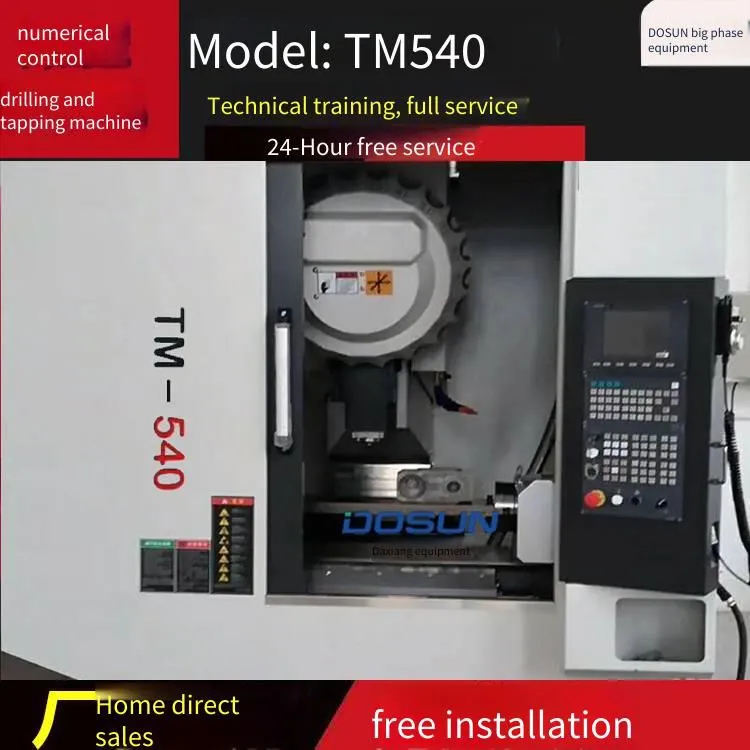

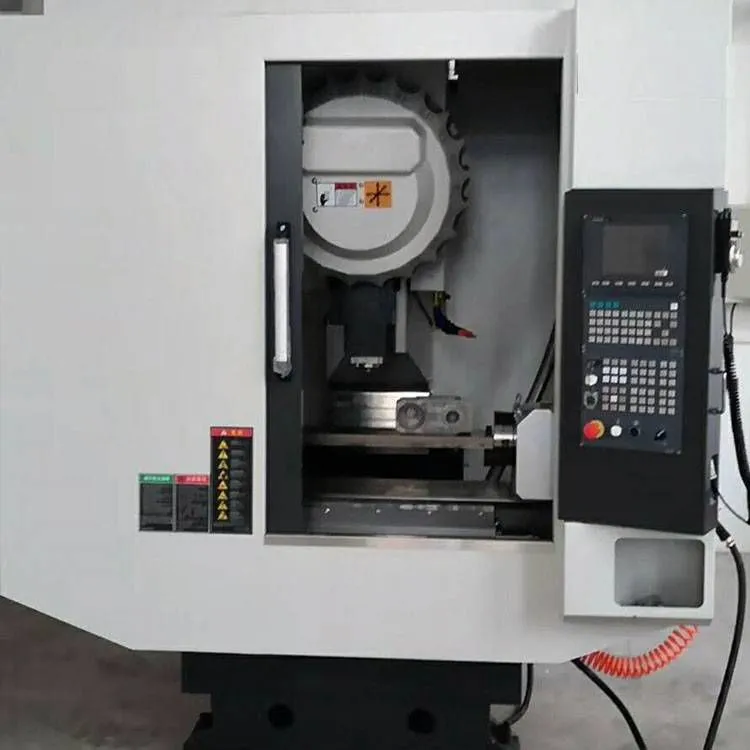

Main technical specifications and parameters, and main structural features of the TM540 drilling and tapping machine
1 、 It is a high-performance CNC machine tool designed and manufactured using advanced domestic technologies. Its structure and performance are mature and stable, and the selection of externally purchased supporting components is consistent with the international advanced level.
2 、The overall structure of the machine has undergone FEM finite element analysis to ensure its stiffness and stability. The castings are made by resin sand casting and have undergone aging treatment to fully eliminate internal stress and ensure good accuracy retention. 3 、The integrated structural design of the bearing seat, screw nut seat, and casting can ensure the support rigidity and stability of the screw.
4 、Using the ball nut screw pair produced in Taiwan can extend the service life of the machine tool.
5 、High-precision special bearings for ball screws are used, and the ball screws are pre-tensioned , to ensure the transmission accuracy of the screws.
6 、The servo motors of Deou CNC Company are used for the three-axis transmission. The ball screws are directly driven through couplings to ensure the rapid response and smooth cutting of the machine tool during processing.
7 、An imported direct-coupled spindle is used to meet the technological requirements of roughing and finishing.
8 、The Syntec CNC system is used to ensure the stability of machine tool control.
9 、The lubrication system of the machine tool uses a centralized lubrication pump to supply oil, and lubricates each lubrication point (such as the guide rail and ball screw) regularly and quantitatively. In addition, the lubrication pump station also has the functions of pressure and liquid level monitoring and alarm. Through the control of the electrical system, fully automatic centralized lubrication is achieved.
10 、The pneumatic system of the machine tool consists of air source treatment components, control valves, and actuating components. A pressure detection switch is provided, and the machine tool system pressure is monitored through the CNC system.
11 、Machine tool safety and protection devices:
( 1 ) For the X , Y , Z three-axis transmission system of the machine tool, multiple safety control devices such as servo motor limit and mechanical limit are provided to keep the machine tool working in a safe and reliable state and ensure the personal safety of operators.
( 2 ) All machine tool guide rails are equipped with fully enclosed protective covers.
( 3 ) The overall exterior protection of the machine tool uses high-quality fully enclosed sheet metal protective covers.
IV. General requirements for the main technical specifications and parameters of the TM540 drilling and tapping machine
1 . In order to maintain the accuracy of the machine tool, close attention must be paid to the environmental conditions where the machine tool is installed. The operating environment of the machine tool is as follows:
( 1 ) Machine tool environment operating temperature : 0 ℃ ~ 40 ℃
( 2 ) Relative humidity of the operating environment: It should be controlled within 75 %.
2 . Power supply voltage: 3 -phase, 380V ± 5%
3 . If the voltage in the area of use is unstable, the machine tool should be equipped with a voltage stabilizer to ensure the normal operation of the machine tool.
4 . The machine tool should have a reliable grounding: The grounding wire should be a copper wire with a wire diameter of not less than 10mm 2 , and the grounding resistance should be less than 4 ohms.
5 . Air source requirements: The flow rate should be greater than 280L / min
The pressure should be greater than 0.6MPa
Air source cleanliness Filtering accuracy 100 μ m
Dryness The dew point temperature is 10 °C
6 . To ensure the normal working performance of the machine tool, if the compressed air of the air source fails to meet the requirements of the air source, a set of air source purification devices (dehumidification, degreasing, filtration) should be added before the machine tool admits air.
7 . The machine tool should avoid the radiation and vibration of other high heat sources to prevent the machine tool from malfunctioning or losing its accuracy.
