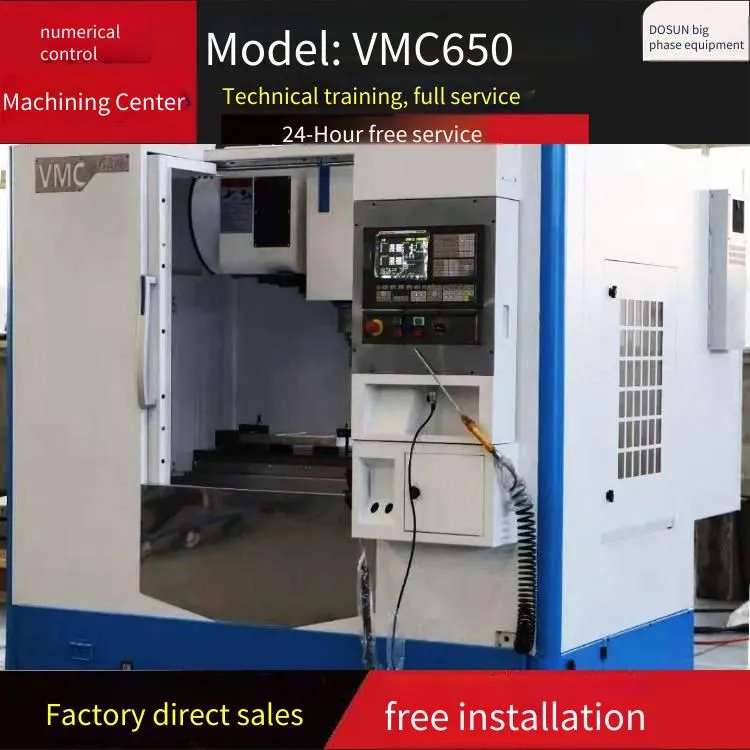

VMC650CNC Milling/Machining Center
I. Product Introduction and Application
This productX,Y,Z three axes adopt a semi - closed - loop vertical structure with servo direct - connection control. All three axes are high - rigidity rectangular guide rails, which have large load capacity, wide span and high precision. The sliding surface is plastic - coated. The spindle is driven by a servo motor through a synchronous belt, which can realize one - time clamping for various complex parts such as discs, plates, shells, cams, molds, etc., and can complete various processes such as drilling, milling, boring, expanding, reaming, rigid tapping, etc. It is suitable for the production of multi - variety and small - to - medium - batch products and can meet the processing requirements of complex and high - precision parts. It can be equipped with a fourth rotary axis to meet the processing requirements of special parts.
II. Main Structural Features
1. The main basic parts such as the base, slide, workbench, column, and spindle box are made ofHT300Cast iron; the base is a box-type structure, and the compact and reasonable symmetrical rib structure ensures high rigidity and anti-bending and shock-absorbing performance of the basic parts; A type bridge-span column and internal grid-shaped ribs effectively ensure the rigidity and accuracy during powerful cutting of the Z axis; the basic parts are made by resin sand molding and subjected to aging treatment, which provides a guarantee for the long-term performance stability of the machine tool.
2、 X, Y, Z direction guide rails are all plastic-coated rectangular guide rails, which have characteristics such as high rigidity, low friction, low noise, and low temperature rise change. Combined with automatic forced lubrication, the accuracy and service life of the machine tool are improved;
3、 Z direction is balanced by adding counterweights to ensure smooth and stable movement of the spindle box; the Z direction drive motor has a power-off braking device;
4、 X, Y, Z three directions of feed adopt high-precision and high-strength internal circulation double-nut preloaded large-lead ball screws, with high feed speed; the drive motor is directly connected to the screw through an elastic coupling, and the feed servo motor directly transmits power to the high-precision ball screw without backlash, ensuring the positioning accuracy and synchronization of the machine tool;
5、 Adopt a high-speed, high-precision, and high-rigidity spindle unit with strong axial and radial load-bearing capacity, and the rotational speed can reach8000rpm;
6、 The spindle adopts a central air-blowing structure. When the spindle releases the tool, it quickly cleans the inner taper of the spindle with high-pressure central gas, ensuring the accuracy and service life of tool clamping;
7、 X,Y,Z guide rails and lead screws in all three directions are equipped with protective devices to ensure the cleanliness of the lead screws and guide rails, and to ensure the transmission and motion accuracy and service life of the machine tool;
8、 The outer protection of the machine tool adopts a full-protection structure design, which is convenient to operate, safe and reliable, and beautiful;
9、 Adopt a reliable centralized automatic lubrication device to automatically lubricate each lubrication point of the machine tool intermittently at regular intervals and in fixed quantities. The lubrication time can be adjusted according to the working conditions;
10、 Adopt those produced by professional manufacturers in Taiwan16sets of turret type tool magazines (standard configuration) or16sets of disc type tool magazines. Tool changing is accurate, with short time and high efficiency. After millions of operation tests, it meets the reliability requirements. It is equipped with a damping structure, which can reduce the impact during movement and ensure the service life of the tool magazine. It is pneumatically driven, easy to use, and changes tools with the shortest path.
11、 Adopt an oil-water separation device, which can separate most of the collected lubricating oil from the coolant, prevent the rapid deterioration of the coolant, and is beneficial to environmental protection.
12、 The machine tool operating system adopts the principle of ergonomics. The operating box is independently designed and can rotate by itself, which is convenient to operate.
