BELIMO Ball Valve X8016M.1132A
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2011
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Original BELIMO R413D 2 Way Characterised Control Ball Valve DN15 G1" External Thread PN40 HVAC Water Modulating ValveNegotiableMOQ: 1 Piece -
HOERBIGER HDK 200 Intake ValveNegotiableMOQ: 1 Piece
-
Original BELIMO C615QP-F+BAC 6 Way Zone Valve DN15 Rp1/2" PN16 AC/DC24V BACnet Modbus MP-Bus HVAC Modulating Control ValveNegotiableMOQ: 1 Piece
-
Original BELIMO C615QP-F+BAC 6 Way Zone Valve DN15 Rp1/2" PN16 AC/DC24V BACnet Modbus MP-Bus HVAC Modulating Control ValveNegotiableMOQ: 1 Piece
-
BELIMO Flow Limiting Valve C215QFL-FNegotiableMOQ: 1 Piece
Product Description
Regulating ball valve, 2-way, internally welded sleeve, ODF, PN 50, ps 5000 kPa, Kvs 1.2 m³/h, medium temperature -20 to 70 °C; -4 to 158 °F (2 to 90 °C when equipped with an actuator). This ball valve is controlled by rotating the actuator. Turning counterclockwise opens the valve; turning clockwise closes it. The valve can be installed in either a vertical or horizontal orientation. It must not be installed in an inverted position, i.e., with the valve stem pointing downward.
| Item | Specification |
|---|---|
| Origin | Germany |
| Operating Voltage | AC/DC 24 V |
| Power Consumption (Operating) | 0.3 W |
| Power Consumption (Holding) | 0.3 W |
| Design Rated Power | 0.6 VA |
| Power & Control Connection | 3 m cable, 4×0.34 mm² |
| Control Signal | DC 0.5 ~ 10 V |
| Protection Class | IP40 |
| Valve Configuration | 2-way |
| Kvs Value | 1.2 m³/h |
| Working Medium | HFC, HFO Refrigerants |
| Medium Temperature | -20 to 70 °C (-4 to 158 ℉)70 to 120 °C (158 to 248 ℉) when equipped with ZCQ-E |
| Flow Characteristic | Equal Percentage |
| Leakage Rate | Bubble tight, Leakage Class A |
| Pipe Connection | Internal brazed ODF connections |
| Pollution Degree | 2 |
| Ambient Humidity | Max. 95 % RH, non-condensing |
| Ambient Temperature | -30 to 60 °C (-22 to 140 ℉) |
| Storage Temperature | -40 to 80 °C (-40 to 176 ℉) |
| Weight | 0.45 kg |
Features
Suitable for A2L-class (ISO 817) refrigerants
Suitable for HFC and HFO refrigerants
Used for refrigerant flow control

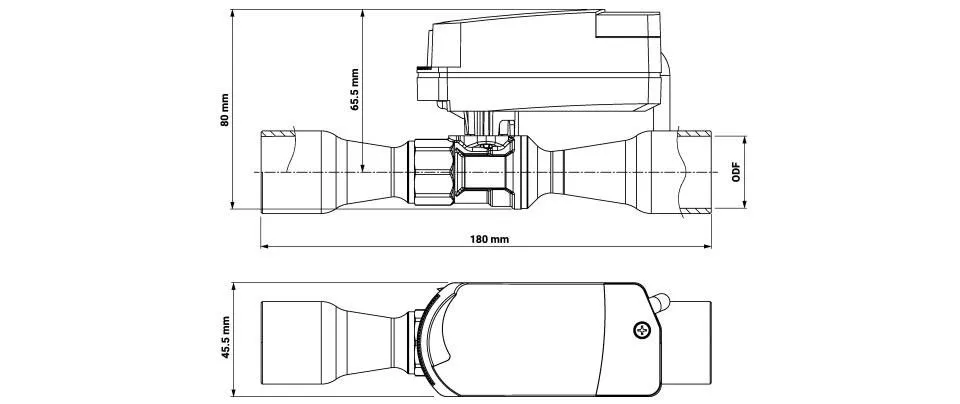

Product Dimensions
Product Applications
Heating, Ventilation, and Air Conditioning Systems
