Product Description
PI Zone Valve, 6-way, 24 V AC/DC, BACnet MS/TP, Modbus RTU, MP-Bus, DN 15, female thread, Rp 1/2", PN 16, ps 1600 kPa, V'nom 980 l/h, medium temperature 6 to 80 °C; 43 to 176 °F. PI Zone Valve, 6-way, female thread, PN 16. This HVAC actuator consists of two components: a 6-way switching ball valve with an actuator and a mechanical, pressure-independent 2-way zone valve (PIQCV) with an actuator. The set flow rates for Sequence 1 (V'max1) and Sequence 2 (V'max2) are assigned to the control signal as follows. The actuator can be controlled via communication or analog signals. Depending on the control signal, the cooling or heating sequence is activated by switching the 6-way ball valve. In addition, the pressure-independent 2-way zone valve ensures that the water flow required for cooling or heating operation meets the control signal requirements. When the pressure differential across the PIQCV is between 16 and 350 kPa, the built-in pressure regulating valve ensures a constant flow rate. Regardless of the pressure differential across the 2-way zone valve, the valve control ratio is 1. Even during pressure fluctuations and under partial load conditions, the flow rate remains constant according to demand, ensuring stable regulation.
| Item | Specification |
|---|---|
| Origin | Germany |
| Nominal Diameter | DN15 |
| Thread Size | Rp 1/2" Internal Thread |
| Nominal Flow Rate | 980 l/h (0.98 m³/h) |
| Flow Range | 190 ~ 980 l/h |
| Pressure Class | PN16 |
| Valve Type | 6-way zone valve |
| Compatible Medium | Water, water-glycol mixture (max. 50 % vol. glycol) |
| Medium Temperature | 6 ~ 80 ℃ (43 ~ 176 ℉) |
| Flow Characteristic | Linear |
| Leakage Performance | Bubble tight, Leakage Class A |
| Pipe Connection | Internal thread |
| Item | Specification |
|---|---|
| Operating Voltage | AC/DC 24 V |
| Power Consumption (Holding) | 1.9 W |
| Design Power Consumption | 4.6 VA |
| Power & Control Connection | 1 m cable, 6 × 0.75 mm² |
| Control Signals | BACnet MS/TP, Modbus RTU, MP-Bus, DC 2–10 V, DC 0.5–10 V, Hybrid (Communication / Analogue) |
| Protection Class | IP40 |
| Rated Impulse Voltage (Power/Control) | 0.8 kV |
| Pollution Degree | 2 |
| Ambient Humidity | Max. 95 % RH, non-condensing |
| Ambient Temperature | 5 ~ 40 ℃ (41 ~ 104 ℉) |
| Storage Temperature | -40 ~ 80 ℃ (-40 ~ 176 ℉) |
| Weight | 2.9 kg |
Performance Features
Rated Voltage: 24 V AC/DC
Control Modes: Continuous, Communication-based, Hybrid
Suitable for closed-loop water systems
Water-side switching or continuous regulation of heating/cooling elements
Two operating sequences (cooling/heating), switched via a 6-way regulating ball valve
Pressure-independent flow control via a 2-way PI zone valve (PIQCV)
Communication via BACnet MS/TP, Modbus RTU, Belimo MP-Bus, or conventional control methods

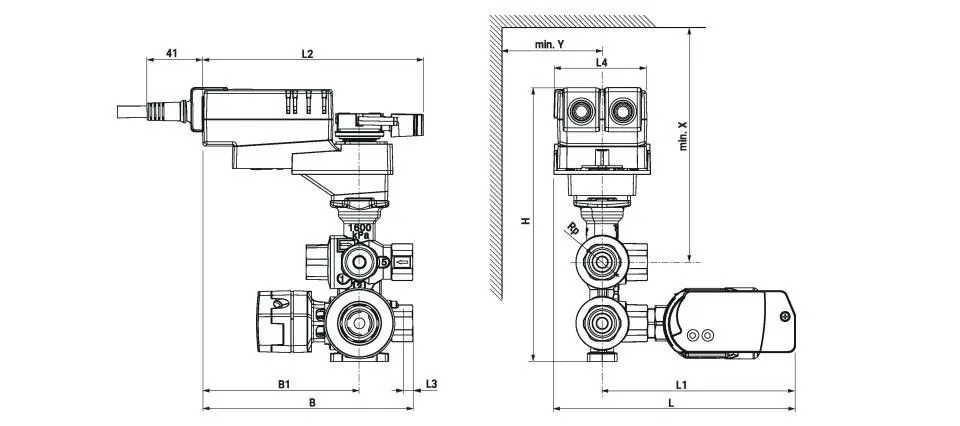

Product Structure and Details
2 Button and green LED indicator
Off: No power or functional fault
On: In operation
Press button: Triggers adaptive rotation angle, followed by entry into normal operation
3 Button and yellow LED indicator
Off: Normal operation
On: Adaptive or synchronization process in progress
Flashing: BACnet/Modbus communication in progress
Press button: No function
4 Manual Adjustment Button
Press the button: Gears disengage, motor stops, allowing for manual adjustment
Release the button: Gears engage, normal operation resumes
5 Service Connector
For connecting configuration and maintenance tools
6 NFC Tag
For use with Belimo Assistant 2
Optional Features and Accessories
Tool Description Type
Service tool for wired and wireless configuration, on-site operation, and troubleshooting; Belimo Assistant 2
Service tool with ZIP-USB functionality, suitable for Belimo’s configurable and communication-enabled actuators, VAV controllers, and HVAC actuators; ZTH EU
Belimo Assistant Link Bluetooth and USB-to-NFC and MP-Bus converter, suitable for configurable and communication-enabled devices; LINK.10
Mechanical Accessories Description Type
90° female/male threaded fitting DN 15 Rp 1/2“, R 1/2”, 2-piece set P2P15PE-1GE
90° Female/Male Threaded Elbow, DN 20, Rp 3/4“, R 3/4”, 2-piece set P2P20PF-1GE
6-Way Valve Mounting Bracket, DN 15/20 ZR-004
Pipe Fitting for Female-Threaded Ball Valves, DN 15, Rp 1/2" ZR2315
Pipe Fittings for Female-Threaded Ball Valves, DN 20, Rp 3/4", ZR2320
Mechanical Components
90° Female/Male Thread Elbow, DN 15, Rp 1/2“, R 1/2”, 2-Piece Set; P2P15PE-1GE
6-Way Valve Fixed Angle Fitting, DN 15/20; ZR-004
Pipe Fitting for Female-Threaded Ball Valves, DN 15, Rp 1/2“, R 1/2”; ZR2315
Product Applications
Heating, Ventilation, and Air Conditioning (HVAC) Systems
