Help CenterHigh Speed Automotive Parts Powder Coating Line 8m/min Conveyor 200°C Max Temperature
Product Spotlights
Related Products
-
Automotive Brake Pad Powder Coating Line for Engine Mounts and Chassis ComponentsNegotiableMOQ: 1 Piece -
Dedicated Powder Coating Line for Automotive Parts Used in Suspension and Exhaust SystemsNegotiableMOQ: 1 Piece
-
Automatic Automotive Parts Powder Coating Line Electrostatic Spraying Production EquipmentNegotiableMOQ: 1 Piece
-
Automotive Parts Powder Coating Line Overhead Conveyor System With Spray Booth Curing OvenNegotiableMOQ: 1 Piece
-
Semi-Auto Automotive Parts Powder Coating Line 304 Stainless Steel Chamber 3-5m/minNegotiableMOQ: 1 Piece
Deqing Leixin Coating Equipment Co., Ltd., established in 2011, is a professional manufacturer specializing in powder coating lines. With over a decade of experience, we have supplied high-performance coating solutions to markets across North America, South America, Europe, Southeast Asia, Africa, and more. Our High Speed Automotive Parts Powder Coating Line with an 8m/min conveyor and 200°C max temperature is engineered to deliver efficient, uniform, and durable finishes for automotive components. Backed by ISO9001 certification and a dedicated team of 51–100 employees, we ensure every line meets rigorous quality standards.
This coating line is designed for high-volume production of automotive parts such as brackets, chassis components, engine mounts, and suspension parts. The combination of a high-speed conveyor (8 m/min) and precise temperature control (up to 200°C) enables rapid curing of powder coatings, significantly boosting throughput while maintaining consistent coating quality. Whether you need to coat steel, aluminum, or other metal substrates, this line offers flexibility and reliability.
Key Features & Technical Specifications

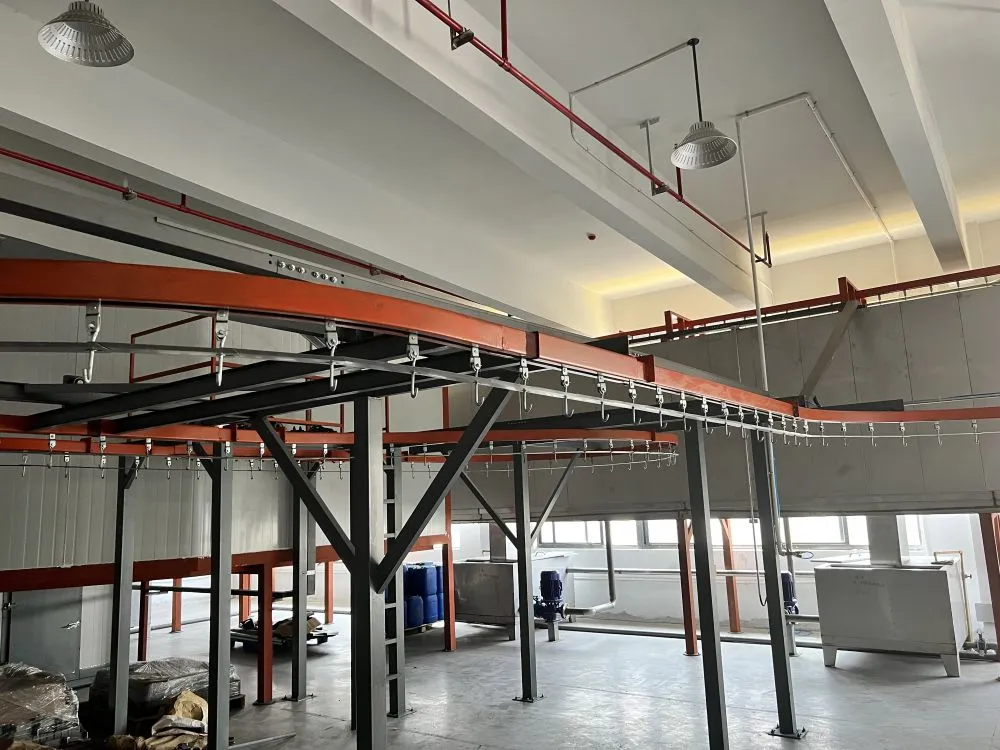

- High-Speed Conveyor System: Fixed speed of 8 m/min, ensuring continuous part movement and reduced cycle time. Conveyor type (overhead or floor) can be customized per your factory layout.
- Maximum Temperature 200°C: Suitable for most thermosetting powder coatings, providing rapid curing and excellent adhesion.

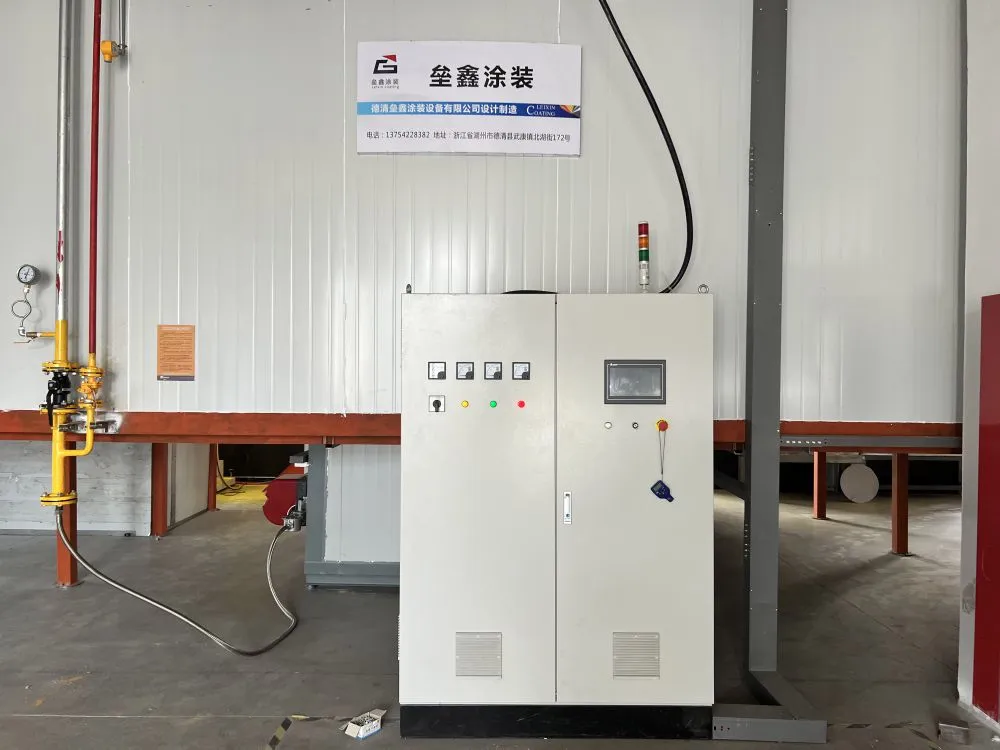

- PLC Automatic Control: User-friendly interface allows precise monitoring of temperature, conveyor speed, and curing time. Reduces human error and improves repeatability.
- Energy-Efficient Heating: Optional electric or gas heating systems designed to minimize energy consumption while maintaining uniform temperature distribution.
- Multi-Zone Temperature Control: Independent temperature zones ensure gradual heating and cooling, preventing coating defects like orange peel or blistering.
- Durable Construction: Made from high-quality steel with corrosion-resistant coating, ensuring long service life even in harsh industrial environments.
- Easy Maintenance: Modular design allows quick access to key components, reducing downtime and maintenance costs.
Technical Parameters (Typical Configuration)
| Parameter | Value |
| Conveyor Speed | 8 m/min (fixed; adjustable options available on request) |
| Maximum Curing Temperature | 200°C (can be customized up to 250°C) |
| Heating Method | Electric or gas (optional) |

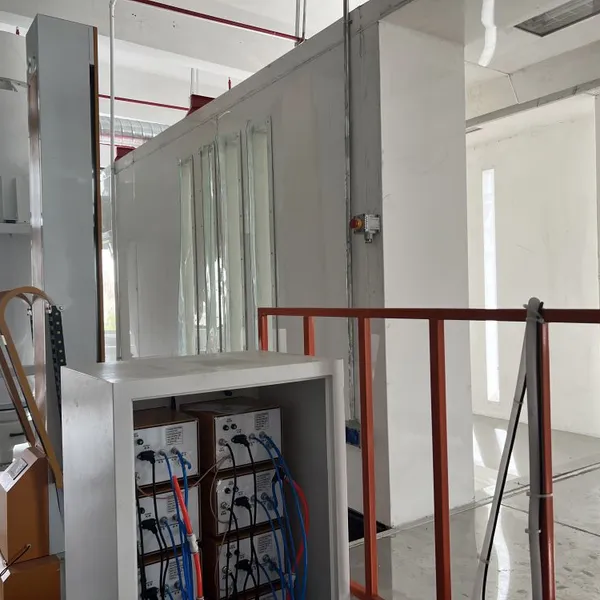

| Coating Application | Electrostatic powder spray booth (manual or automatic guns) |
| Control System | PLC with touch screen (automatic temperature & speed control) |
| Overall Dimensions | Customizable per client requirement |
| Power Supply | 380V/50Hz (3-phase) or as per local standard |
Advantages for Your Business
- Increased Production Efficiency: At 8 m/min, the line can handle up to 200–300 parts per hour (depending on part size), reducing lead times and boosting output.
- Consistent Finish Quality: The precise temperature control and even heat distribution eliminate cold spots, ensuring uniform coating thickness and excellent durability.
- Lower Operating Costs: Energy-efficient heating and automated controls reduce labor costs and energy waste, lowering your cost per part.
- Flexible Configuration: The line can be adapted to different part geometries and coating requirements, making it ideal for multi-product automotive manufacturing.
- Compliance with Industry Standards: Our coating lines meet ISO9001 quality management standards, ensuring reliable performance and traceability.
Why Choose Deqing Leixin?
As a manufacturer with over 12 years of experience, Deqing Leixin has delivered coating equipment to clients worldwide. Our factory in Huzhou, Zhejiang covers 1,000–3,000 square meters and houses a skilled team of 51–100 professionals. We export between US$1 million and US$1.5 million annually, serving markets across North America, South America, Europe, Asia, Africa, and Oceania. Our ISO9001 certification reflects our commitment to quality and continuous improvement.
We offer comprehensive after-sales support, including installation guidance, training, and remote troubleshooting. Many of our customers have reported a 30% increase in production efficiency after switching to our high-speed powder coating line. Contact us today for a customized solution that fits your automotive parts coating needs.
Frequently Asked Questions (FAQ)
-
Q: What types of automotive parts can be coated on this line?
A: This line is suitable for a wide range of metal automotive components, including brackets, suspension arms, engine parts, and chassis components. It can handle parts of various sizes and shapes, as long as they fit within the conveyor clearance. -
Q: Can the conveyor speed be adjusted?
A: The standard speed is 8 m/min, but we can offer adjustable speed controls (e.g., 5–10 m/min) upon request. Please contact us for customization options. -
Q: What is the maximum part size the line can accommodate?
A: The maximum part size depends on the oven dimensions and conveyor spacing. We can customize the line width and height to match your specific parts. Typical maximum part width: 1200 mm; height: 800 mm; please provide your part dimensions for a tailored solution. -
Q: Does the line include a pretreatment section?
A: Our standard powder coating line does not include pretreatment, but we can integrate a pretreatment module (e.g., degreasing, phosphating) as an optional add-on. Please specify your requirements. -
Q: What is the power consumption of the line?
A: Power consumption varies based on heating method and oven size. For an electric oven with a typical capacity, the installed power is around 200–300 kW. Actual consumption depends on production load. We can provide detailed energy estimates for your specific configuration. -
Q: Can the line be used for powder coating on non-metallic parts?
A: This line is designed primarily for metal substrates, as powder coating requires conductive surfaces. For non-metallic parts, special pretreatment (e.g., conductive primer) may be needed. We recommend consulting our engineers for feasibility. -
Q: What is the warranty period?
A: Our standard warranty is 12 months from the date of commissioning. Extended warranty plans are available upon request. We also provide spare parts support and technical assistance throughout the machine's lifetime. -
Q: How long does it take to install and commission the line?
A: Installation and commissioning typically take 2–4 weeks, depending on the complexity of the line and site conditions. We provide on-site supervision and training for your team.
Ready to upgrade your powder coating operation? Contact Deqing Leixin Coating Equipment Co., Ltd. for a quote or technical consultation. We ship from Ningbo or Shanghai ports, ensuring fast delivery to your location.
