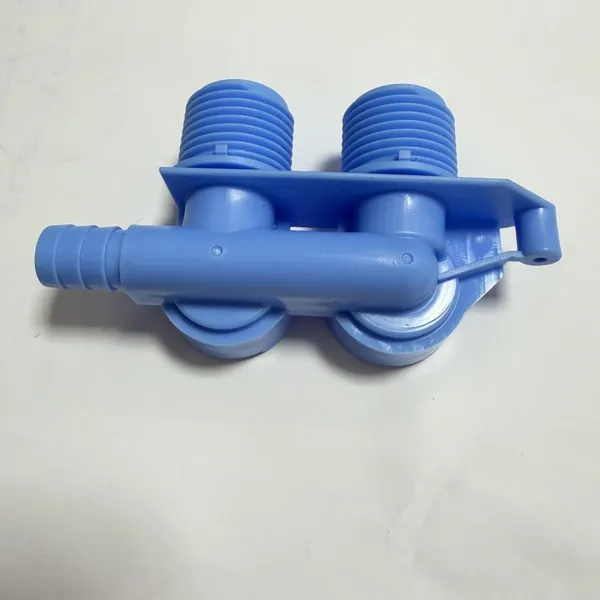

OEM PA66 GF30 Auto HVAC Fluid Distribution Valve Injection Tooling IATF16949 Engine Heater Pipe Connector Assembly Russia
Product Spotlights
Precision injection tooling for automotive HVAC fluid distribution valve and engine heater pipe connector in PA66+GF30. Integrated assembly reduces parts count. Manufactured under TS16969/IATF16949 guidelines. Suitable for Russian climate conditions. Custom OEM design, fast lead time, global shipping from China.
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, PA66 + 30% Glass Fiber
Application:
Automotive HVAC System
Product Type:
Fluid Distribution Valve & Engine Heater Pipe Connector
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou,Jiangsu
Delivery Detail:
30 days
Related Products
-
Automatic Unscrewing Mold Auto Dual Port Tubing Fastener PPA High Temperature Resistant Engine Cooling Pipe Injection Factory ThailandNegotiableMOQ: 5000 Pieces -
Custom NEV Thermal Management Dual Port Tubing Joint Plastic Injection Molding Service IATF16949 PA66 GF30 Fluid Valve Manufacturer VietnamNegotiableMOQ: 5000 Pieces
-
Cold Resistant PA66 GF30 Auto Engine Heater Pipe Connector Plastic Molding Service IATF16949 Dual Port Tubing Bracket Tooling Maker RussiaNegotiableMOQ: 5000 Pieces
-
High Burst Pressure Auto Dual Port Tubing Joint Custom Molding Factory IATF16949 Engine Cooling System Fluid Valve Tooling Maker UAENegotiableMOQ: 5000 Pieces
-
Heavy Duty Commercial Vehicle Dual Port Tubing Joint Molding Service IATF16949 PA66 GF30 Auto Pipeline Bracket Injection Saudi ArabiaNegotiableMOQ: 5000 Pieces
Material
Other, PA66 + 30% Glass Fiber
Application
Automotive HVAC System
Product Type
Fluid Distribution Valve & Engine Heater Pipe Connector
Process
Injection Molding & Tooling
Color
Black (Customizable)
Size
Customized per Drawing
OEM Service
Yes
Quality System
TS16969 / IATF16949 Guidelines
Changzhou Hongxinyutai Precision Mold Co., Ltd. proudly presents our OEM PA66 GF30 Auto HVAC Fluid Distribution Valve Injection Tooling, specifically engineered for the demanding requirements of modern automotive thermal management systems. As a dedicated manufacturer with over 7 years of precision mold experience, we combine advanced injection molding technology with rigorous quality control to deliver components that ensure reliable fluid distribution in HVAC systems. This product integrates the fluid distribution valve and engine heater pipe connector into a single, robust assembly, offering superior sealing and durability under extreme temperature and pressure conditions. Our tooling is developed in strict compliance with IATF16949 guidelines, reflecting our commitment to automotive industry standards and our ability to serve markets including Russia, Europe, and the Americas.
Product Features & Technical Specifications
- High-Performance Material: PA66 reinforced with 30% glass fiber offers exceptional mechanical strength, heat resistance (up to 160°C continuous), and dimensional stability ideal for under-hood applications.
- Precision Mold Design: Our injection tooling achieves tight tolerances (±0.02mm) ensuring perfect mating of the fluid distribution valve and heater pipe connector, preventing leaks and pressure drops.
- Integrated Assembly: The combined design reduces component count, simplifies installation, and improves overall system reliability for automotive HVAC units.
- Customizable Configurations: Available in black as standard, with custom colors and surface finishes (e.g., textured, glossy) upon request.
- Quality Assurance: Manufactured under TS16969 quality management system, with optional full IATF16949 certification documentation available.
- Russia & Global Market Compliance: Designed to meet cold-start and high-temperature cycling requirements typical in Russian automotive environments.
| Parameter | Specification |
|---|---|
| Material Grade | PA66+GF30 (e.g., DuPont Zytel® equivalent) |
| Shrinkage Rate | 0.3% – 0.6% (typical for GF30) |
| Operating Temperature | -40°C to +160°C |
| Mold Cavities | 1, 2, 4 or custom multi-cavity |
| Surface Finish | SPI-A1 to SPI-C3, textured optional |
| Lead Time (Tooling) | 25–40 working days after design approval |
| Packaging | Export standard: PE bag + foam + carton + plywood case |
Key Benefits for Your Business
- Reduced Assembly Time: The integrated design eliminates separate valve and connector sourcing, streamlining your supply chain and lowering inventory costs.
- Enhanced Durability: Glass fiber reinforcement minimizes warpage and creep under load, ensuring long service life in high-vibration engine compartments.
- Lower Total Cost: Our precision tooling optimizes cycle times and reduces scrap rates, delivering consistent quality part after part.
- Global Logistics: Shipments from Jiangsu (close to Shanghai port) ensure fast delivery to Russia and other global markets.
- Technical Support: Our engineering team provides full DFM (Design for Manufacturability) analysis and mold flow simulation to optimize your design before production.
Why Choose Changzhou Hongxinyutai Precision Mold?
Founded in 2017, our factory spans 1,000–3,000 square meters and is staffed by 51–100 skilled professionals. We have successfully served customers across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, East Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, and the Domestic market. Our quality system is certified to TS16969, and we consistently follow IATF16949 principles in every project. When you partner with us, you gain a reliable manufacturing ally that understands the complexities of automotive HVAC fluid distribution systems. We invite you to request a free quote or sample mold trial to experience the precision and reliability of our tooling firsthand.
Frequently Asked Questions
-
Q: What makes PA66+GF30 the preferred material for this application?
A: PA66+GF30 offers an excellent balance of strength, heat resistance, and chemical resistance. The 30% glass fiber reinforcement significantly improves stiffness and dimensional stability, making it ideal for fluid distribution valves and heater pipe connectors exposed to engine heat and coolant chemicals. -
Q: Can you customize the connector design for specific Russian vehicle models?
A: Yes, we provide full OEM customization. Send us your 3D drawing (e.g., STEP, IGES) or a sample, and our engineers will design the mold accordingly. We have experience adapting designs for Lada, GAZ, and other Russian automotive brands. -
Q: What is the typical lead time for a new mold?
A: For a standard single-cavity mold, lead time is approximately 30–35 working days after final design approval. Multi-cavity or complex molds may require 40–45 days. We offer expedited service for urgent projects (upon request). -
Q: Do you provide IATF16949 certification documents with the product?
A: We manufacture under TS16969 and follow IATF16949 work instructions. Full certification documentation (e.g., PPAP, IMDS) can be provided as required – please specify your needs during inquiry. -
Q: What is the minimum order quantity (MOQ) for these injection molded parts?
A: For tooling projects, the MOQ is typically 1 set of molds. For ongoing production orders, the MOQ is 500–1000 pieces per run, depending on part size and complexity. We can discuss lower quantities for trial orders. -
Q: How do you ensure the quality of the fluid distribution valve?
A: We implement in-process inspection (e.g., dimensional checks, leak testing) and final QC including CMM measurement. Each batch comes with a quality report and can be third-party inspected upon request. -
Q: What are the shipping options to Russia?
A: We ship from Jiangsu port via sea to major Russian ports (St. Petersburg, Vladivostok, Novorossiysk). Air freight is also available for urgent small orders. Door-to-door delivery can be arranged through our logistics partners. -
Q: Do you offer after-sales support for the injection tooling?
A: Yes, we provide up to 12 months warranty on mold steel and core/cavity dimensions. Technical support for mold maintenance and troubleshooting is available via email, phone, or video call.
