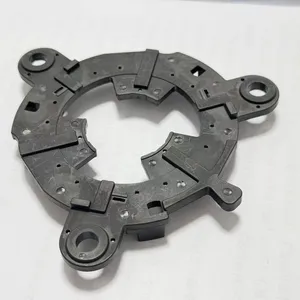

Welcome to Changzhou Hongxinyutai Precision Mold Co., Ltd., a professional manufacturer established in 2017 with a 1,000–3,000 square meter facility and a dedicated team of 51–100 employees. We specialize in high-precision injection molds, and our Advanced Micro Motor Stator Bracket Injection Mold is engineered to deliver exceptional performance for demanding applications. With a focus on precision geometric tolerances and innovative side slider tooling, this mold is designed to produce complex micro motor stator brackets with repeatable accuracy, reduced cycle times, and long tool life. Our molds serve clients across North America, South America, Europe, Southeast Asia, and beyond, and we are proud to offer a product that meets the rigorous standards of the automotive and micro-motor industries.
Why choose our micro motor stator bracket mold? It combines advanced engineering, robust construction, and customizable features to meet your exact production requirements. Below we detail the key characteristics and benefits.
Key Features & Technical Specifications
- Precision Geometric Tolerance: Achieve dimensional accuracy within ±0.005mm, ensuring perfect fit and function of micro motor stator brackets.
- Integrated Side Slider Mechanism: Designed for complex undercuts and side features, enabling one-shot molding without secondary operations.
- High-Performance Steel Materials: Available in S136, H13, or other premium grades to withstand high injection pressure and thermal cycling.
- Advanced Cooling System: Conformal cooling channels reduce cycle time by up to 30% while maintaining uniform part quality.
- Flexible Runner Options: Hot runner or cold runner systems available, optimized for material savings and ease of maintenance.
- Customizable Mold Base: Compatible with LKM, HASCO, DME, or customer-specific standards.
- TS16969 Quality Assurance: Manufactured under our TS16969-certified process, ensuring traceability and continuous improvement (IATF16949 compliance can be arranged upon request).
- Long Tool Life: With proper maintenance, tool life exceeds 1,000,000 shots, providing excellent return on investment.
| Parameter | Specification |
|---|---|
| Mold Weight | 500 kg – 2,000 kg (customizable) |
| Maximum Part Size | Up to 200 mm × 150 mm × 100 mm |
| Injection Pressure | Up to 2,000 bar |
| Surface Finish | SPI A1, A2, or customer specified |
| Standard Compliance | TS16969 / IATF16949 (upon request) |
Our mold delivers tangible benefits to your production line:
- Reduced scrap rate due to consistent cavity filling and precise geometric control.
- Faster time-to-market with efficient cooling and optimized cycle times.
- Lower maintenance costs thanks to robust steel selection and wear-resistant coatings (optional).
- Flexibility to mold various engineering plastics, such as PA66, PBT, LCP, and PPS.
- Full technical support from our experienced engineering team, including mold flow analysis and trial runs.
Trusted by Global Clients
Since 2017, Changzhou Hongxinyutai Precision Mold Co., Ltd. has been serving customers in over 10 international markets, including North America, Europe, Southeast Asia, and Africa. Our factory spans 1,000–3,000 square meters and is equipped with advanced CNC machines, EDM, and CMM inspection equipment. With a team of 51–100 skilled professionals, we have delivered hundreds of precision molds for micro motors, automotive components, and consumer electronics. Our commitment to quality is reflected in our TS16969 certification and strict adherence to geometric dimensioning and tolerancing (GD&T) standards.
Contact us today to discuss your specific stator bracket design. We offer free mold flow analysis, competitive pricing, and fast lead times from our manufacturing base in Changzhou, Jiangsu, with convenient shipping through Jiangsu, Shanghai, and Shenzhen ports. Let us help you achieve precision manufacturing excellence.
Frequently Asked Questions
-
What materials can be used with this mold?
The mold is suitable for engineering plastics like PA66, PBT, LCP, PPS, and other high-temperature thermoplastics. Material-specific design adjustments can be made. -
Can the side slider handle deep undercuts?
Yes, the side slider mechanism is engineered to handle undercuts up to 15mm depth, depending on the part geometry. We recommend sharing your 3D model for a feasibility study. -
What is the typical lead time?
Standard lead time is 30–45 business days from design approval. Expedited delivery is available upon request. -
Do you provide mold flow analysis?
Yes, we include mold flow analysis (Moldflow®) as part of our service to optimize gate location, fill balance, and cooling efficiency. -
Is the mold compatible with IATF16949 requirements?
While our standard production follows TS16969, we can implement IATF16949-specific documentation and controls upon request to meet your automotive OEM requirements. -
What is the warranty period?
We offer a 12-month warranty against manufacturing defects, with technical support available for the life of the tool. -
Can you manufacture multiple cavities for high-volume production?
Absolutely. We can design and build single, two, four, or more cavities based on your annual volume requirements, while maintaining precision and consistency. -
How do you ensure dimensional accuracy?
We use CMM (Coordinate Measuring Machine) and optical inspection for all critical dimensions, and every mold undergoes a trial run with report before shipment.
