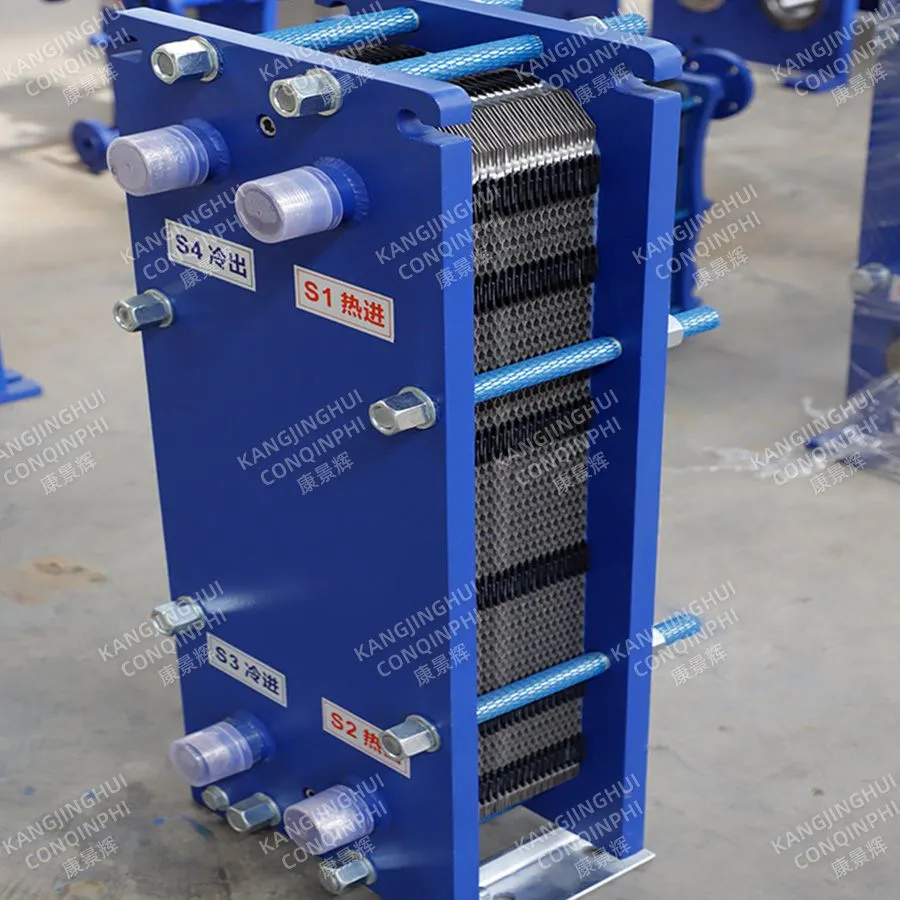

High Energy Efficiency Plate Heat Exchanger with 2-Year Warranty, Mill Test Report, 304SS Stocked – Qingdao Conqinphi Environmental Technology Group Co., Ltd., a leading manufacturer established in 2015 with a 10,000-30,000 sqm factory and over 300 skilled employees, proudly presents this premium plate heat exchanger. Engineered for maximum thermal transfer and minimal energy loss, our product combines durable 304 stainless steel construction with a proven design that reduces operational costs. Backed by a 2-year warranty and supplied with a Mill Test Report for material traceability, this heat exchanger is an ideal solution for demanding industrial applications. With stocked inventory in Qingdao port, we ensure fast delivery to global markets.
- High Thermal Efficiency: Corrugated plate design creates turbulent flow, enhancing heat transfer coefficient up to 5 times that of shell-and-tube exchangers, saving energy and space.
- 304 Stainless Steel Construction: Corrosion-resistant plates and frames ensure long service life in water, oil, and chemical applications.
- 2-Year Warranty & Mill Test Report: Each unit comes with a mill certificate verifying material grade and mechanical properties, plus comprehensive after-sales support.
- Stocked for Quick Shipment: Common sizes available in stock at Qingdao warehouse, ready for immediate export to North America, Europe, Southeast Asia, and beyond.
- Customizable Options: Plate pattern, gasket material (NBR, EPDM, Viton), and connection sizes can be tailored to your specific process requirements.

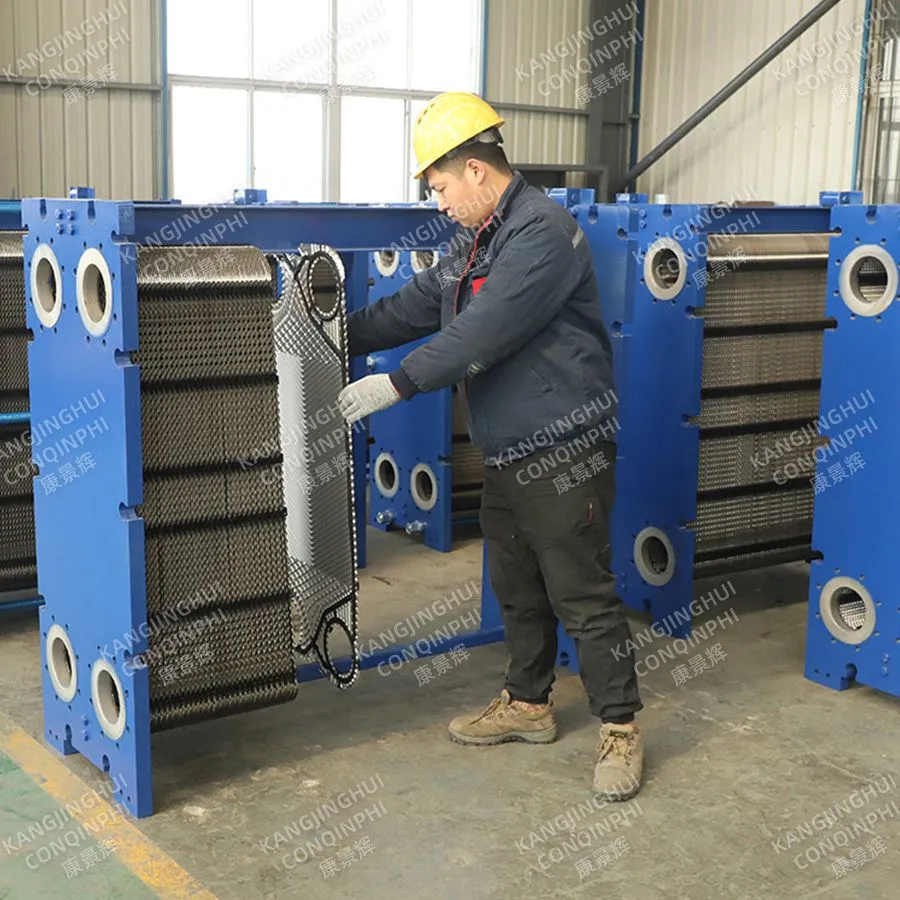

- Compact & Easy Maintenance: Removable plate pack allows easy cleaning, inspection, and expansion without disturbing piping.
| Parameter | Value |
| Max Operating Pressure | 1.0 MPa (10 bar) |
| Max Operating Temperature | 180°C (with EPDM gasket) |
| Plate Thickness | 0.4 - 0.6 mm |
| Heat Transfer Coefficient | 3000 - 7000 W/m²·K |
| Plate Area per Unit | 0.1 - 2.0 m² (customizable) |
| Connection Size | DN25 - DN200 |
Product Advantages & Customer Benefits: By choosing our plate heat exchanger, you benefit from up to 50% reduction in energy consumption compared to traditional exchangers, thanks to optimized fluid dynamics. The 304SS material resists pitting and stress corrosion, ensuring reliable performance even in aggressive environments. With a 2-year warranty, your investment is protected. Additionally, the included Mill Test Report provides full material traceability required for many quality audits. Our stocked inventory means short lead times—typically within 10 days for standard models. We serve diverse industries: HVAC, dairy processing, brewery, chemical, pharmaceutical, and power generation.
Trust Built on Excellence: Qingdao Conqinphi Environmental Technology Group Co., Ltd. has been a trusted manufacturer since 2015, with a factory spanning 10,000-30,000 m² and an annual export value of US$10-50 million. Our team of 201-300 professionals ensures rigorous quality control at every stage. We hold multiple certifications including ISO9001, ISO14000, OHSAS18001, HACCP (others available upon request), demonstrating our commitment to quality, environment, and safety. With major markets across North America, South America, Europe, Asia, and Africa, we have successfully delivered thousands of heat exchangers worldwide. Contact us today for a competitive quotation or technical consultation—your satisfaction is our priority.
Frequently Asked Questions
-
Q1: What makes this plate heat exchanger energy efficient?
A: The corrugated plate design creates turbulent flow at low velocities, significantly improving heat transfer coefficient while reducing pumping power. This results in lower energy consumption compared to conventional designs. -
Q2: Is the 2-year warranty inclusive of all parts?
A: Yes, the warranty covers manufacturing defects on plates, frames, and connections for 2 years from shipment. Gaskets are considered consumables but are covered for 1 year. Please refer to our warranty policy for full details. -
Q3: What does the Mill Test Report contain?
A: The MTR provides chemical composition and mechanical properties of the 304 stainless steel used for plates and frames, including heat number, tensile strength, yield point, and elongation. -
Q4: Are these heat exchangers suitable for food-grade applications?
A: Absolutely. With 304SS plates and optional FDA-approved gaskets, our heat exchangers meet hygienic standards for dairy, beverage, and food processing. We can also supply relevant certificates upon request. -
Q5: What gasket materials are available?
A: We offer NBR (standard), EPDM (for hot water/steam), and Viton (for aggressive chemicals). Gasket selection depends on your fluid temperature and compatibility. -
Q6: Do you provide OEM/ODM service?
A: Yes, we are a flexible manufacturer. We can customize plate size, port configuration, and even provide private labeling. Minimum order quantity may apply. -
Q7: What is the typical lead time for stocked items?
A: For standard sizes in stock, we can ship within 5-10 working days after payment. Custom orders typically take 15-25 working days. -
Q8: Can you provide third-party inspection?
A: Yes, we welcome inspections by SGS, BV, or your appointed agency. Our factory is equipped for on-site testing and quality verification.
