Help CenterCNC Spark Erosion Machine 50A Max Current, 600kg Max Workpiece Weight, C3 Ball Screw, Linear Guide Rail
Product Spotlights
Related Products
-
CNC Spark Erosion Machine With 0.001mm Positioning Accuracy, Automatic Electrode Feed, 30A–120A Adjustable CurrentNegotiableMOQ: 1 Unit -
CNC Spark Erosion Machine With 18-Month Warranty, Free Spare Parts Kit, Technical Support via Video Call, CE MarkedNegotiableMOQ: 1 Unit
-
CNC Spark Erosion Machine for Mold Manufacturing: Precision Cavity Machining, Auto Depth Control, 24/7 OperationNegotiableMOQ: 1 Unit
-
CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power SupplyNegotiableMOQ: 1 Unit
-
CNC Spark Erosion Machine With 1-Year Warranty, On-Site Training, Factory Direct Price, Standard Compliant ComponentsNegotiableMOQ: 1 Unit

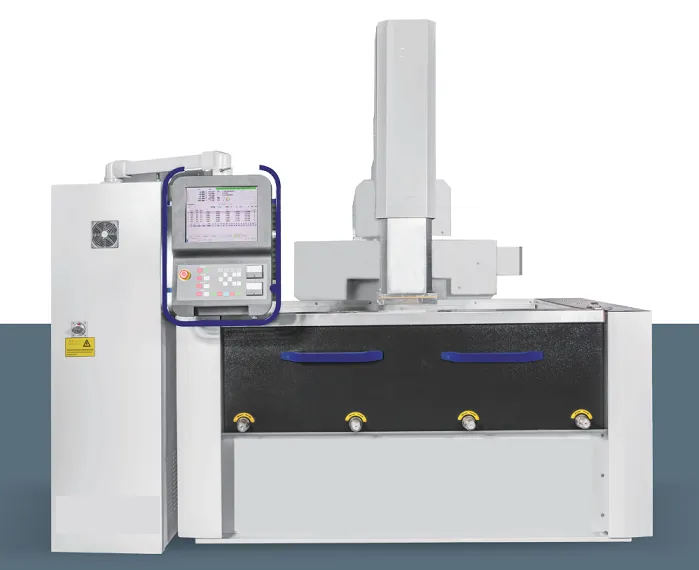

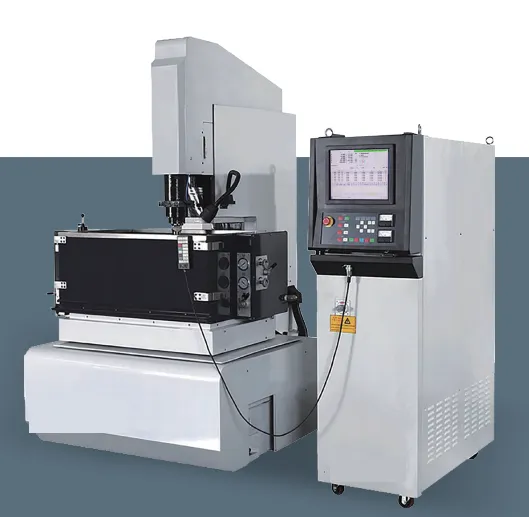

Welcome to Suzhou Excellence Intelligent Technology Co., LTD – your trusted partner in precision EDM solutions. We proudly present our CNC Spark Erosion Machine, engineered with a 50A maximum current for fast and efficient machining, a 600kg maximum workpiece weight to handle demanding tasks, and a C3 precision ball screw combined with linear guide rails for unmatched accuracy and rigidity. This machine is designed to boost your productivity while maintaining the highest standards of quality control.
Backed by over a decade of industry experience (since 2013) and a factory spanning 3,000–5,000 square meters, we deliver reliable equipment that meets global market demands. Our annual export value of US$5–10 million reflects the trust of customers across North America, South America, Europe, Asia, Africa, and Oceania. With ISO9001 certification, we ensure consistent manufacturing processes and product reliability.
Key Features & Technical Specifications
- High-Speed Erosion: 50A generator delivers powerful sparks for rapid material removal, reducing cycle times by up to 30% compared to conventional 30A machines.
- Heavy-Duty Capacity: Supports workpieces up to 600kg without compromising stability – ideal for large dies and molds.
- Precision Drive System: C3 grade ball screws (accuracy grade 3 per ISO) ensure ±0.003mm positioning repeatability. Linear guide rails provide smooth, zero-backlash motion.
- Robust Construction: Rigid cast iron base minimizes vibration, enhancing surface finish and electrode life.
- Intelligent Control: User-friendly CNC interface with adaptive spark control, real-time monitoring, and optional automatic lubrication system.
- Flexible Configurations: Worktable size, travel ranges, and electrode holder can be customized upon request to fit your specific application.
| Parameter | Value |
|---|---|
| Maximum Current | 50 A |
| Max Workpiece Weight | 600 kg |
| Ball Screw Grade | C3 |
| Guide Rail Type | Linear Guide Rail |
| Worktable Size (L×W) | 800×400 mm (customizable) |
| X/Y/Z Travel | 400×300×250 mm |
| Max Electrode Weight | 150 kg |
| Power Supply | 3-phase 380V/50Hz (optional 220V) |
| Control System | CNC with touch screen |
| Machine Weight (approx.) | 3,500 kg |
Why choose our CNC Spark Erosion Machine? The combination of a 50A power supply and C3 ball screws gives you the ability to machine hardened steel, carbide, and exotic alloys with exceptional surface finish (Ra ≤ 0.2 µm achievable). The linear guide rail system ensures consistent performance even under heavy loads, reducing downtime for maintenance. Whether you are producing injection molds, die-casting tools, or aerospace components, this machine delivers the precision you need.
Frequently Asked Questions (FAQ)
Q1: What is the maximum electrode weight the machine can handle?
A: The standard configuration supports up to 150 kg. Heavier electrodes can be accommodated with optional modification – please contact our sales team for custom solutions.
Q2: Does the machine require special training to operate?
A: Our CNC control system is designed with an intuitive interface, and we provide comprehensive manuals and video tutorials. Additionally, we offer on-site training and remote support to ensure your team gets up to speed quickly.
Q3: What materials can be processed with this EDM machine?
A: It can cut all conductive materials including steel, stainless steel, hardened tool steel, carbide, copper, and graphite electrodes. The optimized spark parameters ensure minimal electrode wear and excellent surface finish.
Q4: What is the expected positioning accuracy?
A: Thanks to the C3 ball screws and preloaded linear guides, the machine achieves positioning repeatability of ±0.003 mm and positioning accuracy of ±0.005 mm per 300 mm travel.
Q5: How often does the machine need maintenance?
A: Routine maintenance includes checking dielectric fluid level and cleanliness, cleaning filters, and lubricating guide rails. Our recommended schedule is every 500 operating hours. The machine is built for durability with self-diagnostic alerts.
Q6: Can the machine be customized for specific applications?
A: Yes, we offer customization options such as larger worktable, extended travel, specialized electrode holders, and automatic tool changer. Please provide your requirements and we will tailor a solution.
Q7: What is the warranty period and after-sales support?
A: We provide a 12-month warranty from the date of shipment, covering defects in materials and workmanship. Our technical team is available via email, phone, or video call. We also stock spare parts for quick delivery.
Q8: What are the shipping ports and delivery time?
A: We ship from Shanghai, Ningbo, Shenzhen, or Qingdao ports. Typical lead time is 30–45 days after confirmation of order, depending on configuration and quantity.
Trust in Suzhou Excellence – Your Partner in Precision Manufacturing
Our company has been serving global clients since 2013 with a commitment to quality and innovation. With ISO9001 certification, a 3,000–5,000 m² factory, and an annual export value exceeding US$5 million, we have earned a reputation for reliable EDM solutions. Every machine undergoes rigorous testing before shipment. We invite you to contact us for a quotation or to schedule a factory visit. Let us help you achieve superior results with our CNC Spark Erosion Machine.
