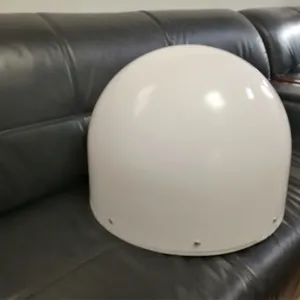

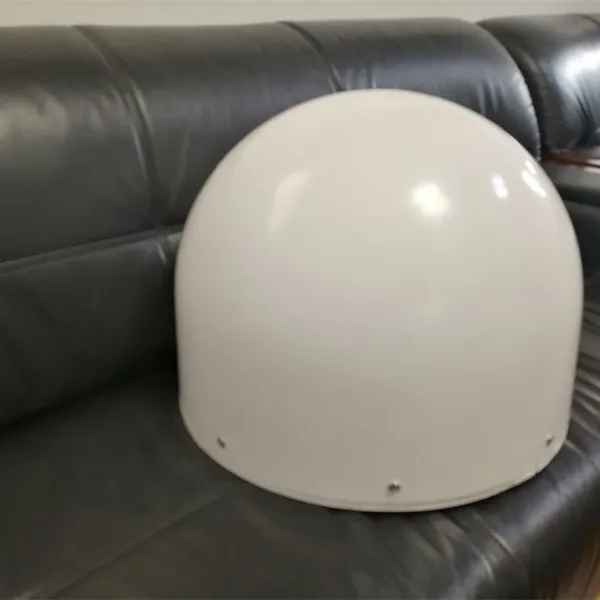

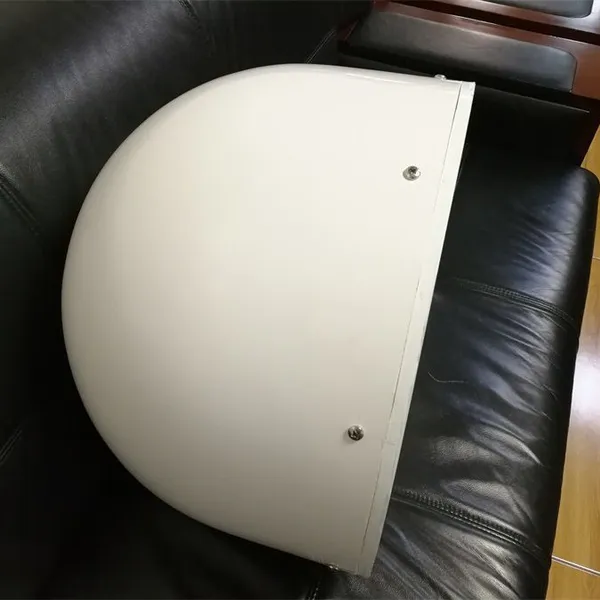

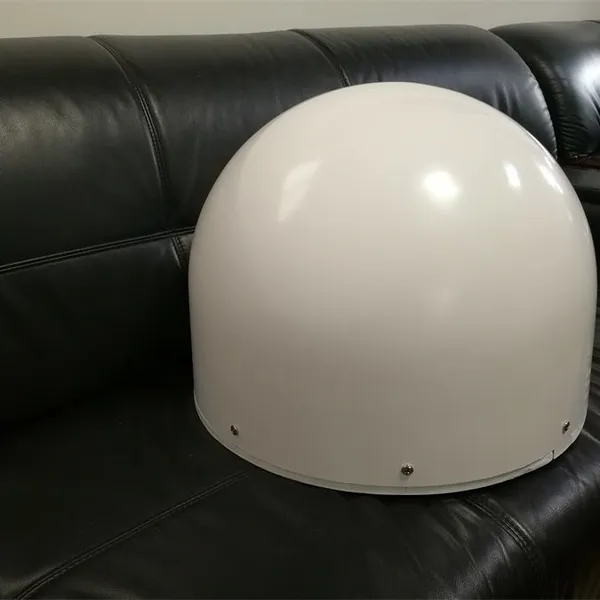

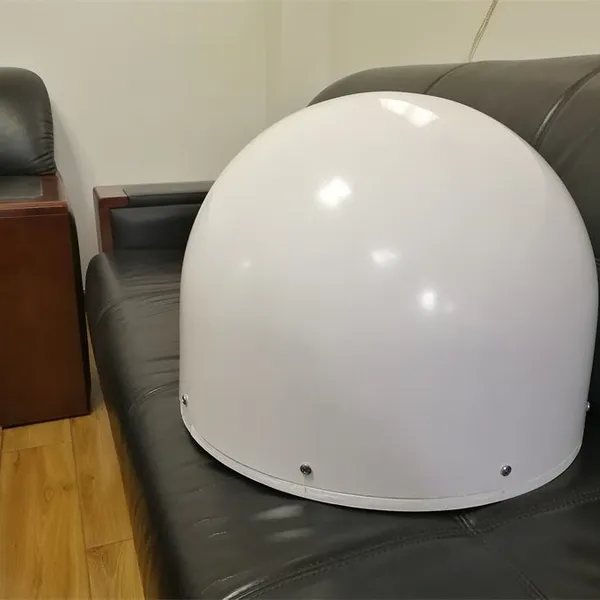

316 Large Bullet FRP Radome is a large bullet-head shell designed for 1~4GHz GNSS detection antennas, applied in laboratory test equipment and outdoor monitoring devices.
High-performance FRP composite offers low electromagnetic signal attenuation, preserving detection accuracy. The streamlined bullet structure reduces wind pressure, enhancing stability in open areas.
High mechanical strength, waterproof and anti-aging properties ensure long service life. Custom inner cavity size and wall thickness can be made for different detection antenna systems.
Product Details
Serial number |
Project |
Features and Specifications |
Serial number |
Project |
Features and Specifications |
Serial number |
Project |
Features and Specifications |
1 |
Name |
Type 500 radome with base |
8 |
Appearance |
Colored gelcoat |
15 |
Dielectric constant |
4.5–4.9 |
2 |
Specifications |
500*372㎜ |
9 |
Resin |
Modified epoxy resin |
16 |
Operating frequency |
1 MHz - 4 GHz |
3 |
Housing wall thickness |
5 mm |
10 |
fiber |
E-glass fiber |
17 |
Transmittance (or insertion loss) |
≥90% |
4 |
Weight |
8.2 kg ± 0.5 kg |
11 |
Nomex honeycomb |
/ |
18 |
Operating temperature |
-40℃–80℃ |
5 |
Structure |
Single-layer |
12 |
Insertion part |
Spring nut 8*M6*8 |
19 |
Service life |
≥15 years |
6 |
Material |
Fiberglass |
13 |
Accessories |
304 bolt 8×M6×25 |
20 |
Detailed dimensions |
See the drawing. |
7 |
Color |
white |
14 |
Packaging |
Thickened cardboard box |
