Specifications
1.It likes a suitcase and is easy to carry.2.This system uses modular open design thought.
3.Suitable for electronic lab

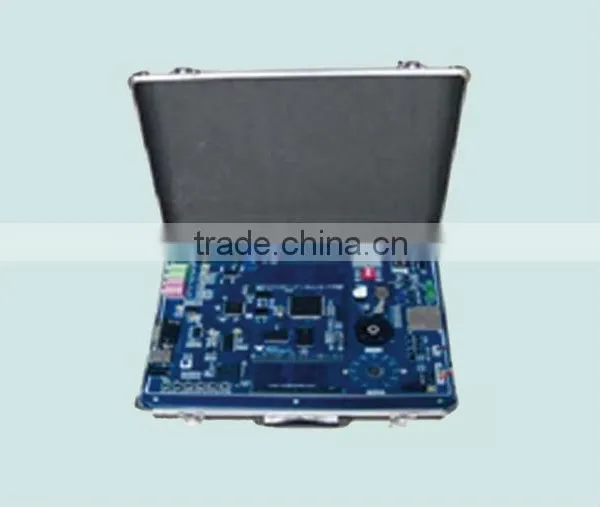

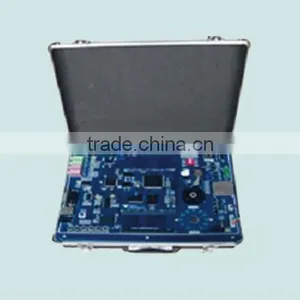

Electronic Training Kit, High Performance Embedded DSP Experiment Box
1. Product structure:
The experiment box structure, easy to carry.
2. Main parameters:
Size: 500mm (L) x 340mm (W) x 165mm (H);
The power supply: single-phase AC 220V±5% 50Hz ≤45VA.
3. Main composition:
Fixed-point TMS320F2812, extension 256 K * 16 SRAM, 512 K * 16 FLASH, 256 M * 8 bits of nand FLASH memory, integration Altera company CPLD chip EPM3128ATC100 and provide download interface, 8 segment digital tube interface, led light diode, independent buttons, a buzzer and reset circuit, RS-232 interface, CAN BUS 2.0 interface, 485 interface, IIC interface, RTC interface, AD input interface, other AD interface extended out, DA output interface , audio input/output interface, 12864 graphics LCD interface, 1602 characters LCD interface, a dc motor control interface (motor fixed in the experiment box), a stepping motor control interface (motor fixed in the experiment box), 6 road PWM output interface, SD card interface, USB interface, from 100 M network interface;
4. Main functions:
CSS software application experiment, DSP experiment, algorithm experiment;
5. Annex:
Experimental download line, experimental jump line, commonly used tools, software disc, the product specification;
6. Training project:
1) The assembly language experiment;
2) C language experiment;
3) C language and assembly call each other experiments;
4) DSP basic mathematical operations;
5) A buzzer experiment;
6) Key experiment;
7) The timer experiment;
8) External interruption experiment;
9) Serial interface communication experiment;
10) 485 communication experiment, etc..
