Help CenterCWX-15Q/N Series 8mm Low Voltage of 12vDC City Mini Solenoid Motorized Ball Valve With Electric Actuator
Related Products
-
220v/AC Electric Actuator Ball Valve for Automatic Control With HAVC,water TreatmentNegotiableMOQ: 1 Piece -
CTB-005 Motorized Ball Valve Flange for Water Treatment ,water Filter SystemNegotiableMOQ: 1 Piece
-
Electric Ball/butterfly Valve for Water Treatment,HAVC,fluid EquipmentNegotiableMOQ: 1 Piece
-
Electric+manual Override Automatical Shut off Solenoid Ball Valve CWX-25SNegotiableMOQ: 2 Pieces
-
Plastic Industrial Grade CTF-002 Motorized Ball Valve for Water TreatmentNegotiableMOQ: 1 Piece

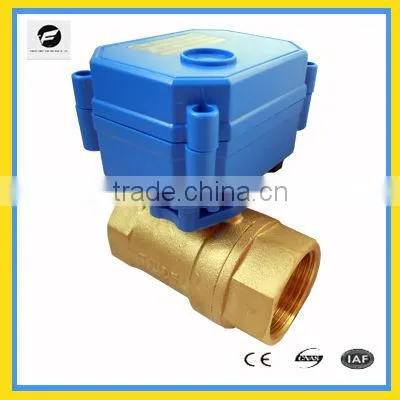

Mini Motorized Ball Valve, Size from 1/4" to 1". AC/dc 5V, 12V, 24V, 110V, 220V. 2-way and 3-way, brass, stainless steel, CPVC
· Features:
o Mini dimension suits for small equipment
o Patented technology-floating seal structure
o Long service life 700,000 to 100,000 circles
o Low working current, only 60 to 80mA
o IP67 and F type are available
o Manual override function is safe and easy
· Applications:
o HVAC
o Water treatment
o Small equipment for automatic control
o Replacing solenoid valve, particularly when solenoid cannot work reliably
· Technical parameters:
o Size: 1/2 to 1 inches
o Material: stainless steel (304, 316), brass, PPO
o Voltage: 5, 12, 24, 110 to 220V AC/DC
o Working pressure: 1.0 or 1.6mPa
o Actuator rotation: 90 degree
o Rotation direction: double acting
o Power: maximum 5W
o Manual override: available
· Material of main parts:
· Actuator: heat-resistant ABS
· Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .
· Body: brass or stainless steel
· Ball: brass or stainless steel
· Stem: brass or stainless steel
mini motorized valve,actuated valve,automatic valve,control valve,motor operated valve,motor actuated valve,hydraulic valve
