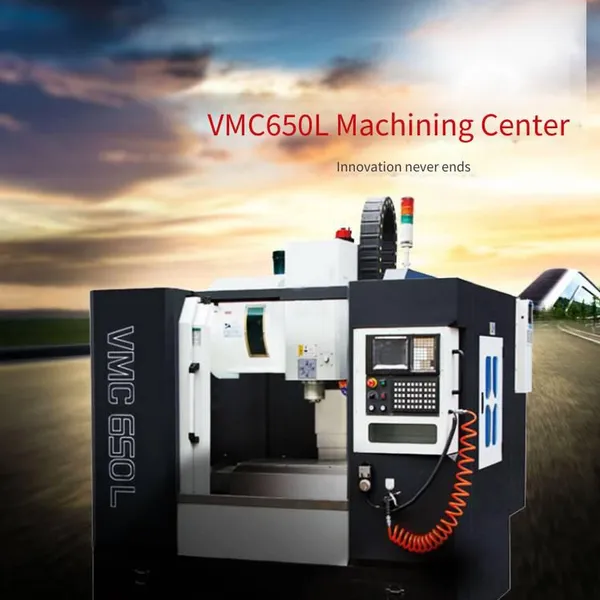

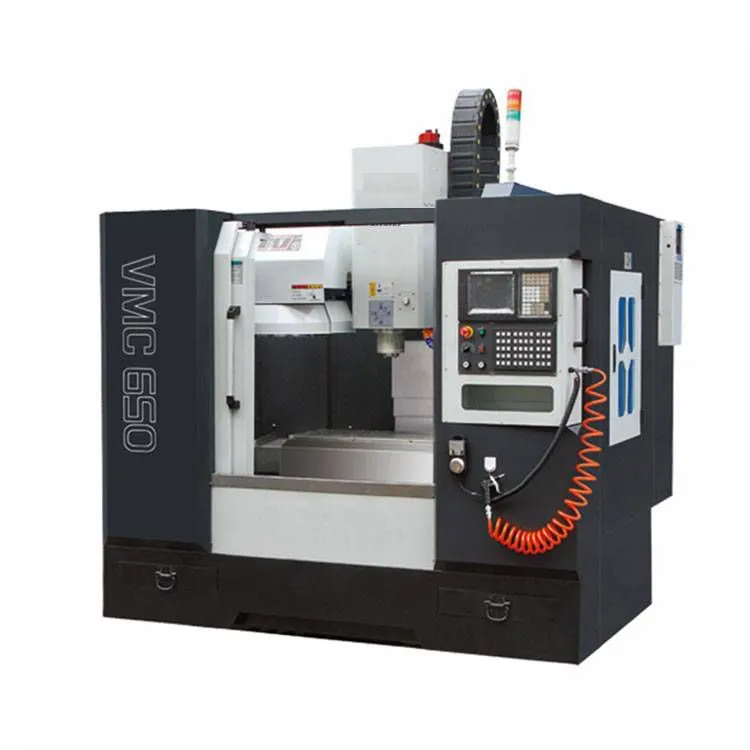

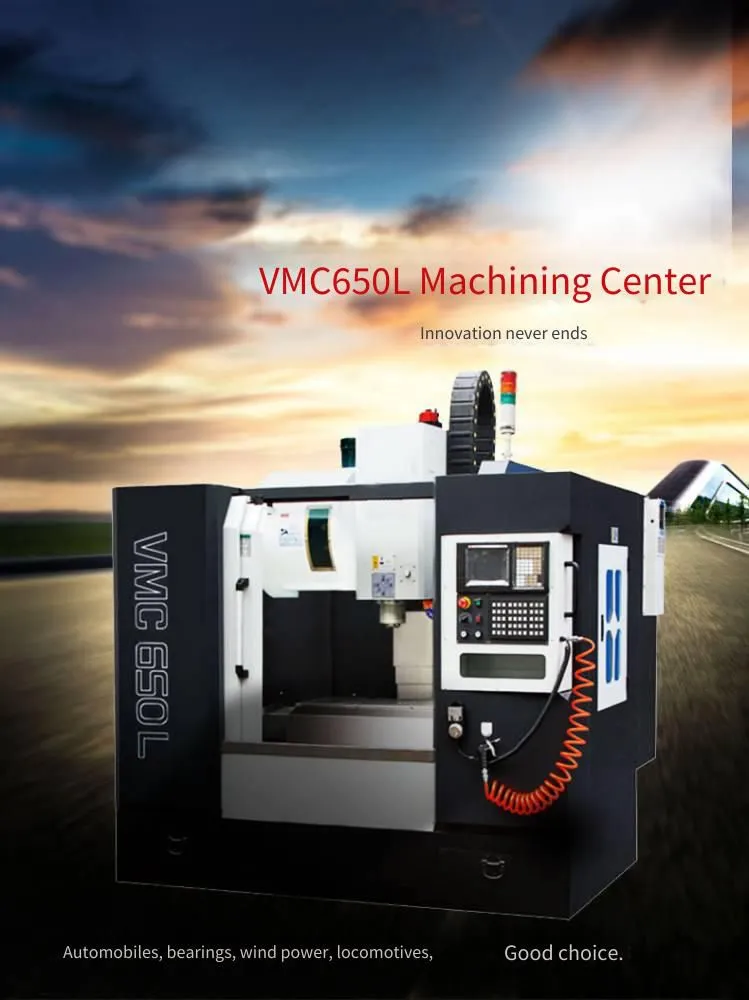

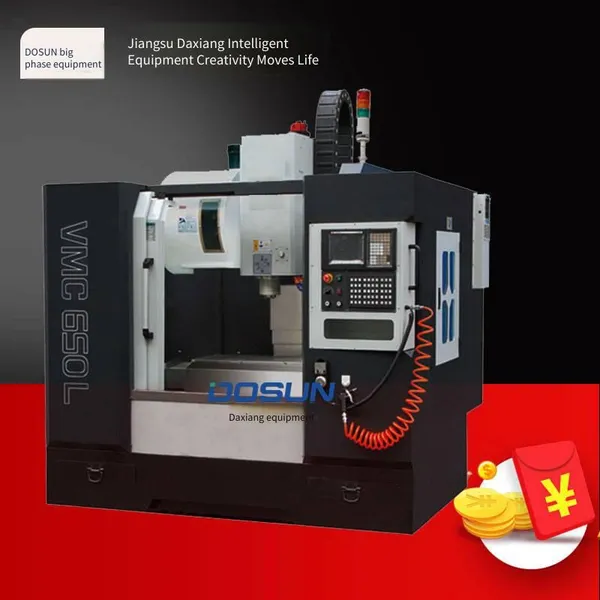

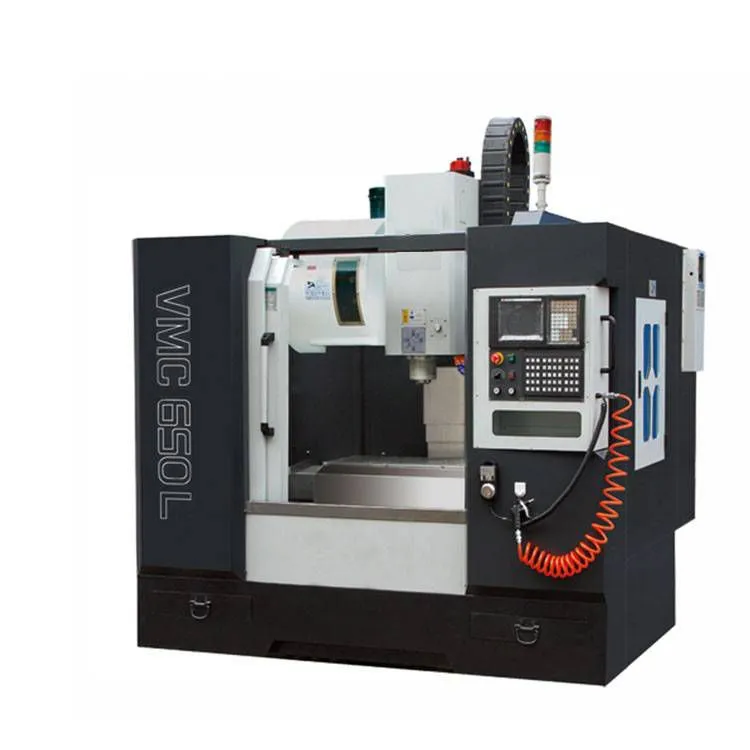

VMC650 CNC Milling Machine / Machining Center
I. Product Introduction and Application
This product X , Y , Z three axes adopt servo direct - coupled control semi - closed - loop vertical structure. All three axes are high - rigidity rectangular guide rails, which have large load capacity, wide span and high precision. The sliding surface is pasted with plastic. The spindle is driven by a servo motor through a synchronous belt, which can realize one - time clamping of various complex parts such as discs, plates, shells, cams, molds, etc., and can complete various processes such as drilling, milling, boring, expanding, reaming, rigid tapping, etc. It is suitable for the production of multi - variety and small - to - medium - batch products and can meet the processing requirements of complex and high - precision parts. It can be equipped with a fourth rotary axis to meet the processing requirements of special parts.
II. Main Structural Features
1. The main basic parts such as the base, slide, workbench, column, and spindle box are made of HT300 cast iron; the base has a box - type structure, and the compact and reasonable symmetrical rib structure ensures the high rigidity and anti - bending and shock - absorbing performance of the basic parts; the A - type bridge - spanning column and the internal grid - shaped ribs effectively guarantee the rigidity and precision during the powerful cutting of the Z axis; the basic parts are molded by resin sand and subjected to aging treatment, which provides a guarantee for the long - term stability of the machine tool's performance.
2. The guide rails in the X , Y , Z directions are all plastic - pasted rectangular guide rails, which have characteristics such as high rigidity, low friction, low noise, and low temperature rise change. Combined with automatic forced lubrication, the accuracy and service life of the machine tool are improved.
3. direction is balanced by adding counterweights to ensure smooth and stable movement of the headstock; The Z direction drive motor is equipped with a power-off braking device;
4、 The X , Y , and Z three directions of feed adopt high-precision and high-strength internal circulation double-nut preloaded large-lead ball screws, with high feed speed; The drive motor is directly connected to the screw through an elastic coupling. The feed servo motor directly transmits power to the high-precision ball screw without backlash, ensuring the positioning accuracy and synchronization of the machine tool;
5、 A high-speed, high-precision, and high-rigidity spindle unit is adopted, with strong axial and radial load-bearing capacity, and the rotational speed can reach 8000rpm ;
6、 The spindle adopts a central air-blowing structure. When the spindle releases the tool, the central high-pressure gas is quickly used to clean the inner taper of the spindle, ensuring the accuracy and service life of tool clamping;
7、 The X , Y , and Z three directions of guide rails and screws are all equipped with protective devices to ensure the cleanliness of the screws and guide rails, and ensure the transmission, motion accuracy and service life of the machine tool;
8、 The external protection of the machine tool adopts a full-protection structure design, which is convenient to operate, safe and reliable, and beautiful;
9、 A reliable centralized automatic lubrication device is adopted to automatically lubricate each lubrication point of the machine tool intermittently at regular time and quantity. The lubrication time can be adjusted according to the working conditions;
10、 Products produced by professional manufacturers in Taiwan are adopted 16 Pieces of bamboo hats (standard configuration) or 16 Pieces of disc-type tool magazines. The tool change is accurate, with short time and high efficiency. After millions of operation tests, it meets the reliability requirements. It is equipped with a damping structure, which can reduce the impact during movement and ensure the service life of the tool magazine. It is pneumatically driven, easy to use, and changes tools through the shortest path.
11、 An oil-water separation device is adopted, which can separate most of the collected lubricating oil from the coolant, prevent the rapid deterioration of the coolant, and is beneficial to environmental protection.
12、 The machine tool operating system adopts the principle of ergonomics. The operation box is independently designed and can rotate by itself, making it easy to operate.
