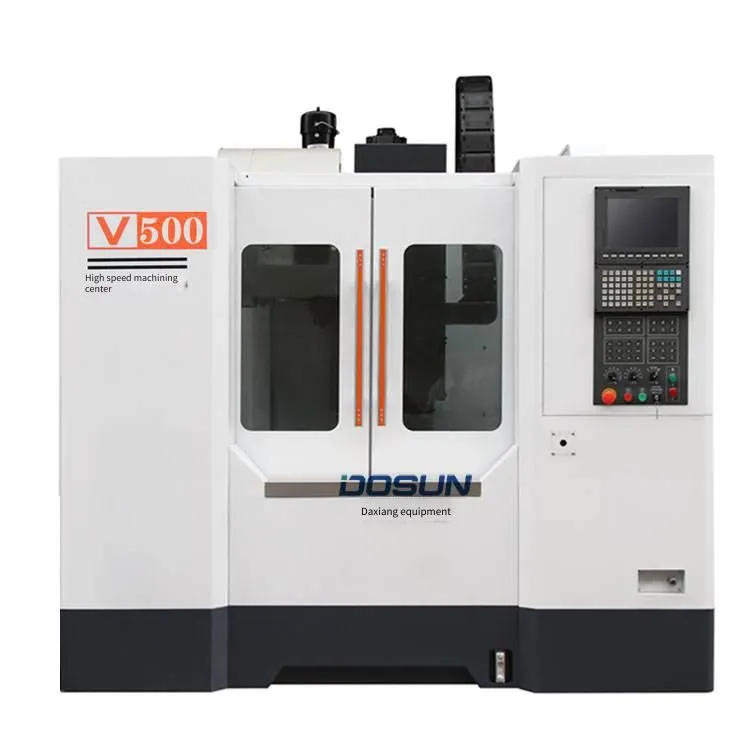

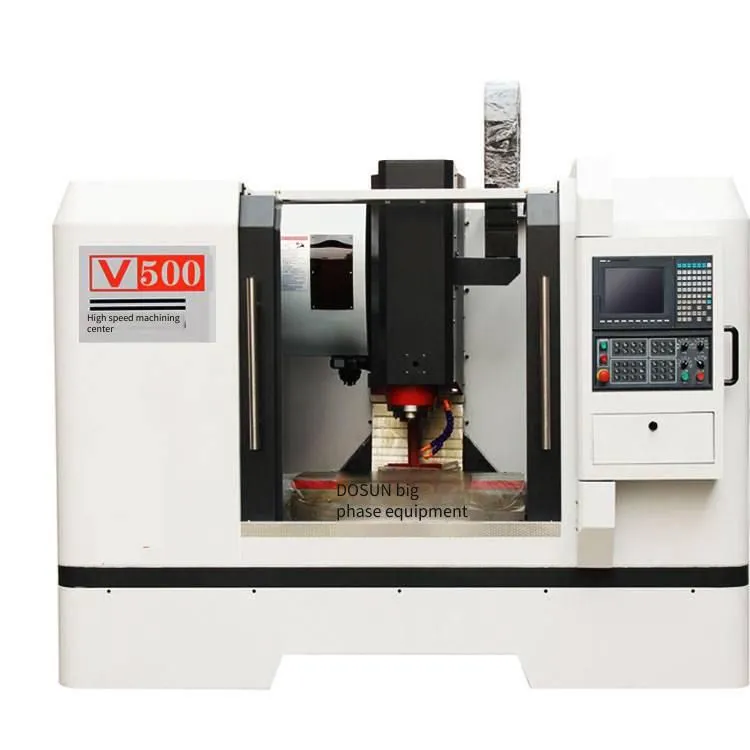

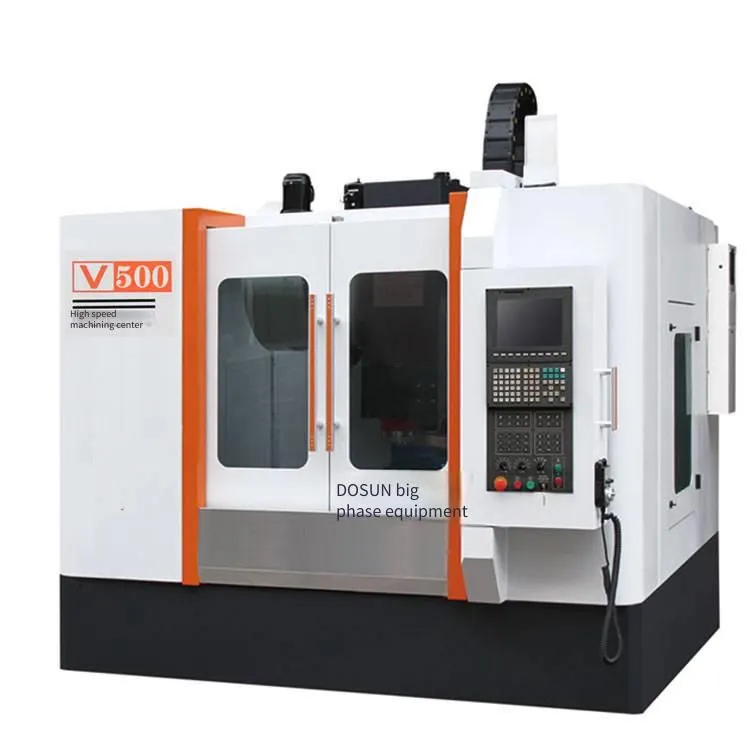

VWC500 Vertical Machining Center (Linear Rail Machine)
I. Design Technical Parameters
Item Unit Technical Parameters
Workbench Size mm 700×260
Workbench Load Capacity (Uniformly Distributed) kg 100
Workbench T-Slot (Number of Slots/Width/Pitch) 3-14×80
X-Axis Travel mm 500
Y-Axis Travel mm 300
Z-Axis Travel mm 450
Spindle Specification BT40-120
Spindle Speed r/min 8000
Recommended Spindle Motor Power kw 4
Distance from Spindle Nose to Workbench Surface mm 100-550
Distance from Spindle Centerline to Column Guide Rail Surface mm 310
Three-Axis Rapid Movement (X/Y/Z) m/min 36/36/36
Cutting Feed Speed mm/min 1-4000
Three-Axis Lead Screw Pitch (X/Y/Z) mm XY: R2516 Z: R3216
Recommended Three-Axis Motor Torque (X/Y/Z) Nm 10
Positioning Accuracy and Repeatability mm ≤0.01 and ≤0.005
Operating Air Pressure mpa 0.6
Machine Tool Weight (Approx.) kg
Optical Machine External Dimensions mm
II. Main Machine Tool Accessories
Serial Number Configuration Specification Details Manufacturer Origin
1 Special Bearings for Three-Axis Lead Screws (2 in Front and 2 in Back) Made in China
2 Three-Axis Ball Screws (Grade C4) XY: R2516 Z: R3216 Made in China
3 Three-Axis Guide Rails X/Y/Z: Linear Rails Shangyin
4 Spindle Unit Belt Type
BT40*120-8000rpm Danquan Taiwan
5 Tool Changer Cylinder 3T Taiwan
6 Three-Axis Telescopic Covers Made in China
7 Damping Automatic Lubrication System DZ-1 Made in China
8 Three-Axis Lock Nuts YSF M20*1.5P Yingxi Taiwan
9 Three-axis couplings, 3 pieces
10 Anchor bolt seats + anchor bolts + nuts, 6 sets, Made in China
11 Tool magazine BT40-12T, Made in Taiwan
