Changzhou Hongxinyutai Precision Mold Co., Ltd., established in 2017 with a 1,000-3,000 sqm factory and 51-100 skilled employees, presents the Commercial Vehicle Engine Cooling Dual Port Joint IATF16949 PP TD30 Plastic Assembly Multi Cavity Tooling. This advanced mold solution is specifically engineered to produce high-performance dual port joints for commercial vehicle engine cooling systems, utilizing premium PP TD30 material. By combining precision multi-cavity design with strict IATF16949 quality standards, our tooling ensures consistent output of reliable cooling components that meet the demanding requirements of the Indonesian and global markets.
Our mold delivers exceptional value through enhanced productivity, reduced cycle times, and superior part quality. The multi-cavity configuration allows simultaneous production of multiple components, significantly boosting efficiency for volume manufacturing. Each cavity is precisely machined to maintain tight tolerances, ensuring every dual port joint exhibits uniform dimensions and optimal sealing performance. With robust construction and advanced cooling channel design, this tooling minimizes downtime and extends service life even under high-volume production.
Key Features & Technical Specifications
- Material: Premium PP TD30 – excellent heat resistance, chemical stability, and dimensional stability for engine cooling applications.
- Cavity Count: Customizable multi-cavity design (e.g., 4, 8, 12 cavities) to match your production volume requirements.
- Mold Life: Designed for over 1,000,000 cycles with proper maintenance, ensuring long-term cost-effectiveness.
- Cooling System: Optimized conformal cooling channels reduce cycle time by up to 20% and improve part quality.
- Precision: Machining tolerance within ±0.01mm, guaranteeing consistent part dimensions and sealing performance.
- Ejection System: Reliable hydraulic or mechanical ejection tailored for complex dual port joint geometry.
- Compliance: Designed and manufactured under IATF16949 quality management system requirements.
- Maintenance: Modular design for easy replacement of wear parts, reducing downtime.
| Parameter | Specification |
|---|---|
| Mold Material | S136, 2344, or equivalent hardened steel |
| Runner System | Hot runner or cold runner (customer choice) |
| Gate Type | Pin point, submarine, or edge gate |
| Surface Finish | SPI A1 to C3 (customizable) |
| Shrinkage Rate | Based on PP TD30 material data sheet |
| Injection Machine | Compatible with standard injection molding machines (specify tonnage) |
| Lead Time | 45-60 days (depending on complexity) |

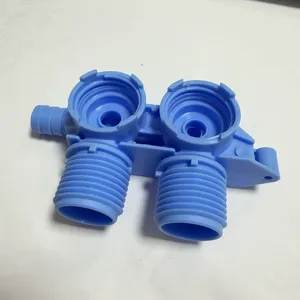

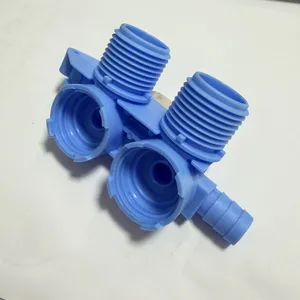

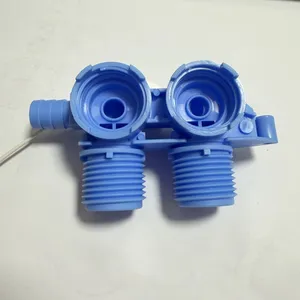

The dual port joint is a critical component in engine cooling systems, ensuring proper coolant flow between radiator, engine block, and heater core. Our multi-cavity tooling produces joints with smooth internal channels and robust outer geometry, minimizing pressure drop and preventing leaks. The PP TD30 material offers excellent resistance to ethylene glycol-based coolants and high temperatures up to 120°C, making it ideal for continuous operation in harsh underhood environments. By using our mold, customers achieve consistent weight, no flash, and easy assembly with standard hose clamps.
Why Choose Changzhou Hongxinyutai Precision Mold Co., Ltd.?
As a dedicated manufacturer with a 1,000-3,000 sqm facility and 51-100 experienced professionals, we have been delivering precision mold solutions since 2017. Our products are shipped from Jiangsu, Shanghai, and Shenzhen ports, reaching major markets across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, East Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, and the domestic Chinese market. We hold TS16969 certification (related to automotive quality systems) and integrate IATF16949 principles into our manufacturing processes to ensure automotive-grade reliability.
Every mold undergoes rigorous testing before delivery, including mold trial, dimensional inspection, and performance validation. Our team provides comprehensive technical support, from design optimization to after-sales service. With a strong focus on precision, durability, and cost efficiency, we have built lasting partnerships with clients worldwide. Choose our Commercial Vehicle Engine Cooling Dual Port Joint Multi Cavity Tooling to accelerate your production, reduce per-part cost, and achieve world-class quality for the Indonesian market and beyond.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lead time for this multi-cavity tooling?
A: Standard lead time is 45-60 days after design approval, depending on cavity count and complexity. We can expedite for urgent orders upon request. -
Q: Can the mold be customized for different injection molding machines?
A: Yes, we design the mold base and mounting dimensions to match your specific injection molding machine, including clamping force, tie bar spacing, and ejection system. -
Q: What material is recommended for the cooling joint parts?
A: We recommend PP TD30 for its excellent heat resistance and chemical compatibility with engine coolant. Other materials like PA66 or PBT can also be used; please consult our engineers. -
Q: Do you provide samples before mass production?
A: Yes, we offer sample mold trials and can ship the first shot samples for your approval before mass production begins. -
Q: How do you ensure the mold meets IATF16949 standards?
A: Our manufacturing process follows IATF16949 guidelines, from design review and FMEA to process control and final inspection. We also provide documentation upon request. -
Q: What is the warranty period for this mold?
A: We provide a standard 12-month warranty against defects in materials and workmanship under normal operating conditions. Extended warranty is available. -
Q: Can you handle mold maintenance or repair services?
A: Absolutely. We offer comprehensive after-sales support including maintenance, spare parts, and repair services to maximize your mold lifespan. -
Q: Is shipping to Indonesia available? What are the terms?
A: Yes, we ship to Indonesia via sea or air from Jiangsu, Shanghai, or Shenzhen ports. We can offer FOB, CIF, or DDP terms based on your preference.
Contact us today to discuss your project requirements and receive a competitive quotation. Our engineering team is ready to assist you with customized mold solutions for commercial vehicle engine cooling systems.
