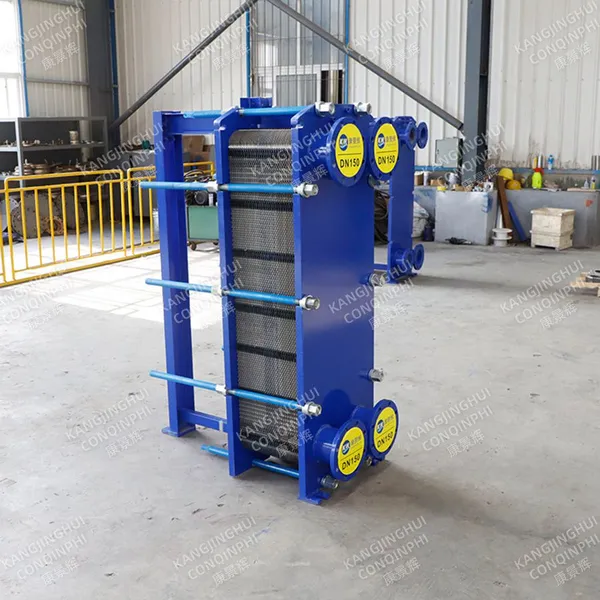

High Energy Efficiency Gasketed Plate Heat Exchanger, 316L Plates, 0.6mm Thickness, Max 200kW
Product Spotlights
316L stainless steel plates (0.6mm) deliver high heat transfer efficiency and corrosion resistance, supporting up to 200kW thermal duty. Modular gasketed design allows easy maintenance and customization. Supported by ISO9001 factory with global export experience.
US$ 2120 - 6869000
MOQ: 1 Combo
Key Specifications
Get Latest Price
plate_material:
316L Stainless Steel
plate_thickness:
0.6 mm
max_power:
200 kW
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
70 days
Related Products
-
High Energy Efficiency Plate Heat Exchanger, DN50 Flange Connection, 304SS, 1.6MPa Industrial GradeUS$ 2120 - 6869000MOQ: 1 Combo -
High Energy Efficiency Plate Heat Exchanger With 2-Year Warranty, Mill Test Report, 304SS StockedUS$ 2120 - 6869000MOQ: 1 Combo
-
High Energy Efficiency Plate Heat Exchanger for Chemical Processing, 316L, Sanitary Tri-Clamp ConnectionsUS$ 2120 - 6869000MOQ: 1 Combo
-
Factory Direct High Energy Efficiency Plate Heat Exchanger, 1-Year Warranty, Free Technical Support AvailableUS$ 2120 - 6869000MOQ: 1 Combo
-
Compact High Energy Efficiency Plate Heat Exchanger, 0.8mm Corrugated Plates, 304SS, 15m² Surface AreaUS$ 2120 - 6869000MOQ: 1 Combo
plate_material
316L Stainless Steel
plate_thickness
0.6 mm
max_power
200 kW
type
Gasketed
port_size
Customizable (e.g., DN50, DN80)
working_pressure
Available upon request (up to 16 bar)
max_temperature
Up to 160°C (dependent on gasket material)
applications
HVAC, chemical processing, food & beverage, pharmaceutical
certifications
HACCP, ISO9001, ISO14000, OHSAS18001 (available)
brand
Qingdao Conqinphi
As a leading manufacturer based in Qingdao, China, Qingdao Conqinphi Environmental Technology Group Co., Ltd. has been delivering reliable heat transfer solutions since 2015. Our High Efficiency Gasketed Plate Heat Exchanger with 316L plates and 0.6mm thickness is designed to meet the demands of modern industrial processes requiring compact size, high thermal performance, and long service life. With an annual export value exceeding US$10 million and a factory spanning over 10,000 square meters, we combine advanced manufacturing with strict quality control to ensure every unit performs optimally in applications up to 200kW.
This heat exchanger leverages the superior corrosion resistance of 316L stainless steel and the proven durability of gasket-sealed plate technology. The 0.6mm thin plates maximize heat transfer surface area while minimizing material usage and weight. Below we detail the technical specifications, key benefits, and reasons to choose our product.
Key Features and Technical Specifications
- Plate Material: 316L stainless steel – exceptional resistance to chlorides, acids, and high temperatures, ideal for aggressive fluids.
- Plate Thickness: 0.6 mm – optimized for heat transfer efficiency while maintaining structural integrity under pressure.
- Max Thermal Duty: 200 kW – suitable for medium-sized heating, cooling, or heat recovery systems.
- Gasket Design: Clip-on or glue-free snap-in gaskets (NBR, EPDM, Viton) – easy replacement and reduced maintenance downtime.
- Working Pressure: Customizable up to 16 bar (higher ratings available upon request).
- Temperature Range: -20°C to +160°C, depending on gasket material selection.
- Port Connections: Threaded or flanged (DIN, ANSI, JIS) – adaptable to existing piping systems.
- Frame Construction: Carbon steel with epoxy coating or stainless steel – sturdy and corrosion-resistant.
Performance Data (Sample Configuration)
| Parameter | Value |
|---|---|
| Number of Plates | 30–80 (configurable) |
| Heat Transfer Area | 0.5 – 2.5 m² (estimated) |
| Flow Capacity (max) | 20 m³/h (water) |
| Pressure Drop (calculated) | 10–50 kPa |
| Design Code | ASME VIII, PED, or GB150 (optional) |
Why Choose Our Gasketed Plate Heat Exchanger?
- High Energy Efficiency: The 0.6mm 316L plates create turbulent flow, achieving heat transfer coefficients 3–5 times higher than shell-and-tube exchangers.
- Compact Footprint: Saves up to 80% floor space compared to traditional designs – ideal for skids and limited areas.

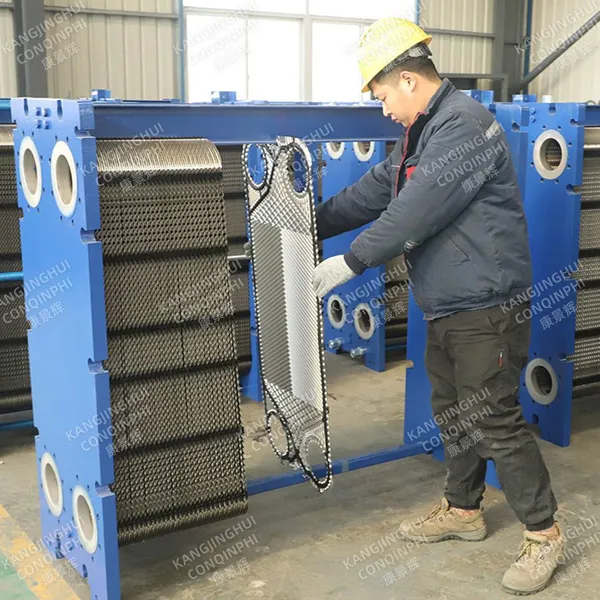

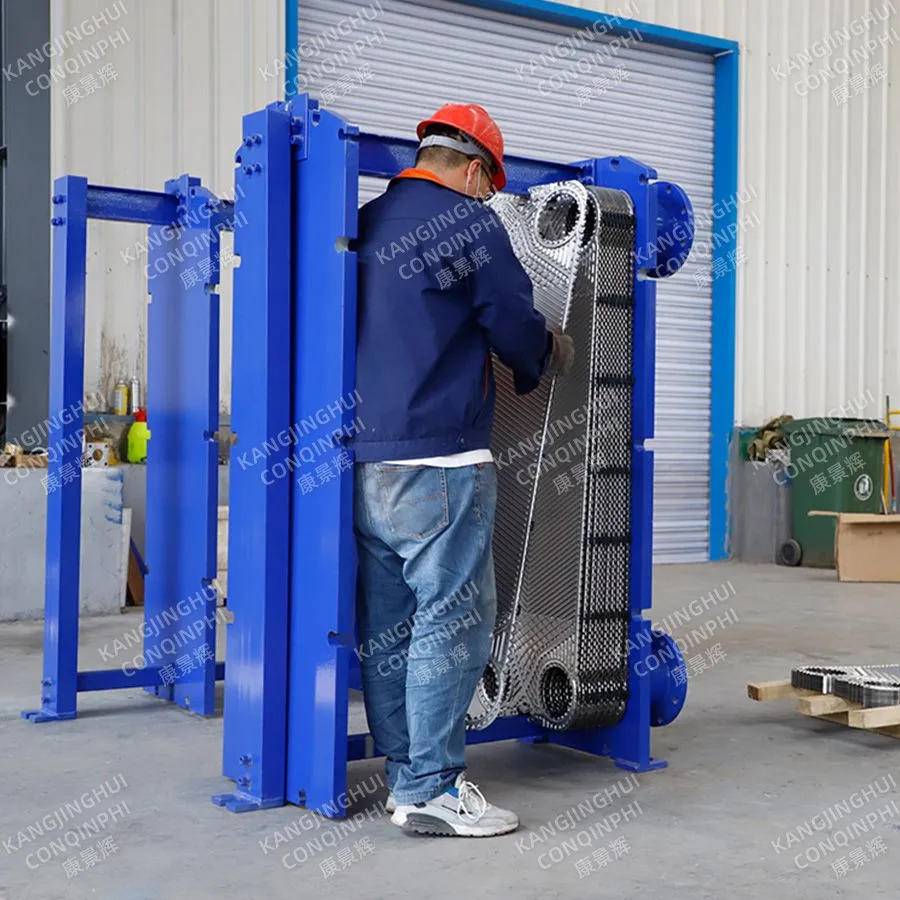

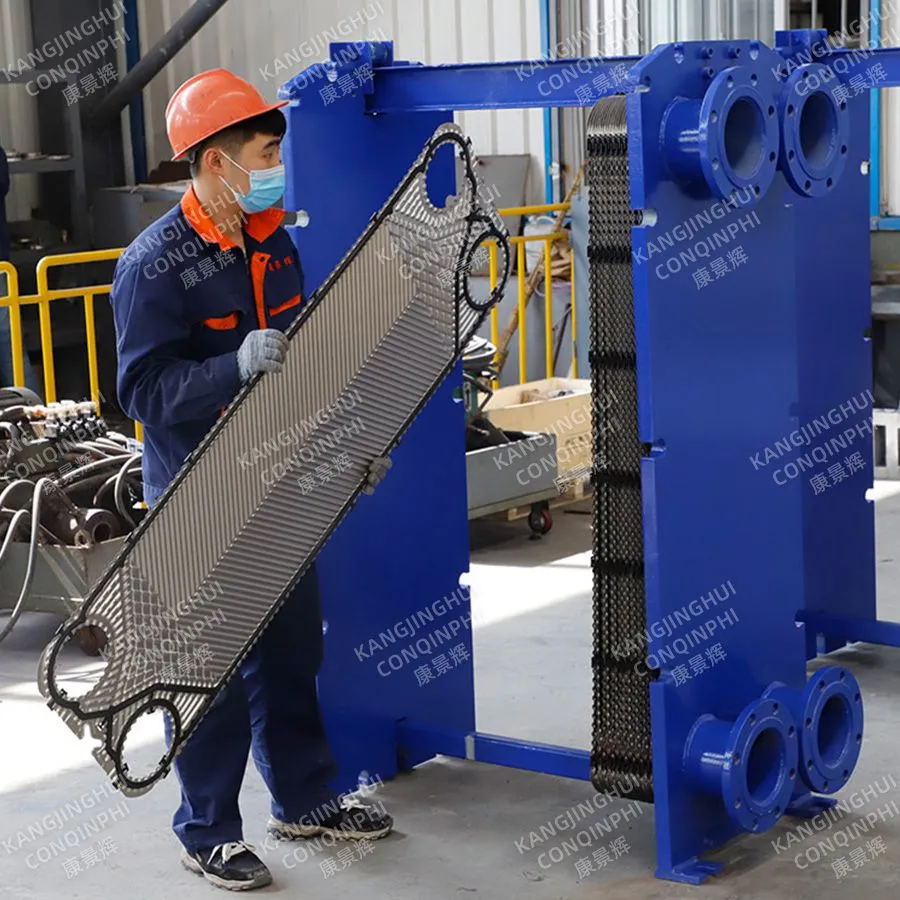

- Easy Maintenance: The gasketed design allows plate disassembly for cleaning or replacement without special tools.
- Customizable Configuration: Number of plates, port connections, gasket materials, and frame coatings can be tailored to your process fluids (water, oil, steam, chemicals).
- Reliable Sealing: High-quality gaskets (NBR, EPDM, Viton) provide leak-free operation and temperature resistance.
- Corrosion Resistance: 316L stainless steel withstands chlorides and acidic media, extending service life in harsh environments.
Trusted Manufacturing and Global Service
Qingdao Conqinphi operates a modern factory of 10,000–30,000 square meters with a dedicated team of 201–300 employees. Our products are exported to markets across North America, Europe, Southeast Asia, Africa, and Oceania, with annual export value between US$10 million and US$50 million. We hold multiple certifications including ISO9001, ISO14000, OHSAS18001, HACCP, and others, ensuring consistent quality and environmental responsibility. Every heat exchanger undergoes hydrostatic testing and dimensional inspection before shipment. We offer OEM/ODM services and technical support from our Qingdao port. Contact us today to discuss your specific heat transfer requirements – we provide competitive pricing, fast delivery, and lifelong after-sales service.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum operating temperature for this heat exchanger?
A: The maximum temperature depends on the gasket material: NBR (up to 110°C), EPDM (up to 150°C), and Viton (up to 180°C). Please specify your application fluid temperature when ordering. -
Q: Can I use this exchanger for seawater or brine?
A: Yes, 316L stainless steel offers good resistance to chlorides, making it suitable for seawater and brine applications. However, for high chloride concentrations above 2000 ppm, we recommend consulting our engineers for titanium or other plate materials. -
Q: What is the typical delivery time?
A: Standard units with 30–80 plates can be shipped within 20–30 working days after order confirmation. Custom configurations may require 35–45 days. We also maintain a small stock for urgent requests. -
Q: Do you provide certification for pressure vessels?
A: Yes, we can provide ASME VIII Div.1, PED 2014/68/EU, or Chinese GB150 certification upon request. Please indicate your required standard when placing an order. -
Q: How do I clean the plates if fouling occurs?
A: The gasketed design allows easy plate removal. We recommend chemical cleaning (CIP) or manual brush cleaning. For severe fouling, plates can be replaced individually. Contact our service team for cleaning guidelines. -
Q: What is the warranty period?
A: We offer a standard 12-month warranty from the date of shipment, covering defects in materials and workmanship. Extended warranty options are available. -
Q: Can I get a sample or small unit for testing?
A: Yes, we provide sample units (e.g., 10-plate configuration) for testing purposes. Please contact our sales team to discuss terms and lead time. -
Q: Are there any special requirements for gasket replacement?
A: No special tools are needed. We supply replacement gaskets that match the plate pattern. Simply snap off the old gasket and install the new one. Ensure the gasket surface is clean before assembly.
