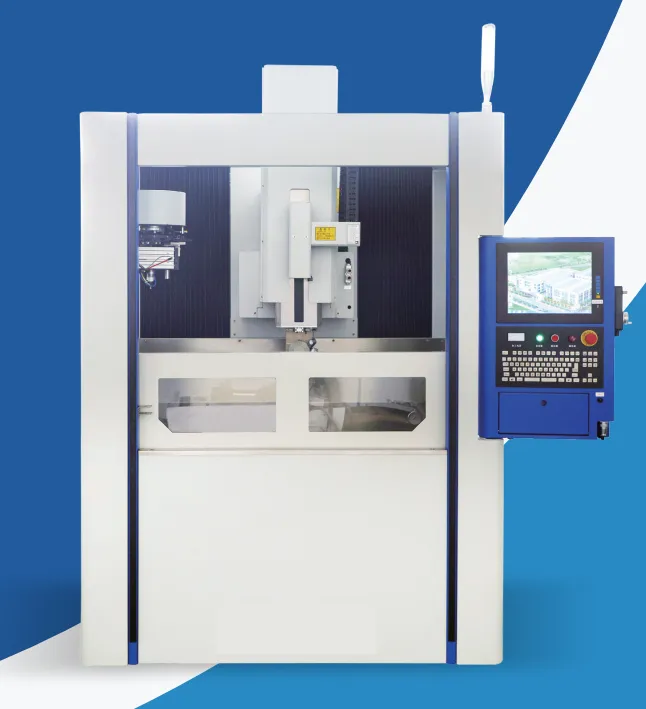

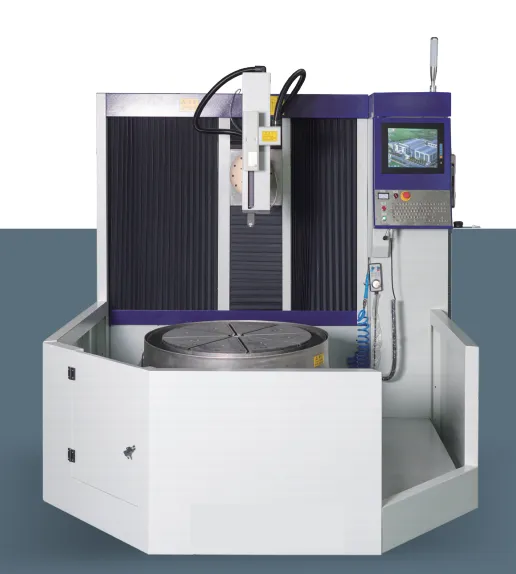

Five Axis CNC EDM Drilling Machine Touch Screen Control Servo Feed
Product Spotlights
Five-axis CNC EDM drilling machine with intuitive touch screen and servo feed delivers precise angled holes, high aspect ratios, and reduced cycle time. Ideal for aerospace, automotive, and mold industries. Backed by ISO9001 certified manufacturer with global export experience and customizable options.
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
Other, ISO9001
Number of Axes:
5
Control System:
Touch Screen with PLC
Payment & Shipping
Payment Methods:
Port of Shipment:
fob Shanghai
Delivery Detail:
20 days
Related Products
-
Precision 5-Axis EDM Drilling Machine Factory Direct Support Technical DocsNegotiableMOQ: 1 Unit -
5 Axis Electric Discharge Drilling System 300mm Max Depth 0.1mm Min HoleNegotiableMOQ: 1 Unit
-
Five Axis EDM Drilling Machine for Aerospace Turbine Blade Cooling HolesNegotiableMOQ: 1 Unit
-
5-Axis EDM Hole Drilling Machine for Mold Die Industry Cooling ChannelsNegotiableMOQ: 1 Unit
-
Five Axis EDM Drilling Machine 0.1-3.0mm Electrode 200mm Stroke CNC ControlNegotiableMOQ: 1 Unit
Certification
Other, ISO9001
Number of Axes
5
Control System
Touch Screen with PLC
Feed Method
Servo Motor Drive
Electrode Diameter Range
0.3 – 3.0 mm (customizable)
Max Workpiece Weight
Up to 500 kg (customizable)
Table Size
800 x 600 mm (optional)
Power Supply
380V / 50Hz / 3Phase
Spindle Speed Range
0 – 3000 rpm (optional)
Machining Depth Ratio
Up to 100:1 (depending on material)
Introducing the Five Axis CNC EDM Drilling Machine with Touch Screen Control and Servo Feed – a precision solution engineered for high-efficiency hole drilling in demanding industrial applications. As a trusted supplier from Suzhou Excellence Intelligent Technology Co., Ltd., established in 2013 and with a factory spanning 3,000-5,000 square meters, we bring over a decade of experience in advanced machining equipment. Our annual export value of US$5-10 Million and worldwide reach across North America, Europe, Asia, and beyond demonstrate our commitment to quality and service. This machine combines five-axis flexibility, intuitive touch-screen programming, and servo-driven feed for unmatched accuracy and productivity in EDM drilling.
Key Features & Technical Specifications
- True 5-Axis CNC Capability – Simultaneous control of X, Y, Z, A, and C axes allows drilling of complex angled holes without repositioning the workpiece, reducing cycle time and enhancing precision.
- Touch Screen Control Interface – User-friendly 15-inch color touch screen with intuitive menu navigation, real-time monitoring, and programmable parameters. Operators can quickly set drill depth, rotation speed, and feed rate.
- Servo Feed System – High-torque servo motors provide consistent and precise electrode advancement, ensuring stable spark gap and reducing electrode wear. The closed-loop feedback maintains micron-level accuracy.
- Advanced EDM Power Supply – Built-in high-frequency pulse generator (up to 60A) with adaptive technology for efficient material removal in conductive materials like hardened steel, titanium, and superalloys.
- Automatic Electrode Changer (Optional) – Available upon request for unattended operation, increasing productivity for batch production.
- Robust Machine Structure – Heavy-duty cast iron bed and column provide vibration damping and thermal stability, ensuring long-term accuracy under continuous use.
| Parameter | Specification |
|---|---|
| Working Table Size (L×W) | 800 × 600 mm (customizable) |
| X/Y/Z Travel | 500 / 400 / 350 mm |
| A/C Axis Rotation Range | ±90° / 360° |
| Electrode Diameter Range | 0.3 – 3.0 mm |
| Max Workpiece Weight | 500 kg (heavier upon request) |
| Spindle Speed Range | 0 – 3000 rpm (optional) |
| Peak Current Output | 60A |
| Power Consumption | 12 kVA (approx.) |
Benefits for Your Production
- Enhanced Productivity: Five-axis positioning eliminates multiple setups, reducing non-cutting time by up to 40%. Ideal for complex parts like turbine blades, fuel injector nozzles, and cooling holes.
- Superior Hole Quality: Servo feed ensures constant electrode advancement, minimizing recast layer and thermal damage. Achieve aspect ratios >100:1 with consistent diameter.
- Ease of Operation: The touch screen interface includes a library of pre-programmed drilling cycles, parameter wizards, and fault diagnostics. New operators can be trained in hours.
- Cost-Effective Maintenance: Modular design with accessible components reduces downtime. Servo motors and guides are from reliable brands, and we provide spare parts globally.
- Adaptability: Machine can process all conductive materials including tungsten carbide, Inconel, and ceramics (with conductive coating). Electrode materials: brass, copper, tungsten.
Why Choose Suzhou Excellence Intelligent Technology?
With ISO9001 certification, our production process adheres to strict quality controls. Our factory spans over 3,000 square meters, equipped with advanced machining centers and testing facilities. Since 2013, we have exported to more than 20 countries and regions, achieving an annual export value between US$5-10 Million. We ship globally from major ports including Shanghai, Ningbo, Shenzhen, and Qingdao, ensuring timely delivery. Our after-sales team provides remote technical support and on-site commissioning options. We are confident that the Five Axis CNC EDM Drilling Machine will elevate your machining capabilities to new heights. Contact us today for a customized quotation or to schedule a demo.
Frequently Asked Questions
-
Q: What materials can this machine drill?
A: It can drill any electrically conductive material such as steel, stainless steel, aluminum, titanium, copper, tungsten carbide, and Hardox. Non-conductive materials can be drilled with a conductive coating. -
Q: What is the maximum drilling depth?
A: The achievable depth depends on the electrode diameter and material. Typically, we guarantee depth up to 100 times the electrode diameter (e.g., 1 mm electrode can drill 100 mm deep). For specific requirements, please provide details. -
Q: Does the machine come with training?
A: Yes, we offer free operator training at our facility or via video conference. On-site installation and training are available at extra cost. -
Q: What is the power supply requirement?
A: Standard is 380V / 3-phase / 50Hz (can be customized to 60Hz or other voltages upon request). Power consumption is approximately 12 kVA. -
Q: Is the electrode automatic changer included?
A: The automatic electrode changer is an optional feature. The standard machine comes with manual electrode change. Please inquire for pricing and compatibility. -
Q: How long is the warranty period?
A: We provide a 12-month warranty from the date of shipment, covering manufacturing defects. Extended warranty plans are available. -
Q: Can the machine produce blind holes?
A: Yes, with precise servo control and spark detection, the machine can drill blind holes with depth accuracy of ±0.02 mm. -
Q: What file formats does the control accept?
A: The touch screen interface supports G-code (ISO standard) and can also import DXF/IGES files through an optional CAM software package.
