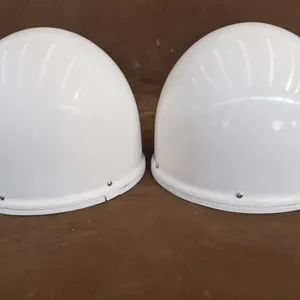

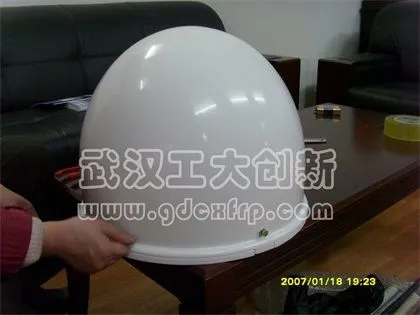

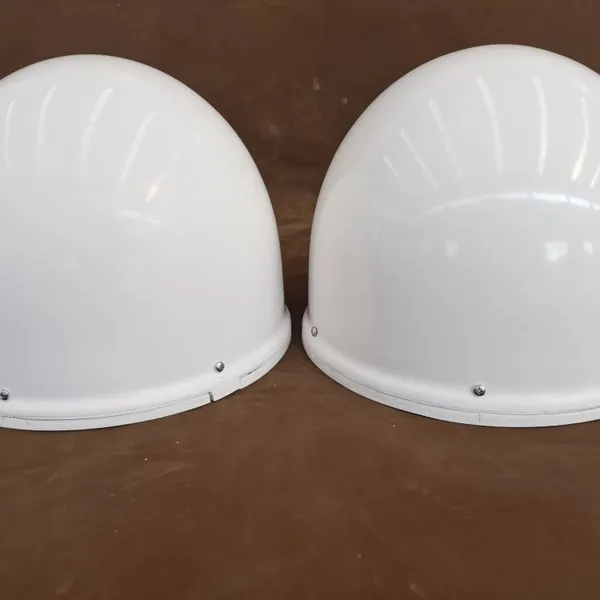

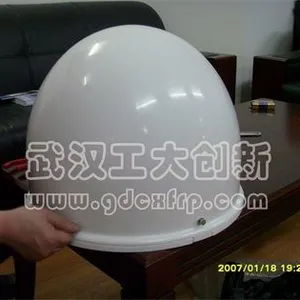

315 Type Bullet FRP Radome adopts a bullet-head shape, specially designed for 1~4GHz lightning detection GNSS antennas and suitable for rooftop outdoor installation.
Fiberglass composite with low dielectric constant and high wave permeability ensures accurate detection signal. The streamlined bullet shape reduces wind load, making it stable on rooftops and tall structures.
Good weather resistance adapts to outdoor field environments. Custom size and flange structure can be produced for different lightning detection equipment.
Product Details
Serial number |
Project |
Features and Specifications |
Serial number |
Project |
Features and Specifications |
Serial number |
Project |
Features and Specifications |
1 |
Name |
Type 420 radome with base |
8 |
Appearance |
Colored gelcoat |
15 |
Dielectric constant |
4.5-4.9 |
2 |
Specifications |
450*345 mm |
9 |
Resin |
Modified epoxy resin |
16 |
Operating frequency |
1 MHz - 4 GHz |
3 |
Housing wall thickness |
5 mm |
10 |
fiber |
E-glass fiber |
17 |
Transmittance (or insertion loss) |
≥90% |
4 |
Weight |
5.8 kg ± 0.5 kg |
11 |
Nomex honeycomb |
/ |
18 |
Operating temperature |
-40℃–80℃ |
5 |
Structure |
Single-layer |
12 |
Insertion part |
Spring nut 6×M6×8 |
19 |
Service life |
≥15 years |
6 |
Material |
Fiberglass |
13 |
Accessories |
304 bolt 6×M6×25 |
20 |
Detailed dimensions |
See the drawing. |
7 |
Color |
White |
14 |
Packaging |
Thickened cardboard box |
