WH‑SS Self‑Igniting MAPP Gas Hose Torch, Flexible High‑Pressure Extension Soldering Torch
1. Product Overview

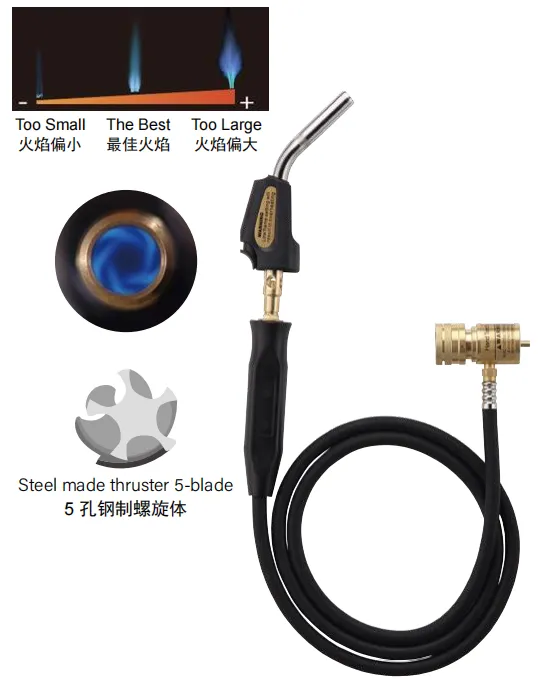

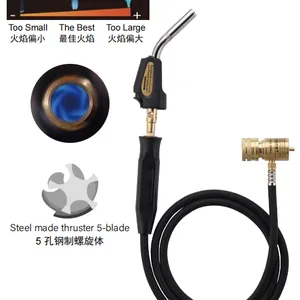

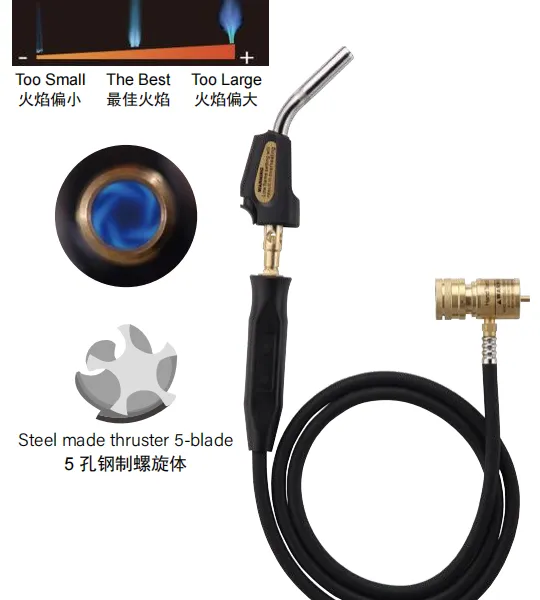

The WH‑SS self‑igniting MAPP gas hose torch belongs to Hose Torch Series for professional technicians and B2B bulk buyers. This flexible high‑pressure extension soldering torch is equipped with wear‑resistant high‑pressure hose and high‑temperature‑proof stainless‑steel tip. It adopts CGA600 connection standard and fits 14.1‑16 OZ gas containers. Under MAPP‑gas testing, max flame temperature exceeds 3600℉. It supports soft solder up to Φ2'' copper tubing and brazing up to Φ1'' copper tubing. Built‑in self‑ignition and long‑range flexible hose grant easy access to confined, hard‑to‑reach spots for HVAC and industrial soldering‑brazing work.
2. Key Features & Highlights
High‑grade stainless‑steel tip, high‑temperature resistant and drop‑proof for heavy‑duty field‑site application
Flexible high‑pressure extension hose, durable for long‑time operation, access narrow and hard‑to‑reach working locations
Specially‑designed control valve enables precise pressure adjustment for stable flame‑intensity control
Built‑in thruster accelerates gas flow and completes gas‑air mixing for consistent high‑temperature flame output
Accurate‑machined orifice guarantees uniform stable flame performance for every WH‑SS hose torch unit
High‑quality integrated self‑igniter delivers reliable ignition, no extra lighter or spark igniter required
Hose‑separated structure keeps gas canister away from high‑heat working zone for enhanced operation safety
3. Core Performance Parameters
Gas Type |
MAPP, Propane, LPG |
Connection |
CGA600 |
Container |
For use with 14.1-16 OZ Containers |
Regulator Ratings |
2.59M Pa (375psi) Maximum Gas Pressure |
|
Copper Tubing Size Capability (With Mapp Gas) |
Soft Solder: Max. Φ2"(5cm) |
Brazing: Max. Φ1"(2.5cm) | |
Max Flame Temperature |
>3600°F (tested with MAPP gas) |
Caution |
Low flame setting will result in overheat of the tip |
Stainless steel tip end to withstand high temp and dropping
Specially designed valve to adust pressure precisely
Thruster to speed up the gas flow and complete mixture for high temperature
Accurate orifice size to make sure every torch has the same flame
High quality igniter to gurantee successful ignition every time
Hose with high working pressure for reliability and durability
4. Wide Application Scenarios
HVAC sector: copper‑tube soldering and brazing for concealed, confined air‑conditioning & refrigeration maintenance spots
Jewelry processing: precision precious‑metal heating and soldering in narrow fixture spaces
Electrical industry: metal component soldering for compact and hard‑accessible equipment assemblies
Transportation industry: vehicle inner‑space metal repair and concealed‑joint brazing assignments
5. FAQ
Q1: What fuel sources work with WH‑SS self‑igniting MAPP gas hose torch?
A1: It supports MAPP gas, Propane gas and LPG gas. MAPP gas delivers max flame temperature over 3600℉.
Q2: Which gas canister fits this high‑pressure extension soldering torch?
A2: It follows CGA600 connection standard and is compatible with 14.1‑16 OZ standard gas containers.
Q3: What copper‑pipe sizes can WH‑SS solder and braze?
A3: Soft solder supports max Φ2'' copper tubing; brazing supports max Φ1'' copper tubing for HVAC repair tasks.
Q4: What is the main advantage of high‑pressure extension hose?
A4: Flexible hose lets users reach concealed and hard‑to‑reach positions; gas bottle stays away from high‑heat working area for better safety.
Q5: Do I need an external lighter for ignition?
A5: No. WH‑SS adopts built‑in self‑igniting mechanism for instant ignition without extra spark‑ignition tools.
Q6: Is the high‑pressure hose durable for continuous site‑work?
A6: The hose is built to high‑pressure specification for long‑term field‑use under normal operating conditions.
