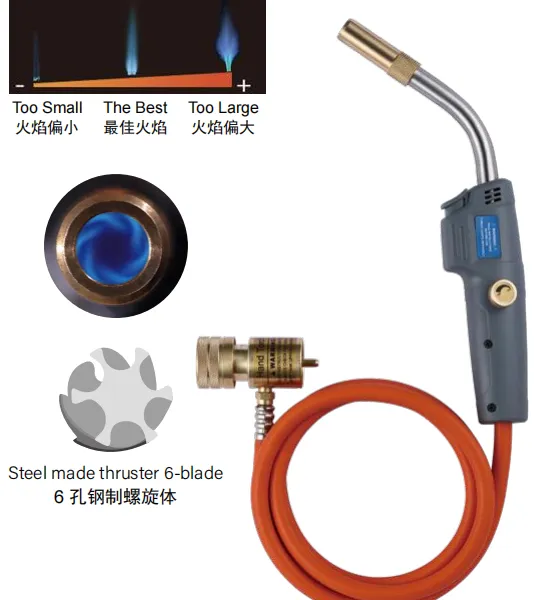

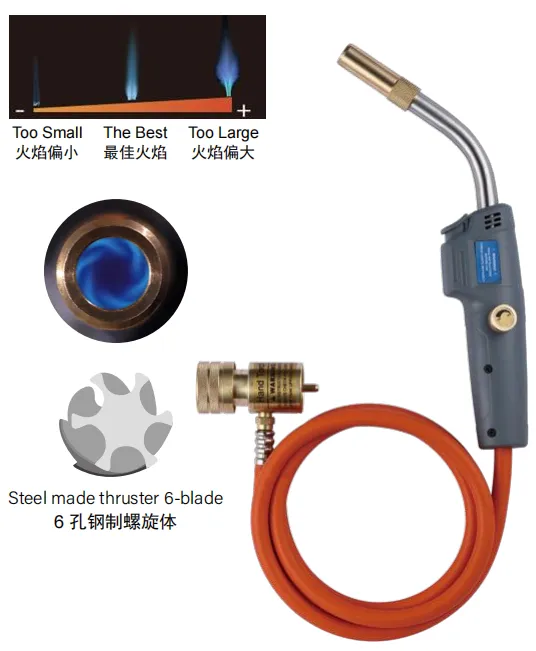

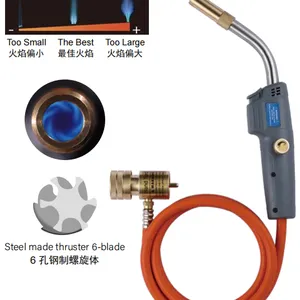

WH‑SSVTP Patented One‑Piece MAPP Hose Torch, One‑Hand Needle‑Valve & Thick Brass Tip
1. Product Overview
The WH‑SSVTP patented one‑piece MAPP hose torch belongs to Hose Torch Series for professional technicians and B2B bulk buyers. This premium extension brazing torch holds Chinese patent No.202230772889.0 for its integrated one‑piece construction. It is equipped with one‑hand‑operable needle‑valve, heavy‑duty thick fast‑cooling brass tip and wear‑resistant high‑pressure flexible extension hose. It adopts CGA600 connection standard and fits 14.1‑16 OZ gas containers. Under MAPP‑gas testing, max flame temperature exceeds 3600℉. It supports soft solder up to Φ2'' copper tubing and brazing up to Φ1'' copper tubing. Ergonomic one‑hand needle‑valve enables convenient fine‑tune flame control, while long‑reach hose grants easy access to hidden hard‑to‑reach soldering‑brazing spots.
2. Key Features & Highlights
Patented one‑piece integrated structure for streamlined, handy ergonomic operation
Heavy‑duty thick brass tip, luxury outlook with fast‑cooling performance for extended continuous‑working cycles
Unique one‑hand‑operated needle‑valve, users adjust fine flame output with single hand during working process
Durable high‑pressure flexible extension hose, enables access to narrow, concealed and hard‑to‑reach working locations
Specially‑designed main control valve for coarse gas‑flow setting, match with one‑hand needle‑valve for secondary fine flame tuning
Built‑in thruster accelerates gas flow and completes gas‑air mixing for consistent high‑temperature flame output
Accurate‑machined orifice guarantees uniform stable flame performance for every WH‑SSVTP hose torch unit
High‑quality integrated self‑igniter delivers reliable ignition without external lighter or spark igniter
Hose‑separated structure keeps gas canister away from high‑heat zone for improved field‑work safety
3. Core Performance Parameters
Gas Type |
MAPP, Propane, LPG |
Connection |
CGA600 |
Container |
For use with 14.1-16 OZ Containers |
Regulator Ratings |
2.59M Pa (375psi) Maximum Gas Pressure |
|
Copper Tubing Size Capability (With Mapp Gas) |
Soft Solder: Max. Φ2"(5cm) |
Brazing: Max. Φ1"(2.5cm) | |
Max Flame Temperature |
>3600°F (tested with MAPP gas) |
Caution |
Low flame setting will result in overheat of the tip |
Patented one piece design for handy operation
Brass tip end, bigger and thicker for luxury outlook and fast tip cooling
Additional needle valve could be operated by one hand
Specially designed valve to adust pressure precisely
Thruster to speed up the gas flow and complete mixture for high temperature
Accurate orifice size to make sure every torch has the same flame
High quality igniter to gurantee successful ignition every time
Hose with high working pressure for reliability and durability
4. Wide Application Scenarios
HVAC sector: precision copper‑tube soldering and brazing for cramped concealed air‑conditioning & refrigeration maintenance spots
Jewelry processing: delicate precious‑metal heating and soldering requiring convenient one‑hand flame fine‑tuning
Electrical industry: fine metal‑component soldering for compact, hard‑accessible equipment assemblies
Transportation industry: inner‑space vehicle metal repair and precision concealed‑joint brazing assignments
5. FAQ
Q1: What fuel sources work with WH‑SSVTP patented one‑piece MAPP hose torch?
A1: It supports MAPP gas, Propane gas and LPG gas. MAPP gas delivers max flame temperature over 3600℉.
Q2: Which gas canister fits this one‑hand needle‑valve extension brazing torch?
A2: It follows CGA600 connection standard and is compatible with 14.1‑16 OZ standard gas containers.
Q3: What copper‑pipe sizes can WH‑SSVTP solder and braze?
A3: Soft solder supports max Φ2'' copper tubing; brazing supports max Φ1'' copper tubing for HVAC precision‑repair tasks.
Q4: What is the core advantage of patented one‑piece one‑hand needle‑valve design?
A4: Patented integrated one‑piece construction lets operators fine‑tune flame with only one hand, improving operation convenience in tight spaces.
Q5: What benefit does thick brass tip bring?
A5: Thick brass tip features fast‑cooling characteristic to reduce over‑heat risk and extend continuous working time.
Q6: Do I need an external lighter for ignition?
A6: No. WH‑SSVTP adopts built‑in self‑igniting mechanism for instant ignition without extra spark‑ignition tools.
Q7: Is the high‑pressure extension hose durable for field‑site work?
A7: The hose meets high‑pressure specification for reliable long‑term operation under normal working‑site conditions.
