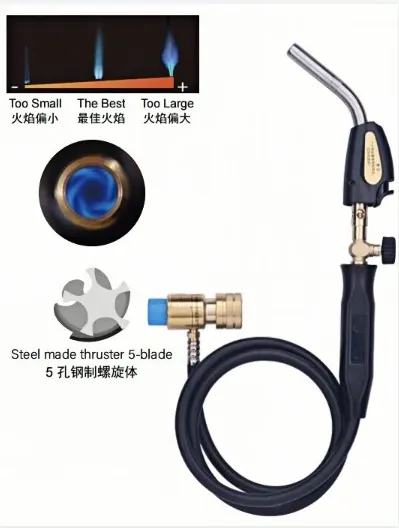

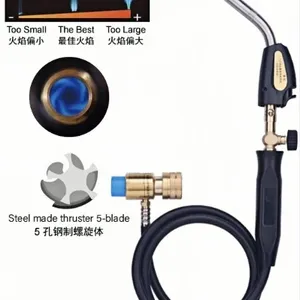

WH‑SSV MAPP Hose Torch with Needle‑Valve Flame Adjustment Self‑Igniting Extension Torch
1. Product Overview
The WH‑SSV MAPP hose torch with needle‑valve flame adjustment belongs to Hose Torch Series for professional technicians and B2B bulk buyers. This self‑igniting extension torch is equipped with high‑temperature‑resistant stainless‑steel tip, independent fine‑tune needle‑valve and wear‑resistant high‑pressure flexible extension hose. It uses CGA600 connection standard and fits 14.1‑16 OZ gas containers. Under MAPP‑gas testing, max flame temperature exceeds 3600℉. It supports soft solder up to Φ2'' copper tubing and brazing up to Φ1'' copper tubing. Extra needle‑valve enables ultra‑fine flame tuning for precision jobs, while long‑reach hose grants easy access to hidden, hard‑to‑reach soldering‑brazing spots.
2. Key Features & Highlights
High‑grade stainless‑steel tip, high‑temperature resistant and drop‑proof for heavy‑duty field‑site operation
Independent needle‑valve for handy, ultra‑fine flame adjustment to meet diverse precision heating requirements
Durable high‑pressure flexible extension hose, enables access to narrow, concealed and hard‑to‑reach working locations
Main control valve for coarse gas‑flow setting plus needle‑valve for secondary fine flame tuning
Built‑in thruster accelerates gas flow and completes gas‑air mixing for consistent high‑temperature flame output
Accurate‑machined orifice guarantees uniform stable flame performance for every WH‑SSV hose torch unit
High‑quality integrated self‑igniter delivers reliable ignition without external lighter or spark igniter
Hose‑separated design keeps gas canister away from high‑heat zone to improve operation safety
3. Core Performance Parameters
Gas Type |
MAPP, Propane, LPG |
Connection |
CGA600 |
Container |
For use with 14.1-16 OZ Containers |
Regulator Ratings |
2.59M Pa (375psi) Maximum Gas Pressure |
|
Copper Tubing Size Capability (With Mapp Gas) |
Soft Solder: Max. Φ2"(5cm) |
Brazing: Max. Φ1"(2.5cm) | |
Max Flame Temperature |
>3600°F (tested with MAPP gas) |
Caution |
Low flame setting will result in overheat of the tip |
Stainless steel tip end to withstand high temp and dropping
Additional needle valve for handy flame adjustment
Specially designed valve to adust pressure precisely
Thruster to speed up the gas flow and complete mixture for high temperature
Accurate orifice size to make sure every torch has the same flame
High quality igniter to gurantee successful ignition every time
Hose with high working pressure for reliability and durability
4. Wide Application Scenarios

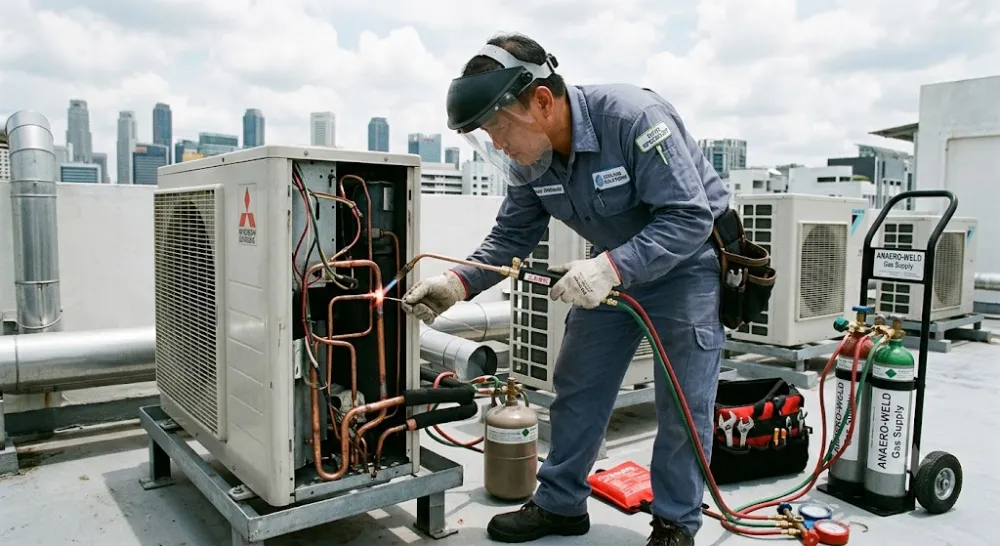

HVAC sector: precision copper‑tube soldering and brazing for cramped concealed air‑conditioning & refrigeration maintenance spots
Jewelry processing: delicate precious‑metal precision heating and soldering requiring accurate flame‑size control

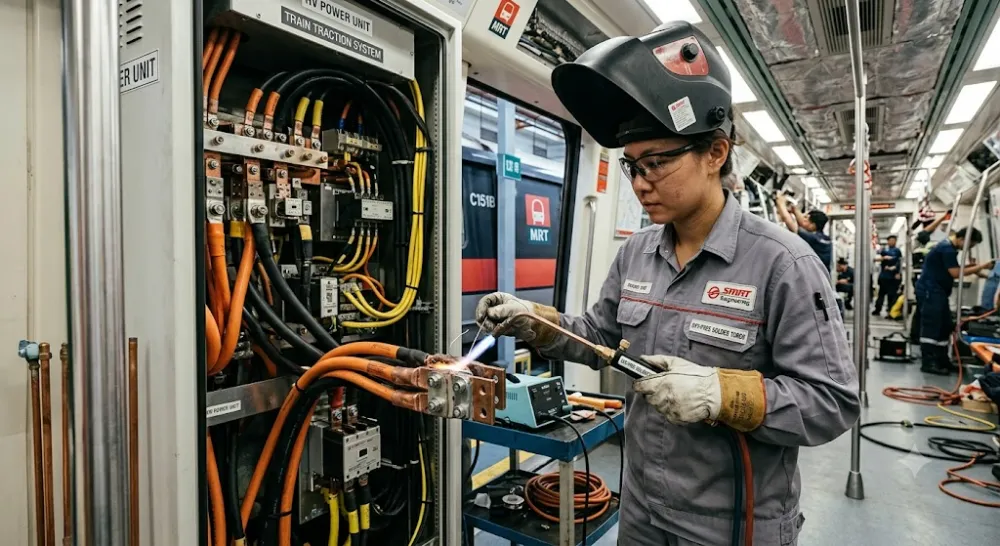

Electrical industry: fine metal‑component soldering for compact, hard‑accessible equipment assemblies
Transportation industry: inner‑space vehicle metal repair and precision concealed‑joint brazing assignments
5. FAQ
Q1: What fuel sources work with WH‑SSV MAPP hose torch with needle‑valve flame adjustment?
A1: It supports MAPP gas, Propane gas and LPG gas. MAPP gas delivers max flame temperature over 3600℉.
Q2: Which gas canister fits this self‑igniting extension torch?
A2: It follows CGA600 connection standard and is compatible with 14.1‑16 OZ standard gas containers.
Q3: What copper‑pipe sizes can WH‑SSV solder and braze?
A3: Soft solder supports max Φ2'' copper tubing; brazing supports max Φ1'' copper tubing for HVAC precision repair tasks.
Q4: What is the function of the additional needle‑valve?
A4: Needle‑valve provides secondary ultra‑fine flame tuning, ideal for precision soldering work after main valve coarse adjustment.
Q5: Do I need an external lighter for ignition?
A5: No. WH‑SSV adopts built‑in self‑igniting mechanism for instant ignition without extra spark‑ignition tools.
Q6: Is the high‑pressure extension hose durable for field‑site work?
A6: The hose meets high‑pressure specification for reliable long‑term operation under normal working‑site conditions.
