WT‑SSA‑1 Heavy‑Duty Self‑Igniting MAPP Torch Aluminum Housing 360° Swivel Brazing Torch
1. Product Overview
The WT‑SSA‑1 heavy‑duty self‑igniting MAPP torch is part of Single‑Tip Series built for professional technicians and B2B bulk purchasers. It combines impact‑resistant aluminum housing and high‑temperature‑proof 360‑degree swivel stainless steel tip. This gas torch adopts CGA600 connection standard and fits 14.1‑16 OZ gas containers. Under MAPP‑gas testing, max flame temperature exceeds 3600℉. It supports soft solder up to Φ2'' copper tubing and brazing up to Φ1'' copper tubing. Optimized thruster‑type gas‑air mixing brings stable, consistent flame for long‑time on‑site soldering and brazing tasks.
2. Key Features & Highlights
Stainless steel swivel tip, high‑temperature resistant and drop‑proof for heavy‑duty field‑site usage
Tough premium aluminum housing for improved durability and shock resistance during daily operation
Built‑in thruster accelerates gas flow and completes gas‑air mixture to achieve high‑heat flame output
High‑quality integrated self‑igniter guarantees reliable ignition performance without external lighter
Precision‑machined orifice ensures uniform and stable flame performance for every WT‑SSA‑1 torch unit
360° full swivel tip supports multi‑angle work to access narrow and hard‑to‑reach working positions
3. Core Performance Parameters
Gas Type |
MAPP, Propane, LPG |
Connection |
CGA600 |
Container |
For use with 14.1-16 OZ Containers |
Regulator Ratings |
2.59M Pa (375psi) Maximum Gas Pressure |
|
Copper Tubing Size Capability (With Mapp Gas) |
Soft Solder: Max. Φ2"(5cm) |
Brazing: Max. Φ1"(2.5cm) | |
Max Flame Temperature |
>3600°F (tested with MAPP gas) |
Caution |
Low flame setting will result in overheat of the tip |

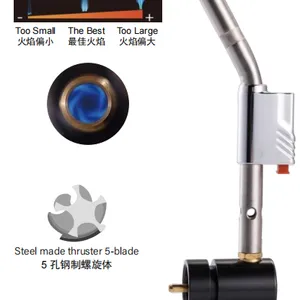

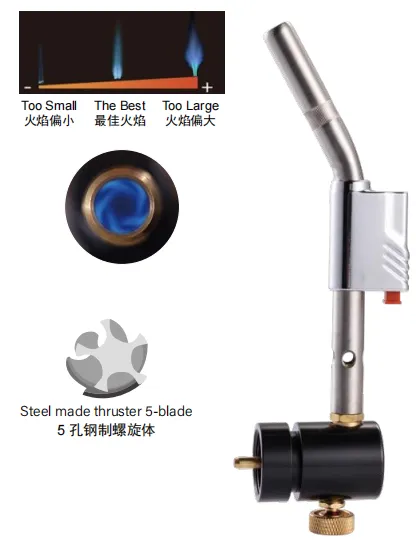

Stainless steel tip end to withstand high temp and dropping
Accurate orifice size to make sure every torch has the same flame
Thruster to speed up the gas flow and complete mixture for high temperature
High quality igniter with Aluminum Housing for reliable ignition and durability
Tip spins 360° for various jobs
4. Wide Application Scenarios

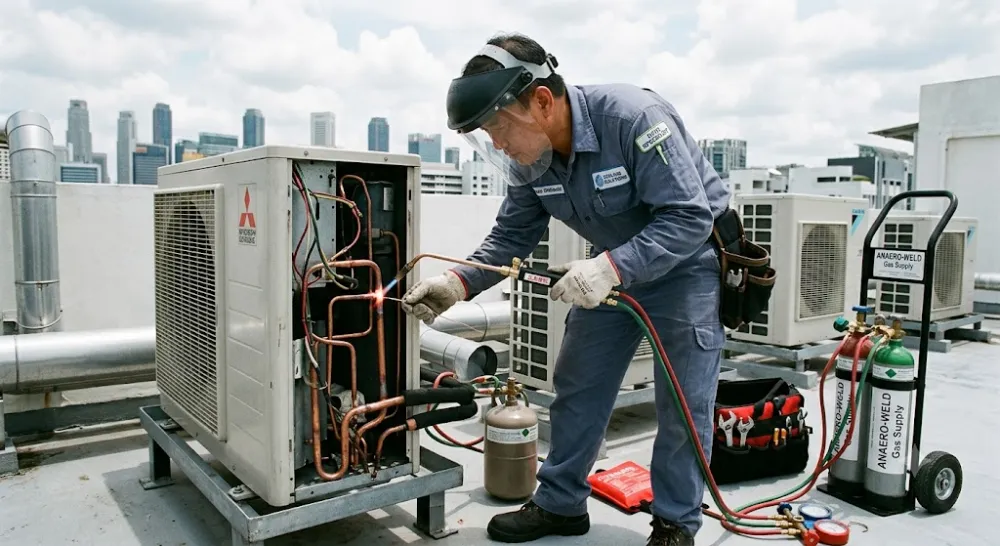

HVAC sector: copper tubing soldering and brazing for air‑conditioning & refrigeration maintenance
Jewelry processing: precious‑metal heating and soldering operations

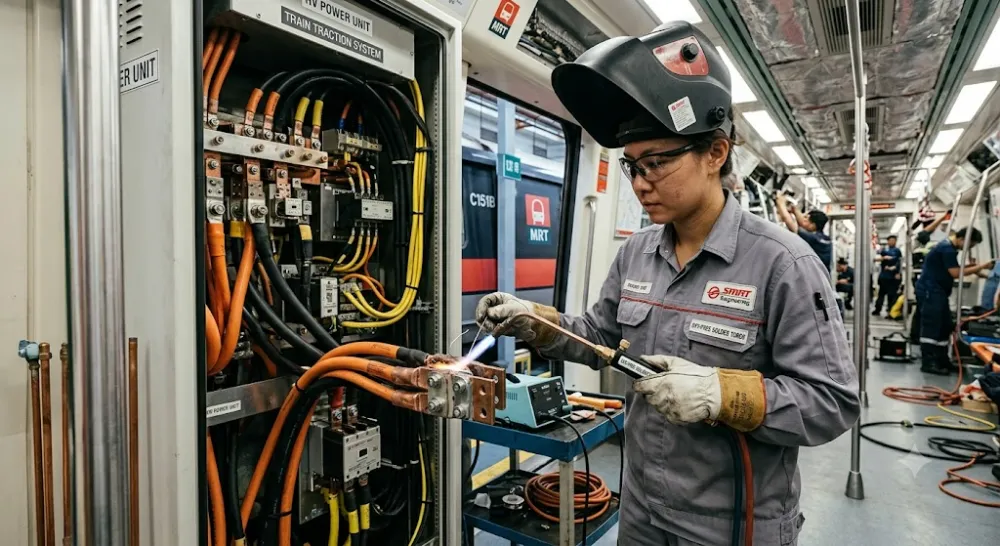

Electrical industry: metal component soldering and connection work
-
Transportation industry: vehicle metal repair and brazing jobs
5. FAQ
Q1: What gas fuels work for WT‑SSA‑1 heavy‑duty self‑igniting MAPP torch?
A1: It supports MAPP gas, Propane gas and LPG gas. MAPP gas can reach max flame temperature over 3600℉.
Q2: Which gas canister fits this 360° swivel brazing torch?
A2: It follows CGA600 connection standard and is compatible with 14.1‑16 OZ standard gas containers.
Q3: What copper tubing sizes can this torch solder and braze?
A3: Soft solder supports max Φ2'' copper tubing; brazing supports max Φ1'' copper tubing.
Q4: What advantages does aluminum‑housing bring for WT‑SSA‑1 gas torch?
A4: Aluminum housing provides good impact resistance and enhances durability for heavy‑duty job‑site applications.
Q5: Do I need extra lighter for ignition?
A5: No. WT‑SSA‑1 adopts self‑igniting mechanism for instant ignition without extra ignition tools.
Q6: Is the torch tip rotatable?
A6: Yes, stainless steel tip supports full 360‑degree swivel for complex and confined working spots.
