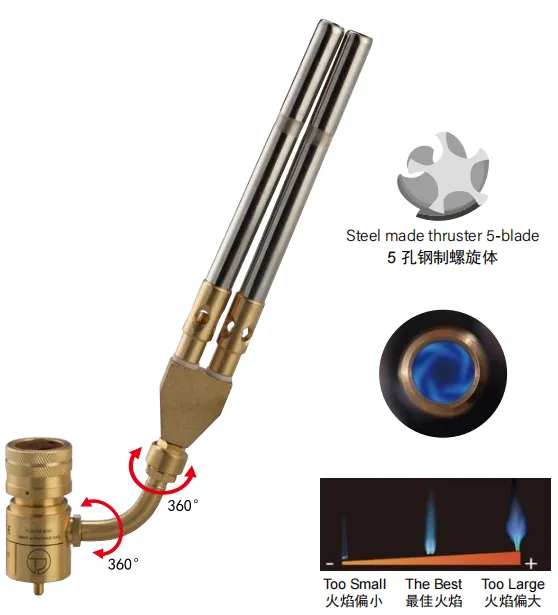

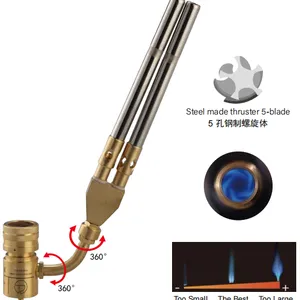

WT‑D2 Twin Flame MAPP Gas Torch 360° Two‑Way Swivel Dual Tip High‑Efficiency Torch
1. Product Overview
The WT‑D2 twin‑flame MAPP gas torch belongs to Dual‑Tip Series for professional technicians and B2B bulk buyers. This high‑efficiency dual‑tip torch is built with brass dual tips featuring unique 360° two‑way swivel structure. It adopts CGA600 connection standard and fits 14.1‑16 OZ gas containers. Under MAPP‑gas testing, max flame temperature exceeds 3600℉. It supports soft solder up to Φ4'' copper tubing and brazing up to Φ2'' copper tubing. Balanced twin‑flame output plus two‑direction rotation improves maneuverability for heavy‑duty large‑size copper‑pipe soldering and brazing jobs.
2. Key Features & Highlights
Dual brass tips generate well‑balanced twin‑flame for higher heat output to process larger‑diameter copper tubes
Special‑design control valve realizes precise pressure adjustment for stable twin‑flame intensity control
Built‑in thruster accelerates gas flow and completes gas‑air mixing for high‑temperature flame performance
Accurate machined orifice guarantees identical flame performance for each tip on every WT‑D2 torch unit
Unique 360° two‑way swivel dual tips, supports bidirectional rotation for complex confined working positions
Robust brass tip construction offers high‑temperature resistance for long‑time heavy‑duty site‑work
3. Core Performance Parameters
Gas Type |
MAPP, Propane, LPG |
Connection |
CGA600 |
Container |
For use with 14.1-16 OZ Containers |
Regulator Ratings |
2.59M Pa (375psi) Maximum Gas Pressure |
|
Copper Tubing Size Capability (With Mapp Gas) |
Soft Solder: Max. Φ4"(10cm) |
Brazing: Max. Φ2"(5cm) | |
Max Flame Temperature |
>3600°F (tested with MAPP gas) |
Caution |
Low flame setting will result in overheat of the tip |
Dual tips with exactly the same flame each tip generate more heat to weld bigger tubes
Specially designed valve to adust pressure precisely
Thruster to speed up the gas flow and complete mixture for high temperature
Accurate orifice size to make sure every torch has the same flame
Tips spin 360°in two directions
4. Wide Application Scenarios
HVAC sector: large‑diameter copper‑pipe soldering & brazing for air‑conditioning and refrigeration systems
Jewelry processing: bulk precious‑metal heating and soldering operations
Electrical industry: thick metal component soldering and connection work
Transportation industry: heavy‑duty vehicle metal repair and large‑joint brazing assignments
5. FAQ
Q1: What fuel sources work with WT‑D2 twin‑flame MAPP gas torch?
A1: It supports MAPP gas, Propane gas and LPG gas. MAPP gas delivers max flame temperature over 3600℉.
Q2: Which gas canister fits this two‑way swivel dual‑tip torch?
A2: It follows CGA600 connection standard and is compatible with 14.1‑16 OZ standard gas containers.
Q3: What copper pipe sizes can WT‑D2 solder and braze?
A3: Soft solder supports max Φ4'' copper tubing; brazing supports max Φ2'' copper tubing for large‑pipe HVAC tasks.
Q4: What is the advantage of 360° two‑way swivel dual‑tip design?
A4: Two‑way bidirectional rotation brings greater flexibility, easier to reach tricky and confined working angles.
Q5: Does WT‑D2 need an external lighter for ignition?
A5: Yes, this is manual‑ignition torch; you need extra lighter or spark igniter to start the flame.
Q6: Will two tips keep consistent flame output?
A6: Precision‑machined orifice ensures balanced identical twin‑flame output for each torch unit.
