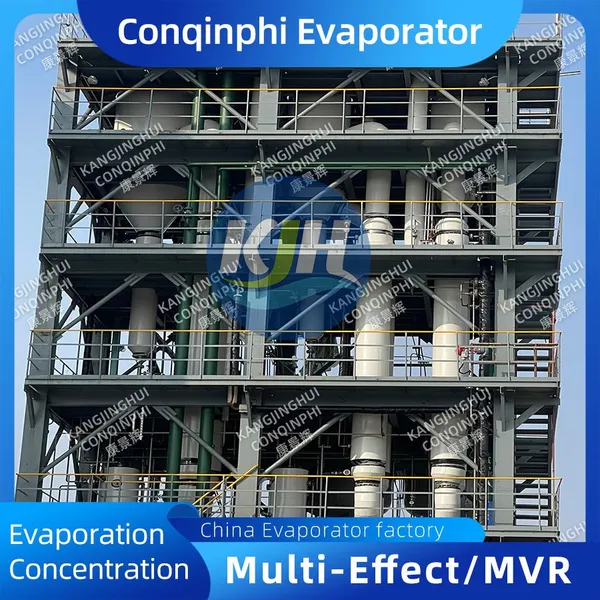

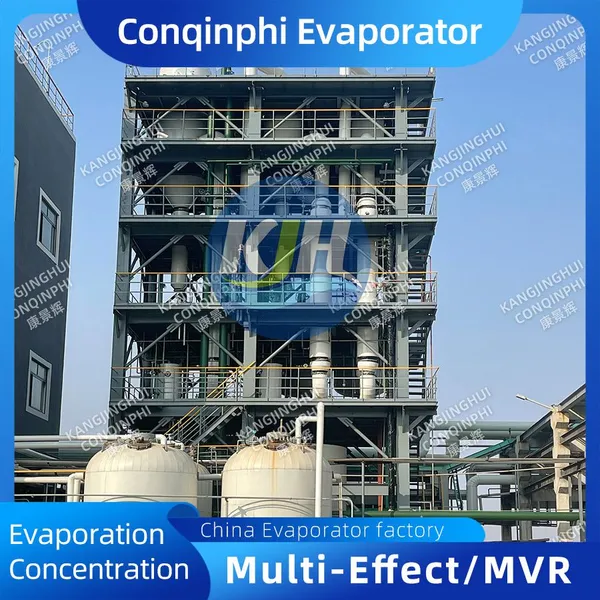

Help Center70 TPH Triple-Effect Evaporator With Automatic Operation and Energy-Saving Design ≤0.1MPa
Product Spotlights
Related Products
-
70 TPH Triple-Effect Evaporation System With 1-Year Warranty and On-Site CommissioningUS$ 750 - 879000MOQ: 1 Combo -
70 TPH Triple-Effect Evaporation System for Chemical Wastewater Concentration and RecoveryUS$ 750 - 879000MOQ: 1 Combo
-
70 TPH Triple-Effect Evaporation System 304 Stainless Steel PLC Control 220V/380VUS$ 750 - 879000MOQ: 1 Combo
-
70 TPH Triple-Effect Evaporation System 316L Stainless Steel Shell and Tube Heat ExchangerUS$ 750 - 879000MOQ: 1 Combo
-
70 TPH Triple-Effect Evaporator for Pharmaceutical Liquid Concentration and Solvent RecoveryUS$ 750 - 879000MOQ: 1 Combo
Welcome to Qingdao Conqinphi Environmental Technology Group Co., Ltd. – a trusted manufacturer with over 8 years of experience in the evaporation industry. Our 70 TPH Triple-Effect Evaporator is designed for high-volume industrial applications, offering automatic operation and energy-saving performance at an operating pressure of ≤0.1 MPa. This system leverages advanced multi-effect evaporation technology to minimize steam consumption and maximize efficiency, making it an ideal solution for concentrating wastewater, chemicals, and food products. With a factory spanning 10,000–30,000 square meters and an annual export value between US$10 million and US$50 million, we are committed to delivering reliable, compliant evaporation equipment to global markets.
Key Features & Technical Specifications
- High Capacity: Processes 70 tons per hour of feed liquid, suitable for large-scale industrial operations.
- Triple-Effect Design: Three stages of evaporation allow for efficient heat recovery, reducing energy consumption by up to 30% compared to single-effect systems.
- Automatic Operation: Equipped with PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) for real-time monitoring, automated control of temperature, pressure, and flow rate, minimizing manual intervention.
- Low-Pressure Operation (≤0.1 MPa): Operates under vacuum or near-vacuum conditions, enabling gentle evaporation at lower temperatures, preserving heat-sensitive materials and reducing scaling.
- Energy-Saving Design: Uses vapor recompression and heat integration to lower steam consumption; typical steam economy of 3.0–3.5 kg of water evaporated per kg of steam.
- Robust Construction: Main body made of stainless steel (304 or 316L) to resist corrosion and ensure long service life. Optional titanium or duplex stainless steel for aggressive media.
- Compact Footprint: Modular design for easy installation and maintenance, with minimal floor space requirements.
- Flexible Applications: Ideal for wastewater treatment (e.g., zero liquid discharge), chemical concentration (e.g., brine, salt solutions), and food industry (e.g., milk, juice, sugar syrups).
Technical Parameters (Typical)
| Parameter | Value |
|---|---|
| Evaporation Capacity | 70 TPH |
| Number of Effects | 3 |
| Operating Pressure (First Effect) | ≤0.1 MPa (absolute) |
| Steam Consumption (typical) | ~20-23 tons/h (based on feed concentration) |
| Evaporation Temperature | 60-90°C (adjustable) |
| Material of Construction | SS304 / SS316L (customizable) |
| Control System | PLC + HMI (automatic) |
| Power Supply | 380V/50Hz (customizable) |
Customer Benefits
- Lower Operating Costs: The energy-saving triple-effect design reduces steam usage, directly lowering your utility bills.
- Enhanced Productivity: Automatic operation with minimal human oversight means less downtime and consistent output quality.
- Wide Feed Flexibility: Handles various feed concentrations and viscosities; suitable for both clear liquids and slurries.
- Compliance & Safety: Built to international standards, with available certifications (ISO9001, ISO14000, HACCP, OHSAS18001). Low-pressure design enhances safety.
- Easy Maintenance: Modular construction and accessible heat exchanger tubes simplify cleaning and inspection.
Trust & Reliability
As a leading manufacturer in Qingdao, Shandong, China, Qingdao Conqinphi Environmental Technology Group Co., Ltd. has been delivering high-quality evaporation systems since 2015. Our factory size of 10,000–30,000 square meters and a dedicated team of 201–300 employees ensure rigorous quality control and prompt production. We export to markets across North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East, with an annual export value exceeding US$10 million. Our products are backed by multiple certifications including ISO9001, ISO14000, HACCP, and OHSAS18001, demonstrating our commitment to quality, environment, and safety. We invite you to partner with us for a reliable, energy-efficient evaporation solution that meets your process requirements. Contact our team today for a tailored quotation or technical discussion.
Frequently Asked Questions (FAQ)
1. What is the typical steam consumption of this 70 TPH triple-effect evaporator?
Steam consumption depends on feed concentration and desired final concentration. Under typical conditions, the unit consumes about 20–23 tons of steam per hour, achieving a steam economy of 3.0–3.5 kg water/kg steam.
2. Can this evaporator handle corrosive or scaling liquids?
Yes. The standard construction is SS304/SS316L. For highly corrosive media, we can upgrade to titanium or duplex stainless steel. Additionally, the low-pressure operation reduces scaling tendencies. An optional CIP (Clean-in-Place) system is available.
3. What control system is included?
We provide a PLC-based control system with a touch-screen HMI. It allows automatic start-up, shutdown, and real-time adjustment of temperature, pressure, and flow. Remote monitoring and data logging are also available.
4. Is the evaporator pre-assembled or shipped in parts?
We typically ship the evaporator in modular sections for easy on-site assembly. Full pre-assembly is possible for smaller capacities; please inquire for your specific requirements.
5. What certifications does your company hold?
We hold ISO9001, ISO14000, HACCP, OHSAS18001, and other management system certifications. Our products are manufactured in compliance with international standards, and we can provide necessary documentation for customs clearance.
6. What is the lead time for a 70 TPH triple-effect evaporator?
Lead time depends on customization and current production schedule. Typically, it ranges from 45 to 60 days after order confirmation. Contact our sales team for an accurate timeline.
7. Do you offer after-sales service and installation support?
Yes. We provide technical documentation, remote commissioning assistance, and optional on-site supervision. Our service team is available for troubleshooting and spare parts supply.
8. Can this evaporator be integrated into an existing wastewater treatment line?
Absolutely. Our design team can customize the inlet and outlet connections, as well as the control interface, to fit your existing process. We also offer turnkey solutions for zero liquid discharge (ZLD) systems.
