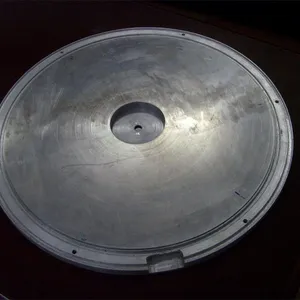

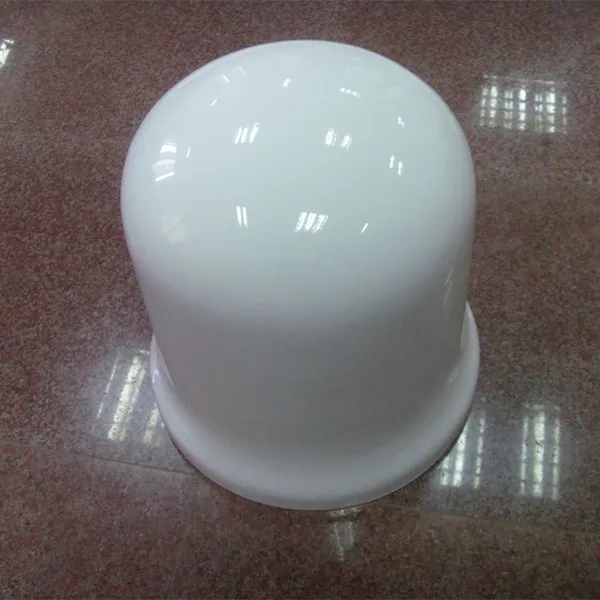

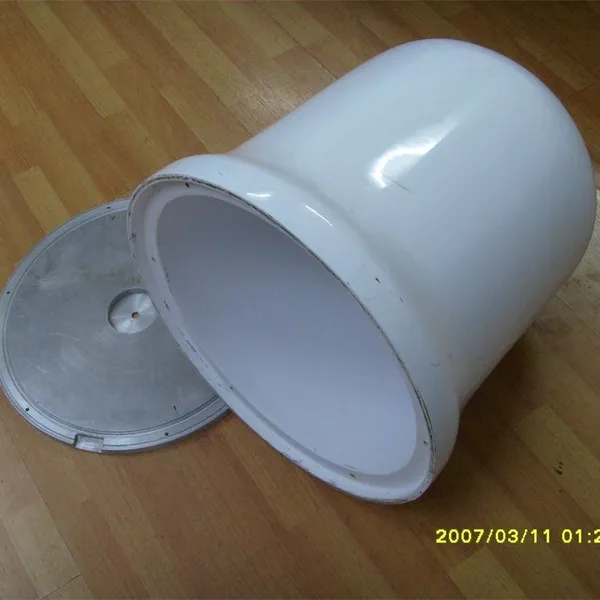

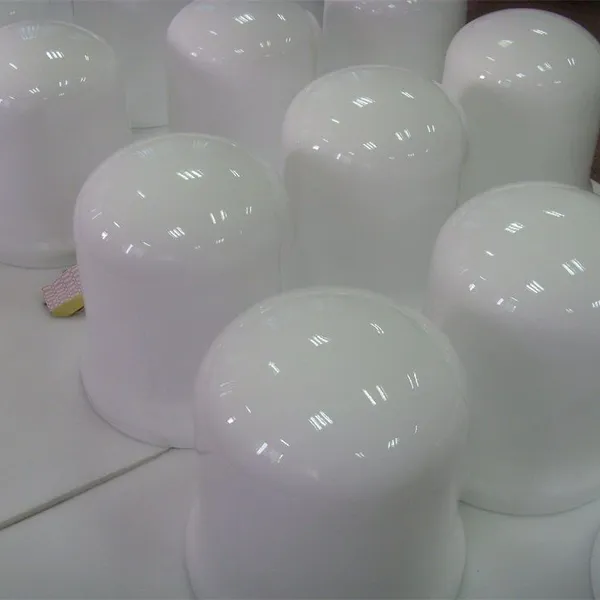

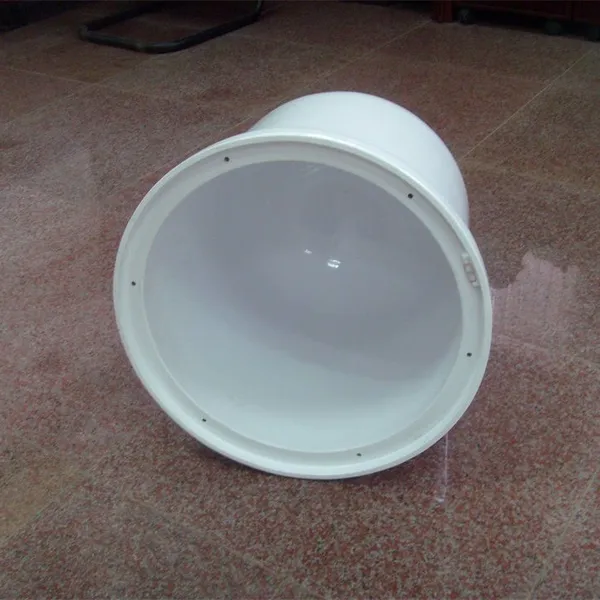

310 Molded FRP Radome is a tapered frustum shell for 1~4GHz GNSS antennas, featuring a detachable assembly structure for convenient antenna maintenance and overhaul.
Produced by precision compression molding craft, it maintains stable size tolerance and consistent wall thickness. Fiberglass composite material keeps low dielectric loss and high wave transmittance for reliable positioning signal.
Waterproof and dustproof design suits outdoor ground antenna systems. Custom drawing processing is available for special shapes and mounting requirements.
Product Details
Serial number |
Project |
Features and Specifications |
Serial number |
Project |
Features and Specifications |
Serial number |
Project |
Features and Specifications |
1 |
Name |
Type 400 radome |
8 |
Appearance |
Colored gelcoat |
15 |
Dielectric constant |
4.5-4.9 |
2 |
Specifications |
472*493 mm |
9 |
Resin |
Modified epoxy resin |
16 |
Operating frequency |
1 MHz - 4 GHz |
3 |
Housing wall thickness |
5.0 mm |
10 |
fiber |
E-glass fiber |
17 |
Transmittance (or insertion loss) |
≥90% |
4 |
Weight |
6kg±0.5kg |
11 |
Nomex honeycomb |
/ |
18 |
Operating temperature |
-40℃–80℃ |
5 |
Structure |
Single-layer |
12 |
Insertion part |
Copper nut 6*M6*15 |
19 |
Service life |
≥15 years |
6 |
Material |
Fiberglass |
13 |
Accessories |
/ |
20 |
Detailed dimensions |
See the drawing. |
7 |
Color |
White |
14 |
Packaging |
Thickened cardboard box |
