WT‑TSA Self‑Igniting Triple‑Tip MAPP Gas Torch Aluminum Housing High‑Heat Brazing Torch
1. Product Overview
The WT‑TSA self‑igniting triple‑tip MAPP gas torch belongs to Triple‑Tip Series for professional technicians and B2B bulk buyers. This high‑heat brazing torch combines impact‑resistant aluminum housing and 360‑degree swivel stainless‑steel triple tips. It uses CGA600 connection standard and fits 14.1‑16 OZ gas containers. Under MAPP‑gas testing, max flame temperature exceeds 3600℉. It supports soft solder up to Φ6'' copper tubing and brazing up to Φ3'' copper tubing. Integrated reliable self‑ignition plus powerful three‑flame output greatly improves efficiency for heavy‑duty extra‑large‑size copper‑pipe soldering and brazing jobs.
2. Key Features & Highlights
Stainless‑steel triple tips, high‑temperature‑resistant and drop‑proof for heavy‑duty field‑site usage
Robust premium aluminum housing, improves shock‑resistance and long‑term service life under harsh working conditions
Triple‑tip three‑flame design generates vast heat output for processing extra‑large‑diameter copper tubes
Specially‑designed control valve enables precise pressure adjustment for stable three‑flame intensity control
Built‑in thruster accelerates gas flow and completes gas‑air mixing for stable high‑temperature flame performance
Accurate machined orifice guarantees identical balanced flame output from each tip for every WT‑TSA torch unit
360° full swivel triple tips support multi‑angle rotation to adapt narrow and complex confined working positions
High‑quality integrated self‑igniter for instant startup without external lighter or spark igniter
3. Core Performance Parameters
Gas Type |
MAPP, Propane, LPG |
Connection |
CGA600 |
Container |
For use with 14.1-16 OZ Containers |
Regulator Ratings |
2.59M Pa (375psi) Maximum Gas Pressure |
|
Copper Tubing Size Capability (With Mapp Gas) |
Soft Solder: Max. Φ6"(15cm) |
Brazing: Max. Φ3"(7.5cm) | |
Max Flame Temperature |
>3600°F (tested with MAPP gas) |
Caution |
Low flame setting will result in overheat of the tip |

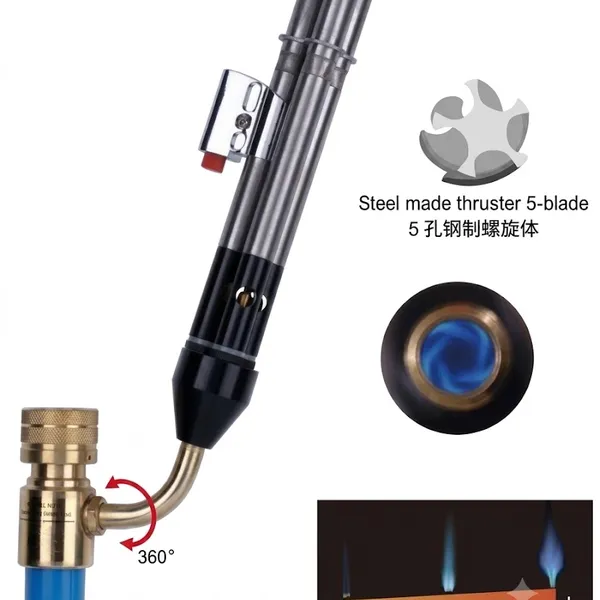

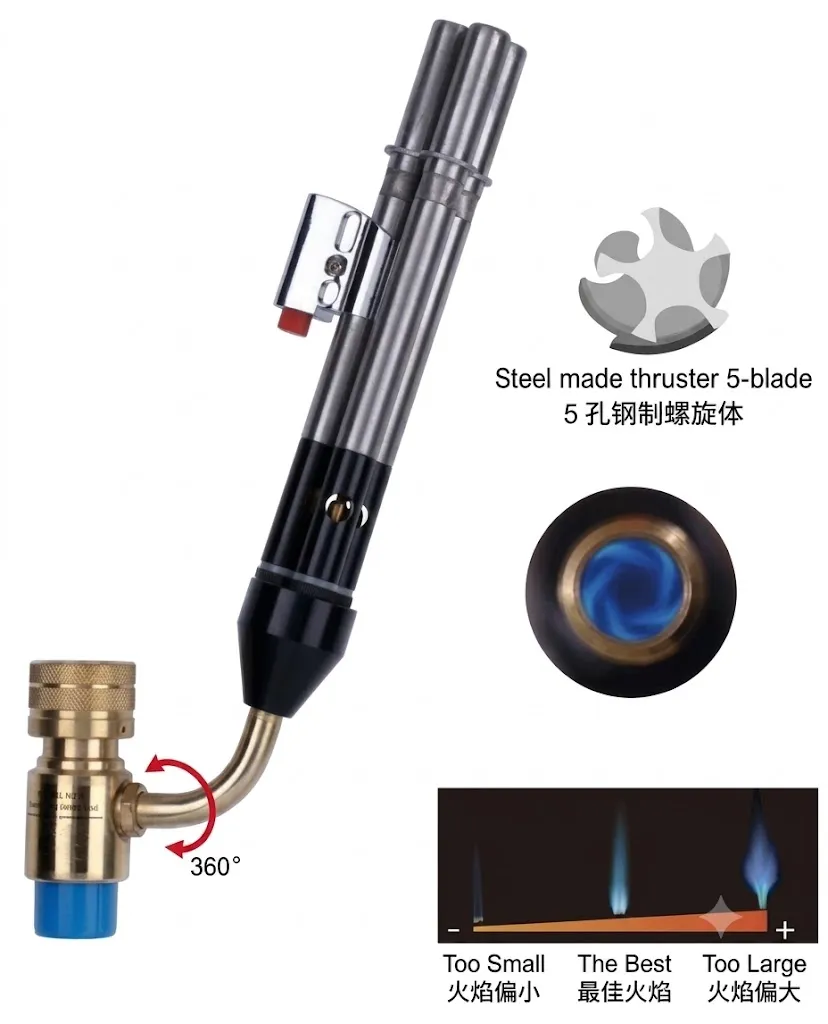

Triple tips with exactly the same flame each tip generate vast heat to weld bigger tubes
Specially designed valve to adust pressure precisely
Thruster to speed up the gas flow and complete mixture for high temperature
High quality igniter with Aluminum Housing for reliable ignition and long life expectancy
Accurate orifice size to make sure every torch has the same flame
Tips spin 360°
4. Wide Application Scenarios
HVAC sector: extra‑large‑diameter copper‑pipe soldering & brazing for large‑scale air‑conditioning and refrigeration equipment maintenance
Jewelry processing: bulk large‑workpiece precious‑metal heating and soldering operations
Electrical industry: extra‑thick metal component soldering and heavy‑joint connection work
Transportation industry: heavy‑duty vehicle metal repair and over‑size brazing assignments
5. FAQ
Q1: What fuel sources work for WT‑TSA self‑igniting triple‑tip MAPP gas torch?
A1: It supports MAPP gas, Propane gas and LPG gas. MAPP gas delivers max flame temperature over 3600℉.
Q2: Which gas canister fits this aluminum‑housing high‑heat brazing torch?
A2: It follows CGA600 connection standard and is compatible with 14.1‑16 OZ standard gas containers.
Q3: What copper‑pipe sizes can WT‑TSA solder and braze?
A3: Soft solder supports max Φ6'' copper tubing; brazing supports max Φ3'' copper tubing for extra‑large‑pipe HVAC work.
Q4: What benefits come with aluminum housing?
A4: Aluminum housing offers good shock‑resistance and enhances durability for heavy‑duty on‑site working environments.
Q5: Do I need extra lighter for ignition?
A5: No. WT‑TSA adopts built‑in self‑igniting mechanism for instant ignition without extra spark‑ignition tools.
Q6: Can triple‑tips swivel during operation?
A6: Yes, stainless‑steel triple tips support full 360‑degree swivel for complex confined working angles.
Q7: Will three tips keep balanced identical flame?
A7: Precision‑machined orifice ensures consistent balanced three‑flame output for every WT‑TSA torch unit.
