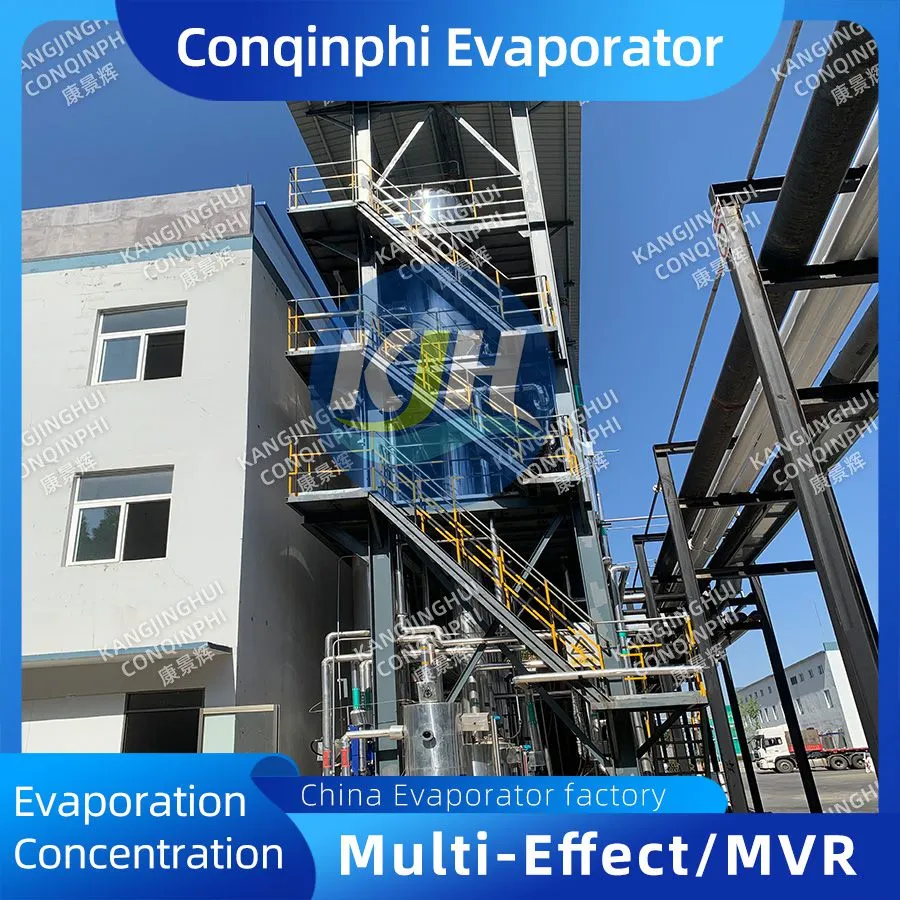

Qingdao Conqinphi Environmental Technology Group Co., Ltd. is proud to present our 70 TPH Triple-Effect Evaporator — a high-performance stainless steel evaporator body specifically designed for demanding industrial evaporation processes. With over 8 years of manufacturing experience, a factory spanning 10,000–30,000 square meters, and an annual export value exceeding US$10 million, we deliver reliable, certified, and energy-efficient evaporation solutions to clients across North America, Europe, Asia, and beyond. This evaporator is built with a robust insulation jacket to minimize heat loss, ensuring maximum thermal efficiency and operational cost savings.
The triple-effect design leverages multiple stages of vapor recompression, significantly reducing steam consumption compared to single-effect evaporators. The entire body is constructed from high-grade stainless steel (304/316L optional), offering excellent corrosion resistance and compliance with food-grade and pharmaceutical standards. Whether you are concentrating liquid foods, treating industrial wastewater, or recovering valuable chemicals, this evaporator delivers consistent performance at 70 tons per hour capacity.
Key Features & Technical Specifications
- High Capacity: 70 TPH throughput suitable for large-scale production lines.
- Triple-Effect Design: Three-stage evaporation reduces energy consumption by up to 50% compared to single-effect units.
- Stainless Steel Construction: 304 or 316L stainless steel for durability and corrosion resistance.
- Insulation Jacket: Prevents heat loss, improves thermal efficiency, and maintains stable operating temperatures.
- Customizable Options: Available with CIP cleaning systems, automatic controls, and various heat exchanger configurations.
- Global Certifications: Manufactured under ISO9001, HACCP, ISO14000, and other quality management systems.
| Parameter | Value |
|---|---|
| Evaporation Capacity | 70 TPH |
| Number of Effects | 3 |
| Body Material | Stainless Steel (304/316L) |
| Insulation Jacket | Rock wool or polyurethane foam, thickness customizable |
| Operating Temperature | Up to 120°C (depending on product) |
| Steam Consumption | Approx. 0.4 kg steam per kg water evaporated |
Benefits for Your Business
- Energy Savings: Triple-effect configuration reduces steam usage, lowering operational costs.
- Long Service Life: Stainless steel body with insulation jacket withstands harsh environments and minimizes maintenance.
- High Product Quality: Gentle evaporation at lower temperatures preserves heat-sensitive components in food and pharmaceutical applications.
- Easy Integration: Compact design with standard flanged connections simplifies installation into existing lines.
- Global Support: As a trusted manufacturer with 201–300 employees and exports to 30+ countries, we provide reliable after-sales service and spare parts.
Why Choose Conqinphi?
Since 2015, Qingdao Conqinphi Environmental Technology Group Co., Ltd. has been dedicated to designing and manufacturing advanced evaporation systems. Our facility spans over 10,000 square meters and houses a team of 201–300 skilled professionals. We hold multiple certifications including ISO9001, HACCP, ISO14000, OHSAS18001, and others, ensuring every product meets international quality standards. With an annual export value of US$10 million–US$50 million, we have successfully delivered projects to North America, South America, Europe, Africa, Oceania, and Asia. Our main port of shipment is Qingdao, providing efficient logistics worldwide.
We understand that every application is unique. That’s why we offer customization options — from heat exchanger materials to control systems — to perfectly match your process requirements. Our technical team is available for pre-sales consultation and post-installation support. Contact us today to discuss your 70 TPH evaporation needs and receive a tailored proposal with competitive pricing and fast delivery.
Frequently Asked Questions (FAQ)
-
What materials are used for the evaporator body?
The body is constructed from stainless steel, typically 304 or 316L, depending on your liquid’s corrosiveness and hygiene requirements. -
What is the insulation jacket made of?
Standard insulation is rock wool, but polyurethane foam or other materials are available upon request. The thickness can be customized to meet local climate conditions. -
Can this evaporator handle high-viscosity liquids?
Yes, the triple-effect design can be adapted with forced circulation or scraped-surface heat exchangers for viscous products. Please provide your liquid properties for a tailored solution. -
What certifications does your product hold?
Our manufacturing facility is certified under ISO9001, HACCP, ISO14000, OHSAS18001, and other management systems. Specific product certifications can be obtained as required. -
How much steam does the evaporator consume?
Typical steam consumption is about 0.4 kg of steam per kg of water evaporated, depending on operating conditions and product characteristics. -
Do you provide installation and commissioning services?
Yes, we offer on-site installation supervision and commissioning support. Our team can also train your operators to ensure smooth operation. -
What is the lead time for a 70 TPH evaporator?
Standard lead time is 8–12 weeks, depending on customization and current production schedule. Urgent orders can be discussed. -
Can I get a sample or visit the factory?
We welcome factory visits in Qingdao. For overseas customers, we can arrange virtual tours or provide detailed documentation and customer references.
