WT‑T Triple‑Tip Ultra High‑Output MAPP Gas Torch, 360° Swivel Three‑Flame Brazing Torch
1. Product Overview
The WT‑T triple‑tip ultra high‑output MAPP gas torch is part of Triple‑Tip Series built for professional technicians and B2B bulk buyers. Thisthree‑flame brazing torch adopts high‑strength stainless‑steel triple tips, special air‑intake holes for full combustion and 360‑degree swivel design. It uses CGA600 connection standard and fits 14.1‑16 OZ gas containers. Under MAPP‑gas testing, max flame temperature exceeds 3600℉. It supports soft solder up to Φ6'' copper tubing and brazing up to Φ3'' copper tubing. Enhanced total heat output plus complete air‑fuel mixing brings stable powerful three‑flame performance for ultra‑large copper‑pipe heavy‑duty soldering and brazing jobs.
2. Key Features & Highlights
Stainless‑steel triple tips, high‑temperature resistant and drop‑proof for heavy‑duty field‑site operation
Ultra high‑output three‑flame design generates vast heat output for processing extra‑large‑diameter copper tubes
Built‑in air‑intake holes draw sufficient air to realize complete gas‑air combustion for better flame efficiency
Specially‑designed control valve enables precise pressure adjustment to stabilize three‑flame intensity
Built‑in thruster accelerates gas flow and promotes gas‑air mixture for high‑temperature flame performance
Accurate machined orifice guarantees identical flame output from each tip for every WT‑T torch unit
360° full swivel triple tips support multi‑angle rotation to adapt narrow and complex confined working positions
Manual ignition design, external lighter or spark igniter required for startup
3. Core Performance Parameters
Gas Type
MAPP, Propane, LPG
Connection
CGA600
Container
For use with 14.1-16 OZ Containers
Regulator Ratings
2.59M Pa (375psi) Maximum Gas Pressure
Copper Tubing Size Capability
(With Mapp Gas)
Soft Solder: Max. Φ6"(15cm)
Brazing: Max. Φ3"(7.5cm)
Max Flame Temperature
>3600°F (tested with MAPP gas)

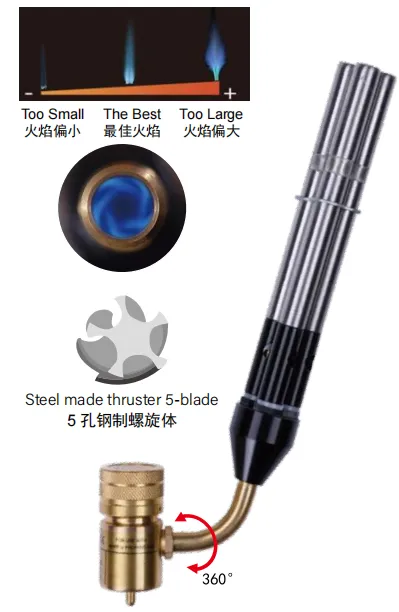

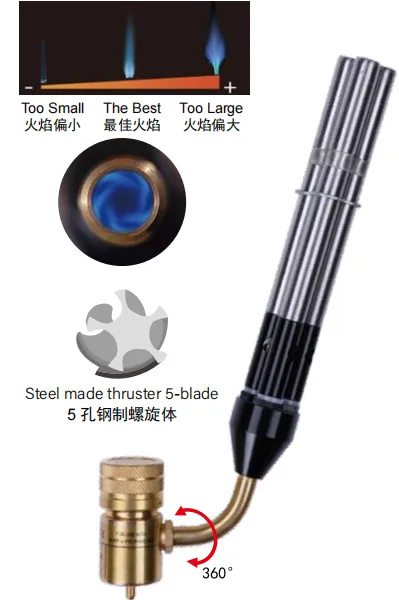

Caution
Low flame setting will result in overheat of the tip
Triple tips with exactly the same flame each tip generate vast heat to weld bigger tubes
Specially designed valve to adust pressure precisely
Thruster to speed up the gas flow and complete mixture for high temperature
Accurate orifice size to make sure every torch has the same flame
Air intake holes to intake vast air for complete burning
Tips spin 360°
4. Wide Application Scenarios

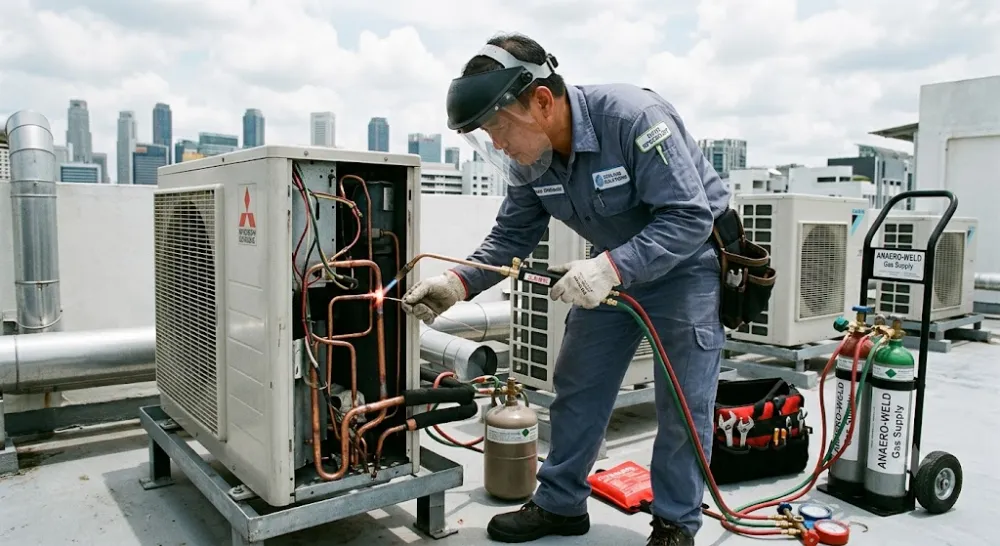

HVAC sector: extra‑large‑diameter copper‑pipe soldering & brazing for large air‑conditioning and refrigeration equipment maintenance
Jewelry processing: bulk large‑workpiece precious‑metal heating and soldering operations

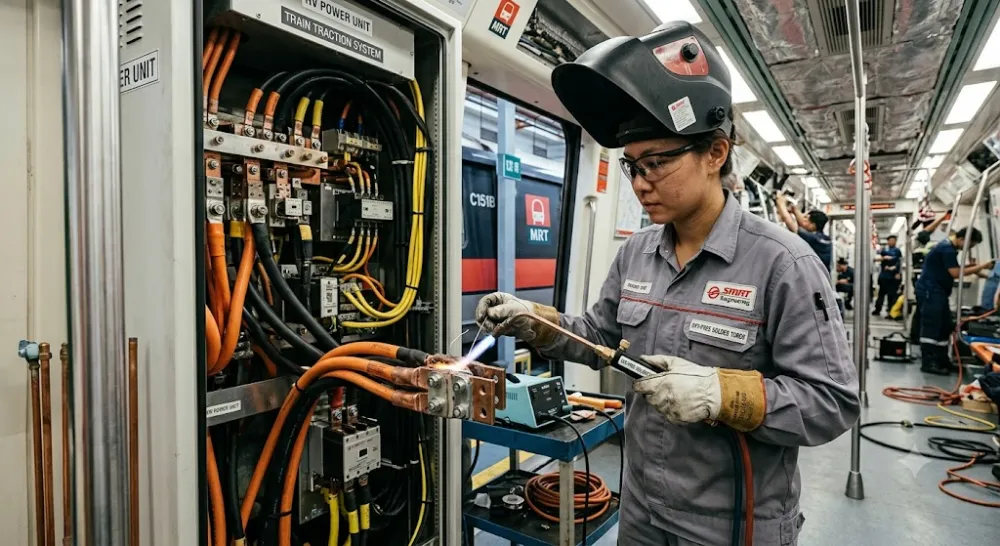

Electrical industry: extra‑thick metal component soldering and heavy‑joint connection work
Transportation industry: heavy‑duty vehicle metal repair and over‑size brazing assignments
5. FAQ
Q1: What fuel sources work for WT‑T triple‑tip ultra high‑output MAPP gas torch?
A: It supports MAPP gas, Propane gas and LPG gas. MAPP gas delivers max flame temperature over 3600℉.
Q2: Which gas canister fits this three‑flame brazing torch?
A: It follows CGA600 connection standard and is compatible with 14.1‑16 OZ standard gas containers.
Q3: What copper‑pipe sizes can WT‑T solder and braze?
A: Soft solder supports max Φ6'' copper tubing; brazing supports max Φ3'' copper tubing for extra‑large‑pipe HVAC projects.
Q4: What is the function of air‑intake holes?
A: Air‑intake holes draw ample ambient air to achieve complete gas‑air combustion and improve overall flame efficiency.
Q5: Do I need an extra lighter for ignition?
A: Yes, WT‑T is manual‑ignition torch; external lighter or spark igniter is needed for startup.
Q6: Can triple‑tips swivel during operation?
A: Yes, stainless‑steel triple tips support full 360‑degree swivel for complex confined working angles.
Q7: Will three tips output balanced identical flame?
A: Precision‑machined orifice ensures consistent three‑flame output for each WT‑T torch unit.
