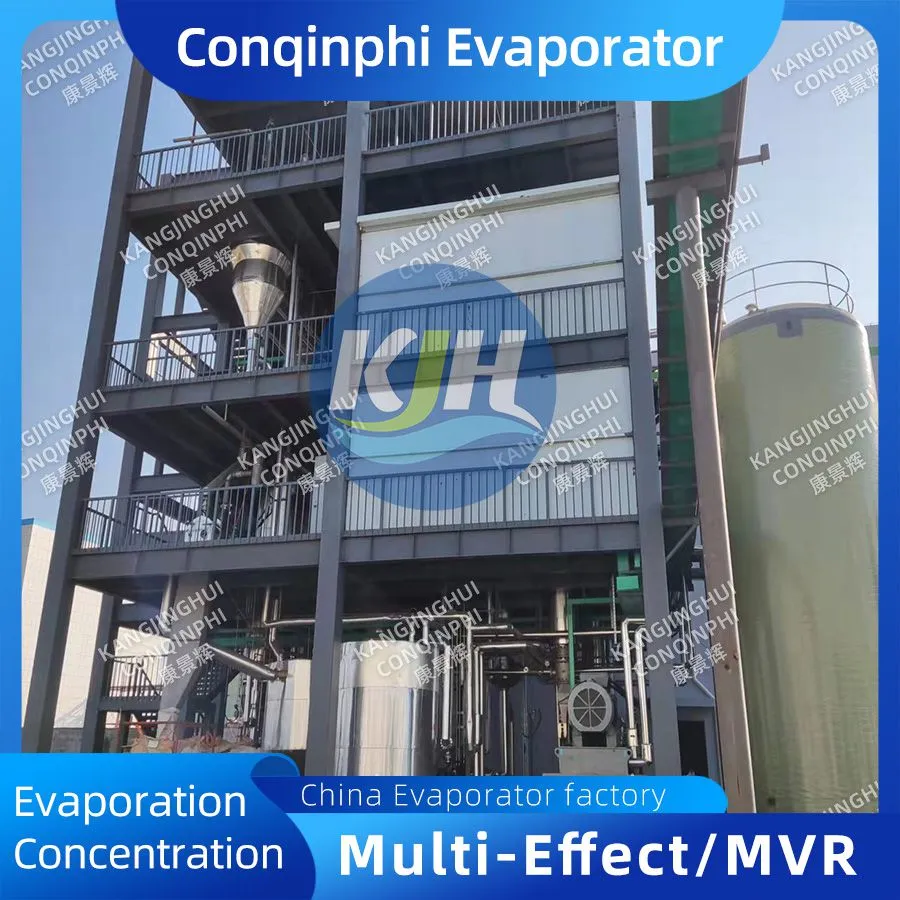

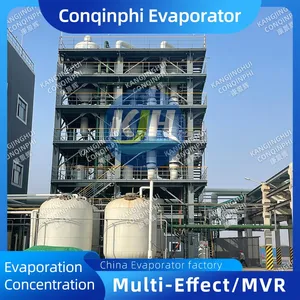

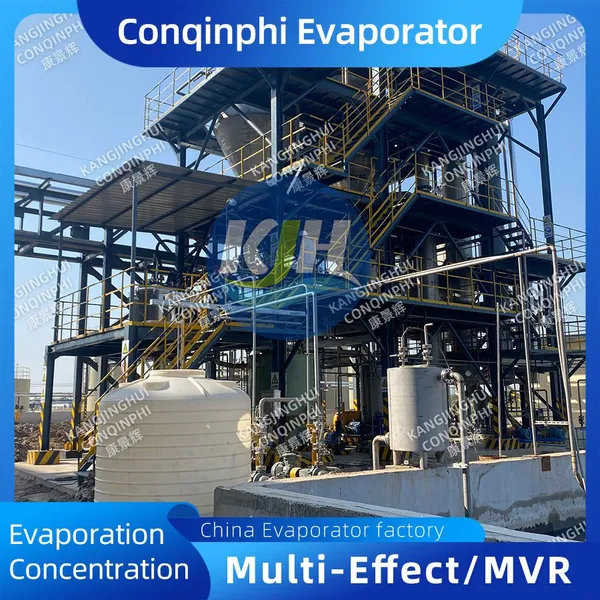

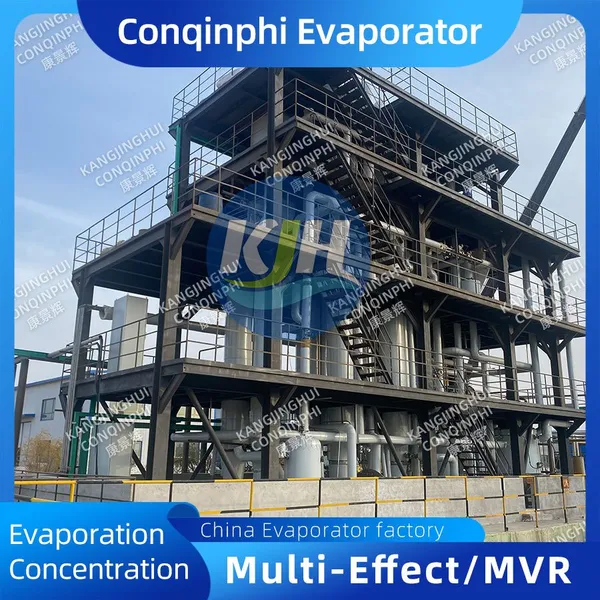

70 TPH Triple-Effect Evaporation System Multi-Stage Flash With CIP Cleaning System
Product Spotlights
High-efficiency 70 TPH triple-effect multi-stage flash evaporation system with integrated CIP cleaning. Reduces steam consumption by 60%, automates cleaning, and handles corrosive or high-salinity feeds. Customizable materials, PLC control, and global support from a certified manufacturer with 200+ employees and US$10M+ annual exports.
US$ 750 - 879000
MOQ: 1 Combo
Key Specifications
Get Latest Price
Type:
Other, Triple-Effect Multi-Stage Flash
Capacity:
70 TPH
Cleaning System:
CIP (Clean-in-Place)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
60 days
Related Products
-
70 TPH Triple-Effect Evaporator Stainless Steel Evaporator Body With Insulation JacketUS$ 750 - 879000MOQ: 1 Combo -
70 TPH Triple-Effect Evaporator With Automatic Operation and Energy-Saving Design ≤0.1MPaUS$ 750 - 879000MOQ: 1 Combo
-
70 TPH Triple-Effect Evaporation System With 1-Year Warranty and On-Site CommissioningUS$ 750 - 879000MOQ: 1 Combo
-
70 TPH Triple-Effect Evaporation System for Chemical Wastewater Concentration and RecoveryUS$ 750 - 879000MOQ: 1 Combo
-
70 TPH Triple-Effect Evaporation System 304 Stainless Steel PLC Control 220V/380VUS$ 750 - 879000MOQ: 1 Combo
Type
Other, Triple-Effect Multi-Stage Flash
Capacity
70 TPH
Cleaning System
CIP (Clean-in-Place)
Material
Stainless Steel (customizable)
Application
Wastewater treatment, desalination, chemical processing
Operation Mode
Continuous
Energy Efficiency
High (triple-effect design)
Control System
PLC-based (optional)
Qingdao Conqinphi Environmental Technology Group Co., Ltd., a leading manufacturer established in 2015 with a factory spanning 10,000–30,000 square meters and an annual export value exceeding US$10 million, proudly presents the 70 TPH Triple-Effect Evaporation System Multi-Stage Flash with CIP Cleaning System. This advanced evaporation solution is designed to deliver high-efficiency concentration and separation for industrial wastewater, desalination, and chemical processing. Built with triple-effect technology and multi-stage flash design, it significantly reduces energy consumption while maximizing throughput. The integrated CIP (Clean-in-Place) system ensures minimal downtime and consistent performance, making it a reliable choice for large-scale operations.
Key Features & Benefits
- Triple-Effect Design: Utilizes three stages of heat recovery, cutting steam consumption by up to 60% compared to single-effect systems. This translates to lower operational costs and a smaller carbon footprint.
- Multi-Stage Flash Evaporation: Ensures gentle, efficient separation of volatile components, ideal for heat-sensitive liquids and high-salinity feeds. The flash stages minimize scaling and fouling.
- 70 TPH Capacity: Handles large volumes of feed water or wastewater, suitable for municipal, industrial, and mining applications. The system can be customized to meet specific flow requirements.
- Integrated CIP Cleaning System: Automatically cleans internal surfaces without disassembly, reducing maintenance time and chemical usage. This feature is critical for industries requiring strict hygiene and consistent product quality.
- Robust Construction: Made from high-grade stainless steel with optional corrosion-resistant coatings, ensuring long service life even in aggressive environments. The system is designed for 24/7 continuous operation.
- PLC-Based Control (Optional): Equipped with an intuitive human-machine interface (HMI) for real-time monitoring of temperature, pressure, flow rate, and conductivity. Remote access and data logging are available upon request.
- Compliance with International Standards: Manufactured under ISO9001, ISO14000, and OHSAS18001 certified facilities, with optional HACCP and SA8000 compliance. All welds and materials meet ASME and PED requirements.
Technical Specifications
| Parameter | Value |
| Evaporation Capacity | 70 tons per hour (TPH) |
| Number of Effects | 3 (Triple-Effect) |
| Flash Stages | Multi-stage (customizable from 2 to 5 stages) |
| Operating Temperature | 60°C – 120°C (first effect) |
| Operating Pressure | Atmospheric to negative pressure (vacuum) |
| Steam Consumption | Approximately 0.35–0.45 kg steam per kg of evaporated water |
| Material of Construction | SS304 / SS316L (customizable) |
| CIP System | Automated, with spray balls and recirculation pump |
| Power Supply | 380V/50Hz or 480V/60Hz (optional) |
| Control System | PLC + HMI (touchscreen) |
Advantages for Your Business
- Lower Energy Costs: The triple-effect heat recovery reduces steam consumption, meaning you spend less on utilities. For a 70 TPH system, annual savings can reach hundreds of thousands of dollars.
- Minimal Downtime: The CIP system performs automatic cleaning in 1–2 hours, allowing you to resume production quickly. Manual cleaning is eliminated, improving safety and labor efficiency.
- High Recovery Rate: Achieve up to 98% water recovery from wastewater, minimizing discharge and complying with zero-liquid discharge (ZLD) regulations.
- Durable & Reliable: Our factory has over 8 years of experience in manufacturing evaporation systems, and we use only certified materials. The system is tested under full load before shipment.
- Global Support: With exports to North America, Europe, Southeast Asia, Africa, and Oceania, we provide on-site installation, commissioning, and training. Our spare parts inventory ensures quick replacement.
Trust & Credibility
Since 2015, Qingdao Conqinphi Environmental Technology Group has grown into a 200+ employee enterprise with a 10,000–30,000 m² manufacturing facility. Our annual export value exceeds US$10–50 million, serving 15+ markets worldwide. We hold multiple certifications including ISO9001, ISO14000, OHSAS18001, HACCP, and SA8000, ensuring that every product meets rigorous quality and safety standards. Our triple-effect evaporation systems have been successfully deployed in industries such as chemical processing, food & beverage, mining, and municipal wastewater treatment. We invite you to contact us for a detailed proposal or to arrange a factory visit. Our engineering team is ready to customize a solution that fits your specific needs.
Frequently Asked Questions
-
Q: What is the typical delivery time for a 70 TPH triple-effect evaporation system?
A: Standard delivery is 8–12 weeks from order confirmation, depending on customization. We can accelerate for urgent projects. -
Q: Can the system handle high-salinity brine or corrosive liquids?
A: Yes, we offer SS316L, duplex stainless steel, or titanium construction for corrosive environments. The multi-stage flash design reduces scaling risk. -
Q: How does the CIP cleaning system work?
A: The CIP system automatically circulates cleaning solution (e.g., caustic or acid) through the evaporation chambers and flash stages, using spray balls to ensure complete coverage. The cycle is programmable and can be scheduled. -
Q: What is the required steam pressure for operation?
A: Typically, saturated steam at 6–10 bar (g) is recommended. We can adapt the system to lower or higher pressures if needed. -
Q: Do you provide installation and training?
A: Yes, we offer on-site supervision of installation, commissioning, and operator training. Remote support is also available via video call. -
Q: What is the warranty period?
A: Standard warranty is 12 months from commissioning or 18 months from shipment, whichever comes first. Extended warranties are available. -
Q: Can the system be integrated with existing plant automation?
A: Yes, our PLC supports Modbus, Profibus, and Ethernet/IP protocols. We can customize the control system to match your DCS or SCADA. -
Q: How do I determine the right number of flash stages for my application?
A: Our engineering team will analyze your feed composition, temperature sensitivity, and desired concentration. A simulation is provided to optimize the stage count.
