WT‑D2SA Self‑Igniting Dual‑Tip MAPP Torch 360° Two‑Way Swivel Aluminum Igniter Torch
1. Product Overview
The WT‑D2SA self‑igniting dual‑tip MAPP torch belongs to Dual‑Tip Series for professional technicians and B2B bulk buyers. This upgraded twin‑flame gas torch combines impact‑resistant aluminum igniter housing and 360° two‑way swivel stainless‑steel dual tips. It adopts CGA600 connection standard and fits 14.1‑16 OZ gas containers. Under MAPP‑gas testing, max flame temperature exceeds 3600℉. It supports soft solder up to Φ4'' copper tubing and brazing up to Φ2'' copper tubing. Integrated self‑ignition plus balanced twin‑flame output greatly improves efficiency for heavy‑duty large‑size copper‑pipe soldering and brazing jobs.
2. Key Features & Highlights
Stainless‑steel dual tips, high‑temperature resistant and drop‑proof for heavy‑duty field‑site usage
Robust aluminum igniter housing for improved durability and shock‑resistance in harsh working conditions
Dual‑tip balanced twin‑flame generates higher heat output to process larger‑diameter copper tubes
Specially‑designed control valve enables precise pressure adjustment for stable twin‑flame intensity control
Built‑in thruster accelerates gas flow and completes gas‑air mixing for high‑temperature flame performance
Accurate machined orifice guarantees identical flame output from each tip for every WT‑D2SA torch unit
Unique 360° two‑way swivel dual tips for bidirectional rotation to adapt confined‑space working angles
Integrated self‑ignition mechanism, no external lighter or spark igniter required for startup
3. Core Performance Parameters
Gas Type |
MAPP, Propane, LPG |
Connection |
CGA600 |
Container |
For use with 14.1-16 OZ Containers |
Regulator Ratings |
2.59M Pa (375psi) Maximum Gas Pressure |
|
Copper Tubing Size Capability (With Mapp Gas) |
Soft Solder: Max. Φ4"(10cm) |
Brazing: Max. Φ2"(5cm) | |
Max Flame Temperature |
>3600°F (tested with MAPP gas) |
Caution |
Low flame setting will result in overheat of the tip |

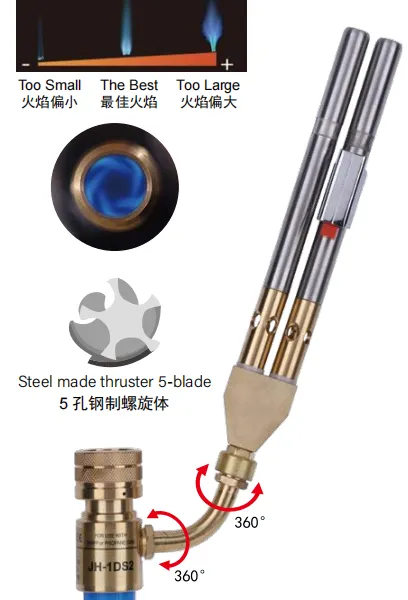

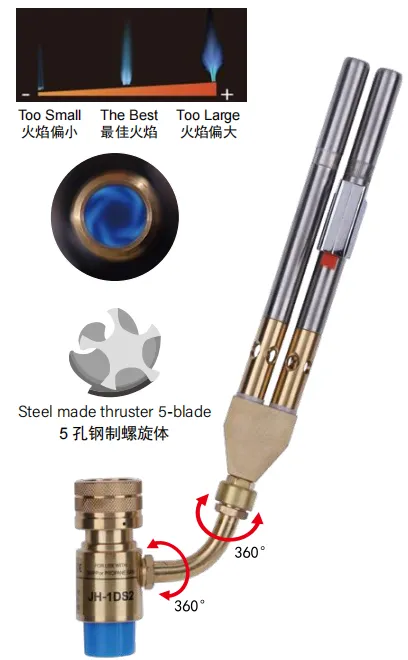

Dual tips with exactly the same flame each tip generate more heat to weld bigger tubes
Specially designed valve to adust pressure precisely
Thruster to speed up the gas flow and complete mixture for high temperature
Accurate orifice size to make sure every torch has the same flame
Tips spin 360°in two directions
4. Wide Application Scenarios

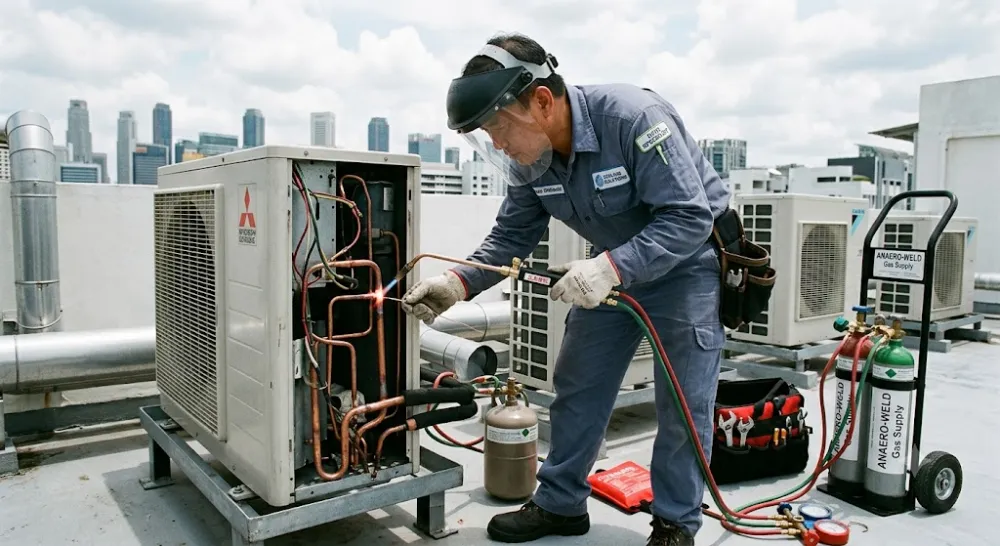

HVAC sector: large‑diameter copper‑pipe soldering & brazing for air‑conditioning and refrigeration systems
Jewelry processing: bulk precious‑metal heating and soldering operations
Electrical industry: thick metal component soldering and connection work
Transportation industry: heavy‑duty vehicle metal repair and large‑joint brazing assignments
5. FAQ
Q1: What fuel sources work for WT‑D2SA self‑igniting dual‑tip MAPP torch?
A1: It supports MAPP gas, Propane gas and LPG gas. MAPP gas delivers max flame temperature over 3600℉.
Q2: Which gas canister fits this two‑way swivel dual‑tip torch?
A2: It follows CGA600 connection standard and is compatible with 14.1‑16 OZ standard gas containers.
Q3: What copper pipe sizes can WT‑D2SA solder and braze?
A3: Soft solder supports max Φ4'' copper tubing; brazing supports max Φ2'' copper tubing for large‑pipe HVAC tasks.
Q4: What benefits come with aluminum igniter housing?
A4: Aluminum igniter housing offers light‑weight, impact‑resistance and enhanced durability for heavy‑site operations.
Q5: Do I need extra lighter for ignition?
A5: No. WT‑D2SA adopts self‑igniting mechanism for instant ignition without extra ignition tools.
Q6: Can dual tips rotate in two directions?
A6: Yes, dual stainless‑steel tips support full 360‑degree two‑way swivel for complex and confined working spots.
Q7: Will two tips maintain consistent flame output?
A7: Precision‑machined orifice ensures balanced identical twin‑flame output for each WT‑D2SA torch unit.
