WT‑D1A Self‑Igniting Dual‑Tip MAPP Gas Torch 360° Swivel Twin Burner Pipe Welding Torch
1. Product Overview
The WT‑D1A self‑igniting dual‑tip MAPP gas torch is a member of Dual‑Tip Series for professional technicians and B2B bulk buyers. This twin‑burner pipe welding torch adopts impact‑resistant aluminum housing and 360‑degree swivel stainless‑steel dual tips. It uses CGA600 connection standard and fits 14.1‑16 OZ gas containers. MAPP‑gas testing delivers max flame temperature over 3600℉. It supports soft solder up to Φ4'' copper tubing and brazing up to Φ2'' copper tubing. Integrated self‑ignition plus balanced twin‑burner flame improves working efficiency for heavy‑duty large‑size copper‑pipe soldering and brazing jobs.
2. Key Features & Highlights
Stainless‑steel dual tips, high‑temperature‑resistant and drop‑proof for heavy‑duty field‑site usage
Robust aluminum housing for improved shock‑resistance and long‑term service life under harsh operating conditions
Dual‑tip twin‑burner produces balanced twin‑flame for higher heat output to process larger‑diameter copper pipes
Specially‑designed control valve enables precise pressure adjustment for stable twin‑flame intensity control
Built‑in thruster accelerates gas flow and completes gas‑air mixing for consistent high‑temperature flame performance
Accurate machined orifice guarantees identical flame output from each tip for every WT‑D1A torch unit
360° full swivel dual tips support multi‑angle rotation to adapt narrow and confined working positions
Integrated self‑ignition mechanism, no external lighter or spark igniter required for quick startup
3. Core Performance Parameters
Gas Type |
MAPP, Propane, LPG |
Connection |
CGA600 |
Container |
For use with 14.1-16 OZ Containers |
Regulator Ratings |
2.59M Pa (375psi) Maximum Gas Pressure |
|
Copper Tubing Size Capability (With Mapp Gas) |
Soft Solder: Max. Φ4"(10cm) |
Brazing: Max. Φ2"(5cm) | |
Max Flame Temperature |
>3600°F (tested with MAPP gas) |
Caution |
Low flame setting will result in overheat of the tip |

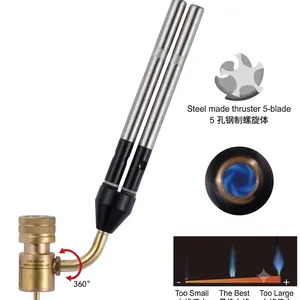

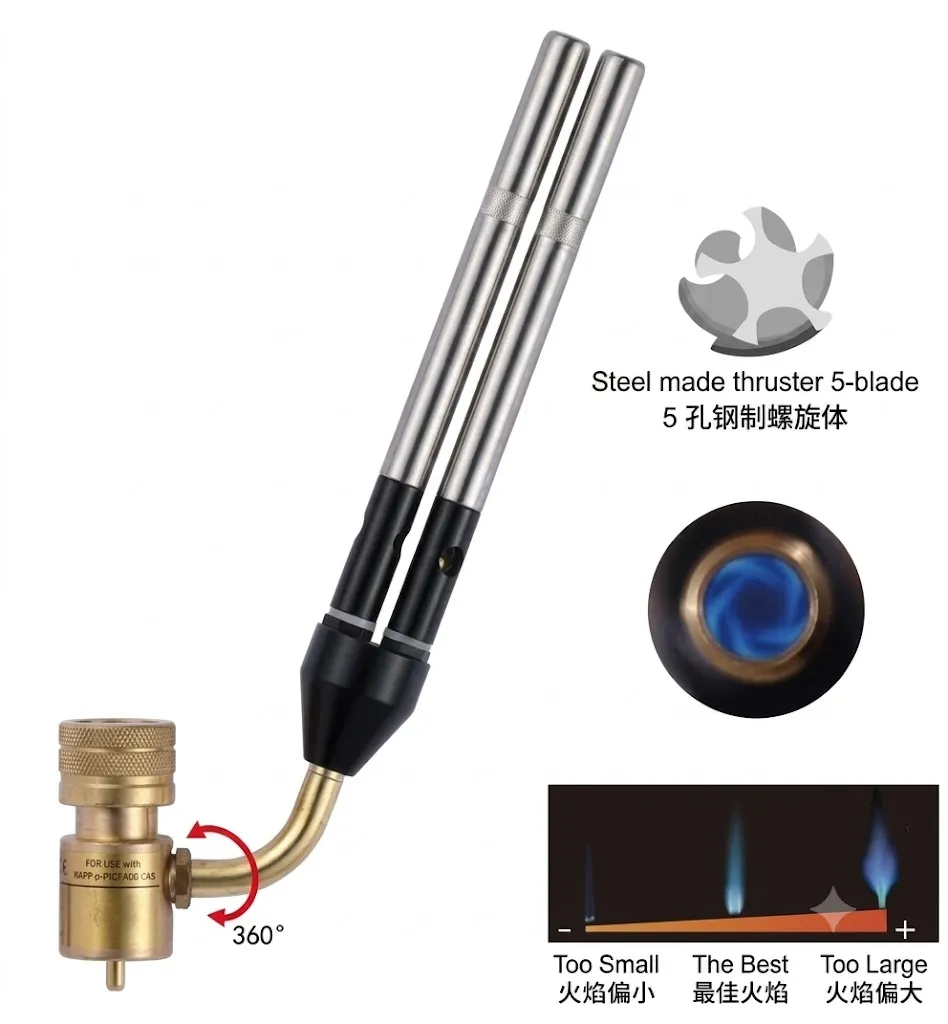

Dual tips with exactly the same flame each tip generate more heat to weld bigger tubes
Specially designed valve to adust pressure precisely
Thruster to speed up the gas flow and complete mixture for high temperature
Accurate orifice size to make sure every torch has the same flame
Tips spin 360°
4. Wide Application Scenarios
HVAC sector: large‑diameter copper‑pipe soldering & brazing for air‑conditioning and refrigeration system maintenance
Jewelry processing: bulk precious‑metal heating and soldering operations
Electrical industry: thick metal component soldering and connection work
Transportation industry: heavy‑duty vehicle metal repair and large‑joint brazing assignments
5. FAQ
Q1: What fuel sources work for WT‑D1A self‑igniting dual‑tip MAPP gas torch?
A: It supports MAPP gas, Propane gas and LPG gas. MAPP gas delivers max flame temperature over 3600℉.
Q2: Which gas canister fits this twin‑burner pipe welding torch?
A: It follows CGA600 connection standard and is compatible with 14.1‑16 OZ standard gas containers.
Q3: What copper‑pipe sizes can WT‑D1A solder and braze?
A: Soft solder supports max Φ4'' copper tubing; brazing supports max Φ2'' copper tubing for large‑pipe HVAC work.
Q4: What is the advantage of twin‑burner dual‑tip design?
A: Twin‑burner dual‑tip creates higher total heat output, speeds‑up brazing for large‑diameter copper pipes.
Q5: Do I need extra lighter for ignition?
A: No. WT‑D1A adopts self‑igniting mechanism for instant ignition without extra spark‑ignition tools.
Q6: Can dual‑tips swivel during operation?
A: Yes, dual stainless‑steel tips support full 360‑degree swivel to handle complex confined working angles.
Q7: Will two burner tips deliver consistent flame?
A: Precision‑machined orifice ensures balanced identical flame output for both tips on each WT‑D1A unit.
